Wisdom Audio Sage Series P20
Available to Order
Contact UsThe compact vertical point source of the Sage Series — a five-octave planar driver over two 6-inch woofers, 200 W continuous, 40 Hz to 20 kHz.
Product Details
Description
The P20 is the compact vertical point source in the Sage Series — one planar magnetic driver covering five octaves, with two 6-inch high operating pressure woofers beneath it. Continuous power handling is 200 watts and response runs 40 Hz to 20 kHz within 2 dB of the target curve.
Its role in a system is usually surrounds or a smaller room, and the argument for spending Sage money there is timbre matching. A surround built from the same planar driver technology as the mains follows a pan across the room without the tonal shift that gives away a conventional cone-and-dome surround.

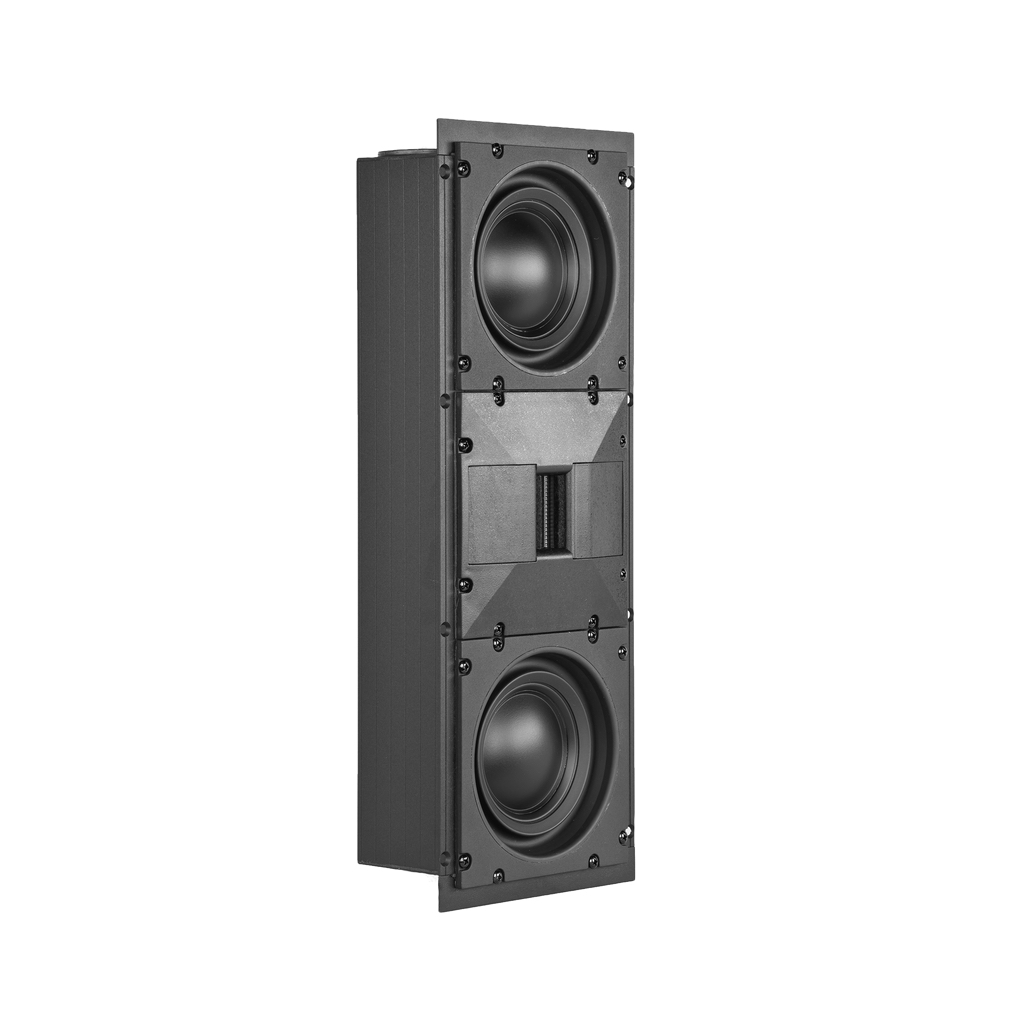

Offered free-standing, in-wall as the P20i and on-wall as the P20m, all mixable within one installation. Two amplifier channels and outboard DSP are required, in common with the rest of the Sage Series.
Featured Specs
Type
Point source, vertical orientation
Drivers
Planar magnetic driver covering five octaves and two 6-inch woofers
Frequency Response
40 Hz – 20 kHz, plus or minus 2 dB
Impedance
Planar 3 ohms · woofer section 5 ohms
Power Handling
200 W continuous
Configurations
P20i in-wall · P20m on-wall · P20 free-standing
General Specs
Series
Sage Series
Type
Point source — in-wall, on-wall or free-standing, vertical
Drivers
One planar magnetic driver covering five octaves, two 6-inch high operating pressure woofers
Frequency Response
40 Hz – 20 kHz ± 2 dB relative to the target curve
Impedance, Planar Section
3 ohms
Impedance, Woofer Section
5 ohms
Sensitivity
87 dB / 2.83 V / 1 m, both sections
Power Handling, Continuous
200 W
Amplifier Channels Required
2
Processing
Outboard active crossover and DSP required
Finishes
Custom colours and lengths on P20 and P20m, custom length grilles on P20i, anodized trim bezels
Finishes
