Contact UsThe smallest centre channel in the Sage Series — a horizontal point source with a five-octave planar driver and two 6-inch woofers, 40 Hz to 20 kHz.
Product Details
Description

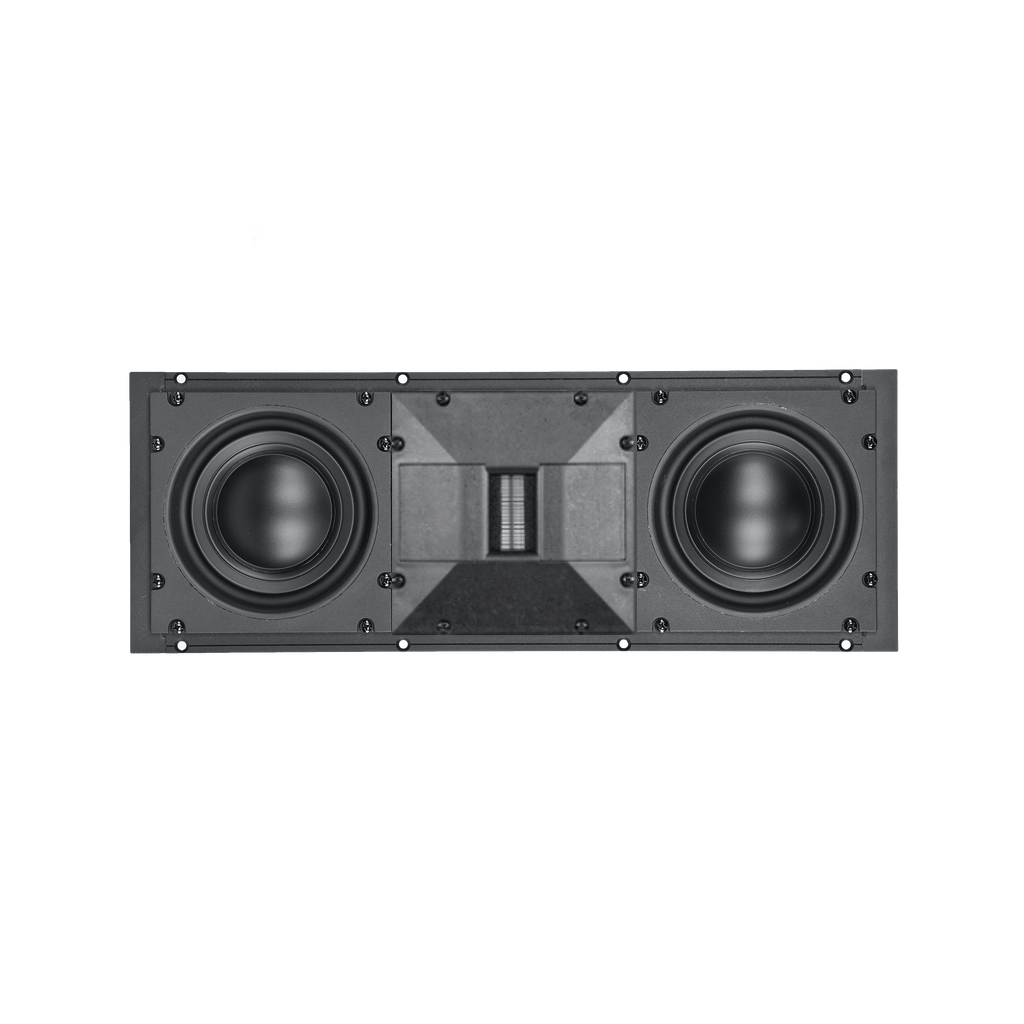

The C20 is the horizontal version of the P20 and the smallest centre channel in the Sage Series — a planar magnetic driver covering five octaves with two 6-inch high operating pressure woofers, in an enclosure sized to fit under a screen or a wall-mounted display.
Wisdom publishes the off-axis figure, which is the number that actually matters on a horizontal loudspeaker: 40 Hz to 15 kHz within 2 dB at thirty degrees off the horizontal axis, against 40 Hz to 20 kHz on axis. That is a real and honest disclosure of how far the treble falls away toward the outside seats, and it is more than most manufacturers will put in print.
Continuous power handling is 200 watts, and two amplifier channels plus outboard DSP are required. Available in-wall as the C20i, on-wall as the C20m and free-standing as the C20.
Featured Specs
Type
Point source, horizontal orientation
Drivers
Planar magnetic driver covering five octaves and two 6-inch woofers
Frequency Response
40 Hz – 20 kHz ± 2 dB · 40 Hz – 15 kHz ± 2 dB at 30 degrees off horizontal axis
Impedance
Planar 3 ohms · woofer section 5 ohms
Power Handling
200 W continuous
Configurations
C20i in-wall · C20m on-wall · C20 free-standing
General Specs
Series
Sage Series
Type
Point source — in-wall, on-wall or free-standing, horizontal
Drivers
One planar magnetic driver covering five octaves, two 6-inch high operating pressure woofers
Frequency Response
40 Hz – 20 kHz ± 2 dB relative to the target curve
Frequency Response, 30° Off Horizontal Axis
40 Hz – 15 kHz ± 2 dB relative to the target curve
Impedance, Planar Section
3 ohms
Impedance, Woofer Section
5 ohms
Sensitivity
87 dB / 2.83 V / 1 m, both sections
Power Handling, Continuous
200 W
Amplifier Channels Required
2
Processing
Outboard active crossover and DSP required
Finishes
