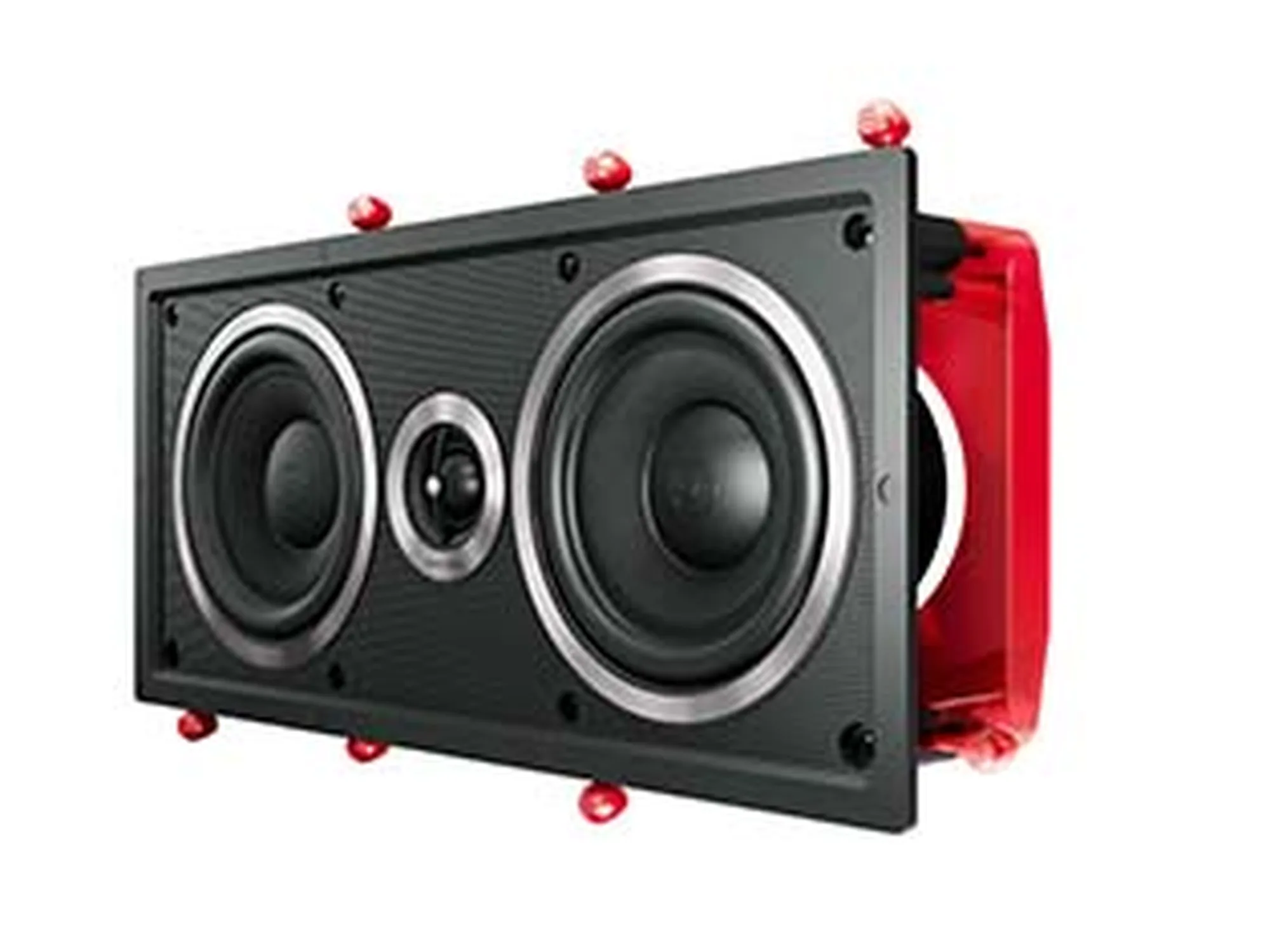

Sonus faber Palladio PL 563
Available to Order
$1,400 (each)
Contact UsLevel 5 LCR in-wall — 3-way with dedicated midrange, 6.5″ woofers; horizontal or vertical installation via reversible driver assembly.
Product Details
Description
PL 563 is the LCR (Left/Centre/Right) in-wall loudspeaker of the Palladio Level 5 Collection — a 3-way design engineered as the mid-tier front-stage anchor for custom-installation cinemas. It is the Level 5 counterpart to PL 664 in Level 6, sharing the reversible midrange/tweeter assembly that lets the same cabinet install horizontally (as a centre) or vertically (as left or right).
The driver complement is a 29 mm DAD (Damped Apex Dome) silk soft dome tweeter, a dedicated midrange driver, and 6.5-inch paper-cone woofers with natural fibre and cellulose pulp blend. Satin aluminum trim frames the drivers per the Level 5 Sonetto-derived 'Voice of Sonus faber' aesthetic. Loading is infinite baffle. Magnetic edgeless rectangular metal grille, ready to be painted. Swing-out dogs plasterboard fixing. Handcrafted in Vicenza. The correct in-wall LCR for mid-tier custom cinemas anchored on Sonetto cabinet main channels.
Featured Specs
System
3-way LCR in-wall loudspeaker — Level 5 LCR, horizontal or vertical installation
Tweeter
29 mm silk soft dome with DAD (Damped Apex Dome) technology
Midrange + Woofers
Dedicated midrange driver with 6.5" woofers — 3-way engineering in the Level 5 range
Aesthetic
Sonetto-derived 'Voice of Sonus faber' — satin aluminum trim, string pattern
General Specs
Configuration
3-way LCR in-wall loudspeaker — Level 5 LCR of the Palladio Collection; designed for horizontal or vertical installation via reversible midrange/tweeter assembly
Cabinet
Infinite-baffle in-wall (cavity-loaded); satin aluminum trims frame drivers to create 'Voice of Sonus faber' aesthetic; string pattern references Sonetto bookshelf stand design
Tweeter
29 mm silk soft dome with DAD™ (Damped Apex Dome) technology
Midrange
Dedicated midrange driver for pure 3-way topology
Woofers
6.5" (165 mm) paper cone drivers with natural fibre and cellulose pulp blend, custom Sonus faber basket — multi-driver configuration
Orientation

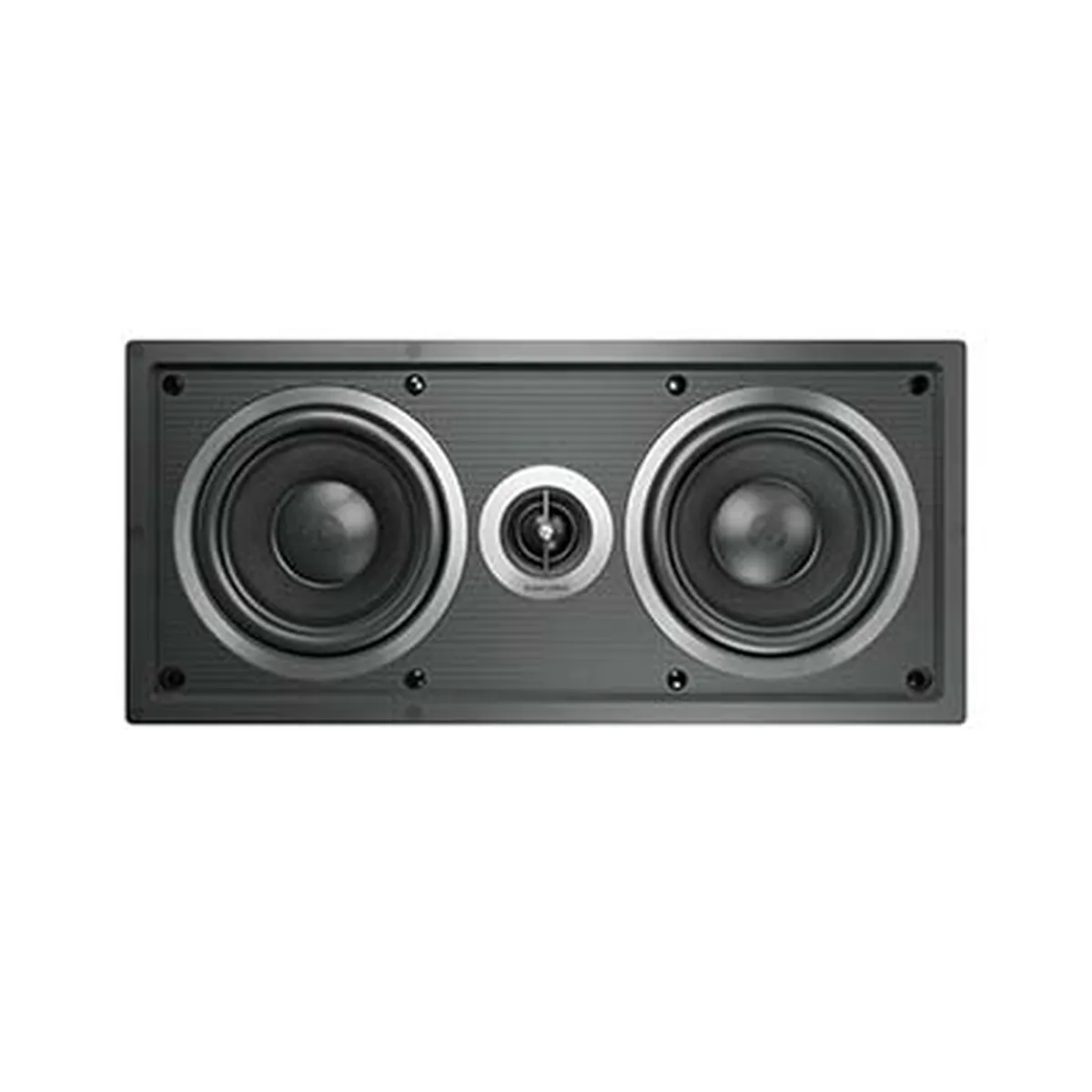

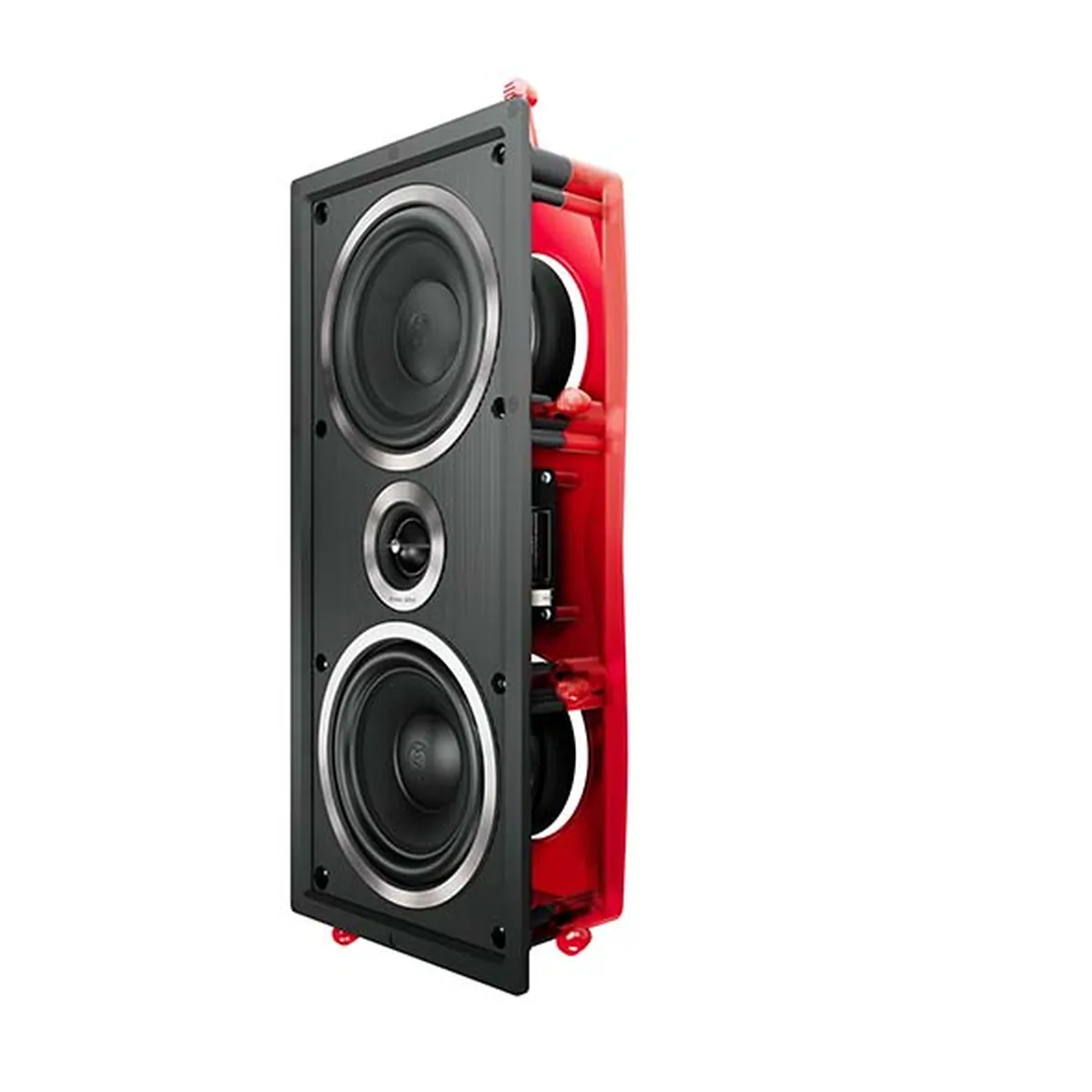

Installable horizontally (typical centre-channel) or vertically (typical left/right) by rearranging the midrange-tweeter assembly
Grille
Magnetic edgeless rectangular metal grille, ready to be painted
Fixing

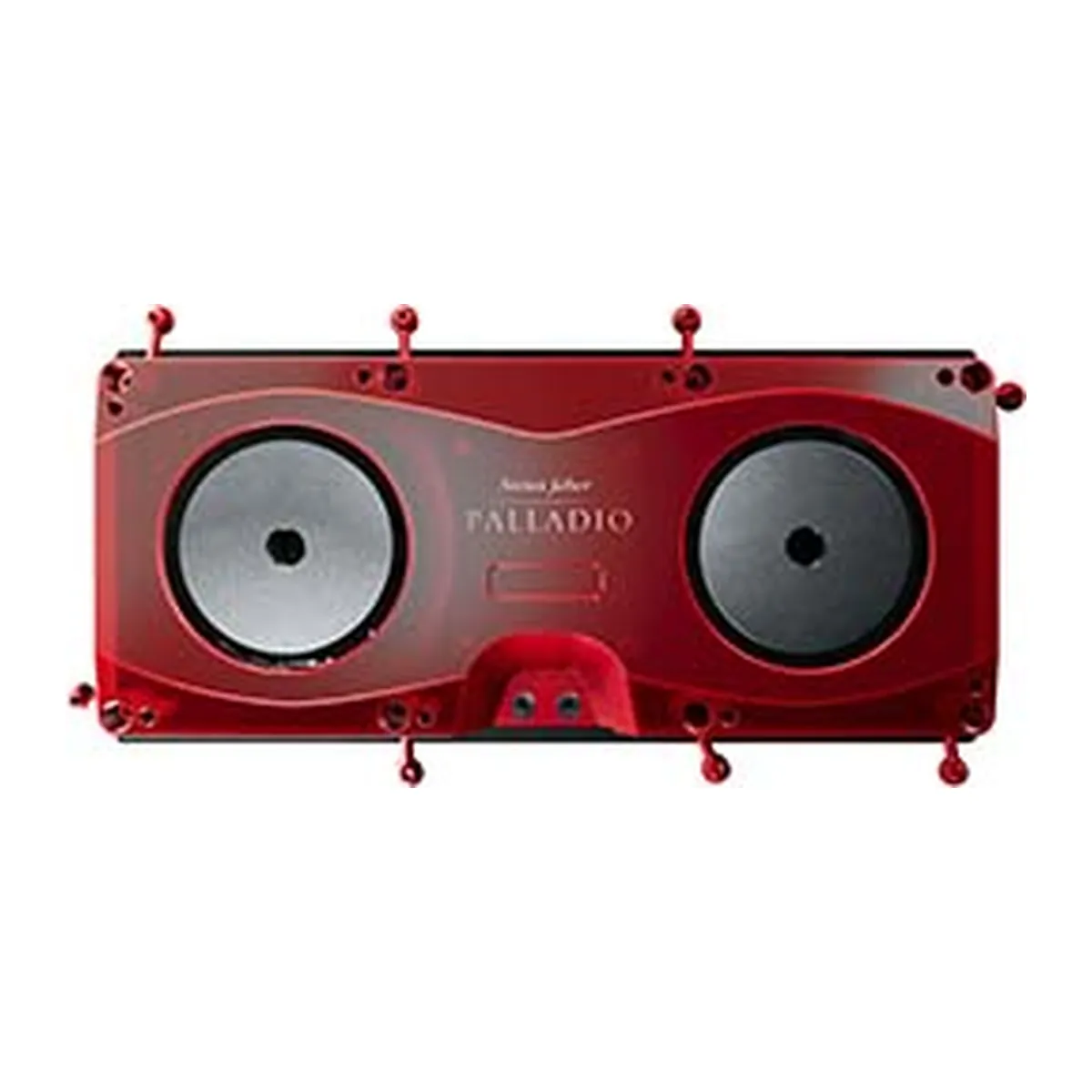

Swing-out dogs plasterboard fixing
Application
Level 5 LCR in-wall — the correct front-stage anchor for mid-tier custom-installation cinemas built around Sonetto-tier acoustic engineering
Finishes
