MBL 101 X-Treme MKIII Radialstrahler System
Available to Order · Hear It in Scottsdale
From $444,900 (pair)
Contact UsThe pinnacle Radialstrahler system — statement multi-tower MKIII refresh of MBL’s flagship 360-degree omnidirectional loudspeaker.
Product Details
Description

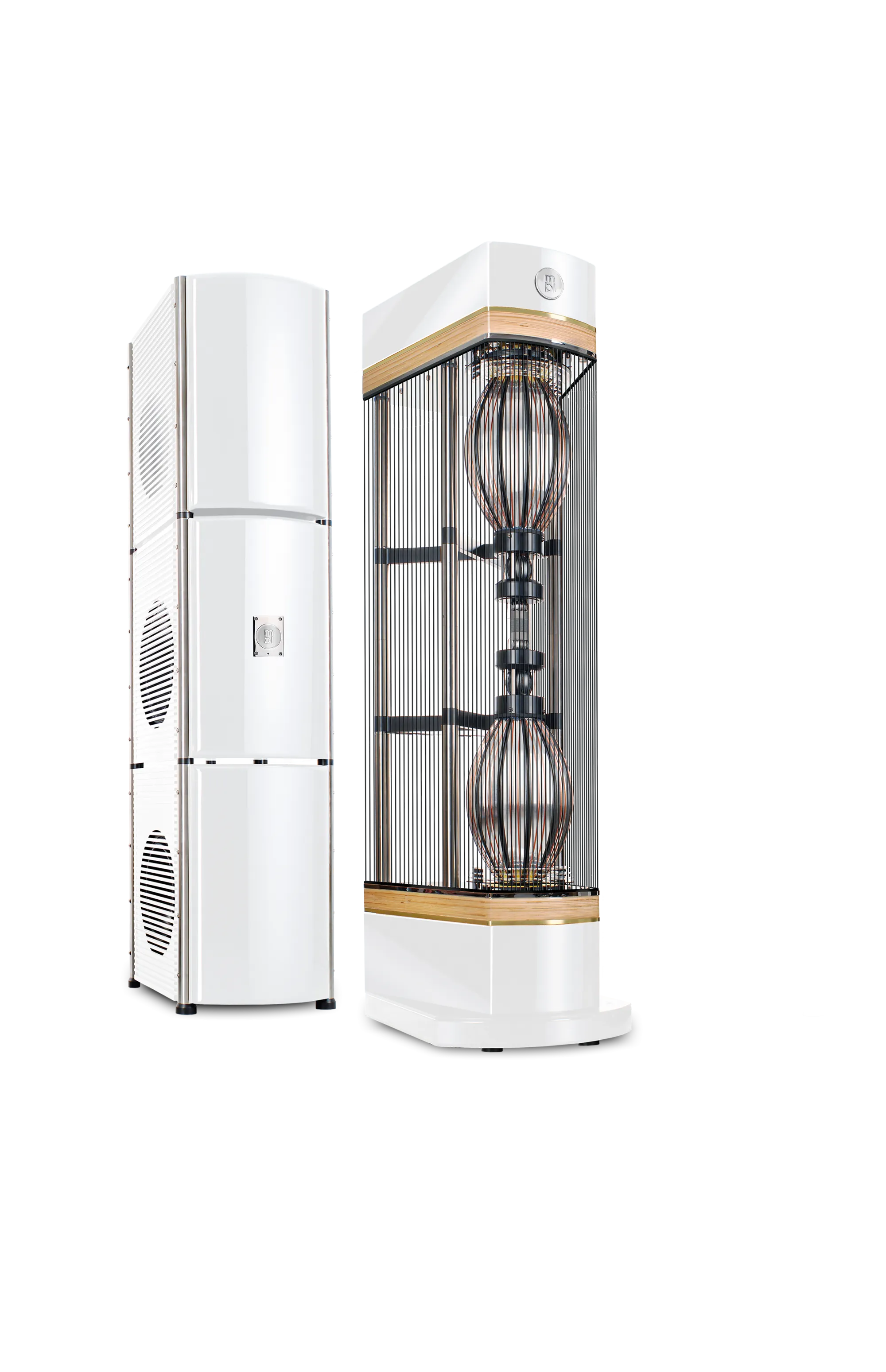

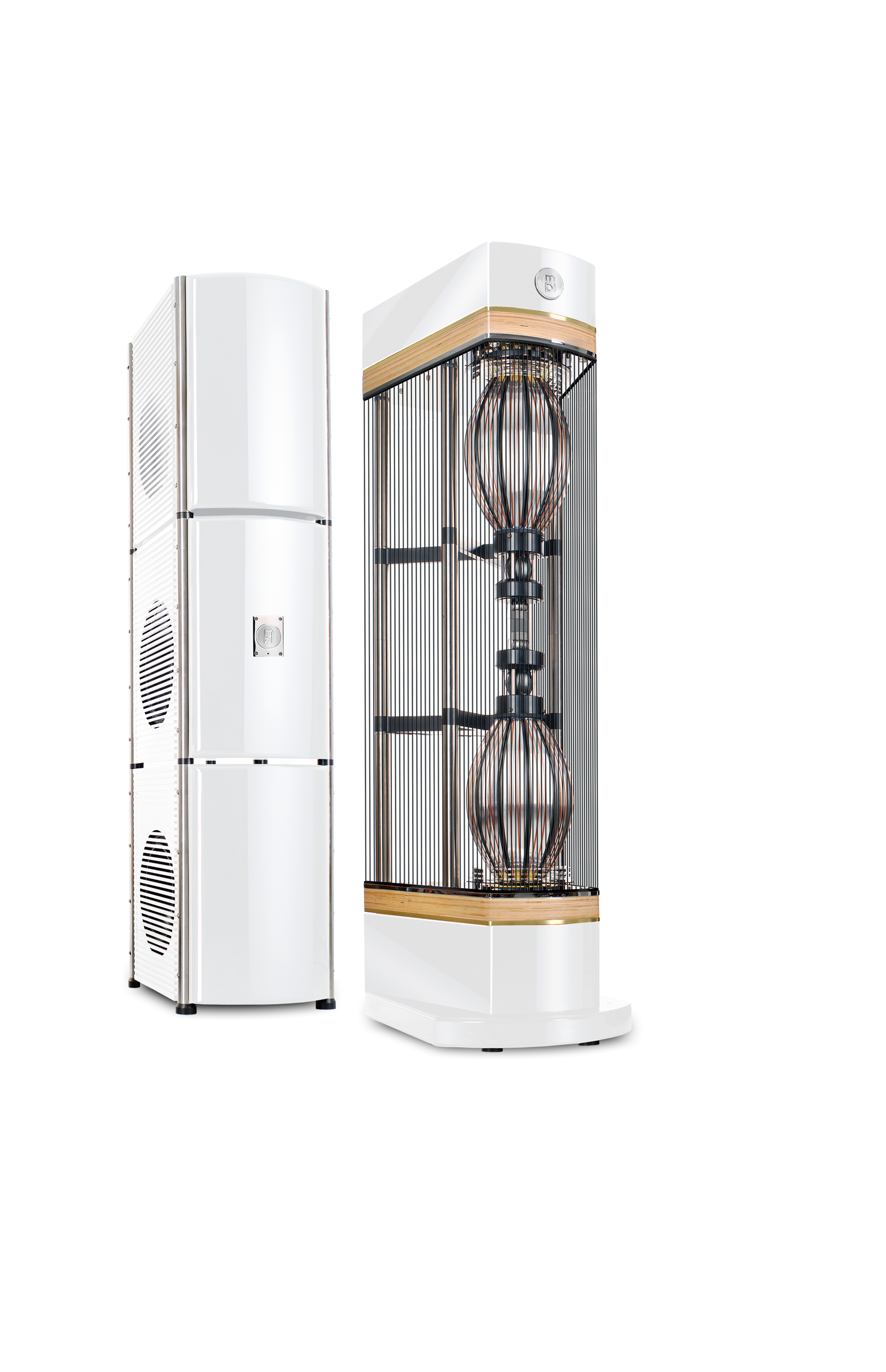

The MBL 101 X-Treme MKIII is MBL's absolute statement loudspeaker - a multi-tower Radialstrahler system that fills a room with 360-degree omnidirectional sound reproduction unlike anything conventional cone speakers can achieve. Four towers (a stereo pair of vertical Radialstrahler arrays plus a stereo pair of massive subwoofer towers) work in concert to reproduce the full spectrum of live musical performance with the acoustic authority of a concert venue.

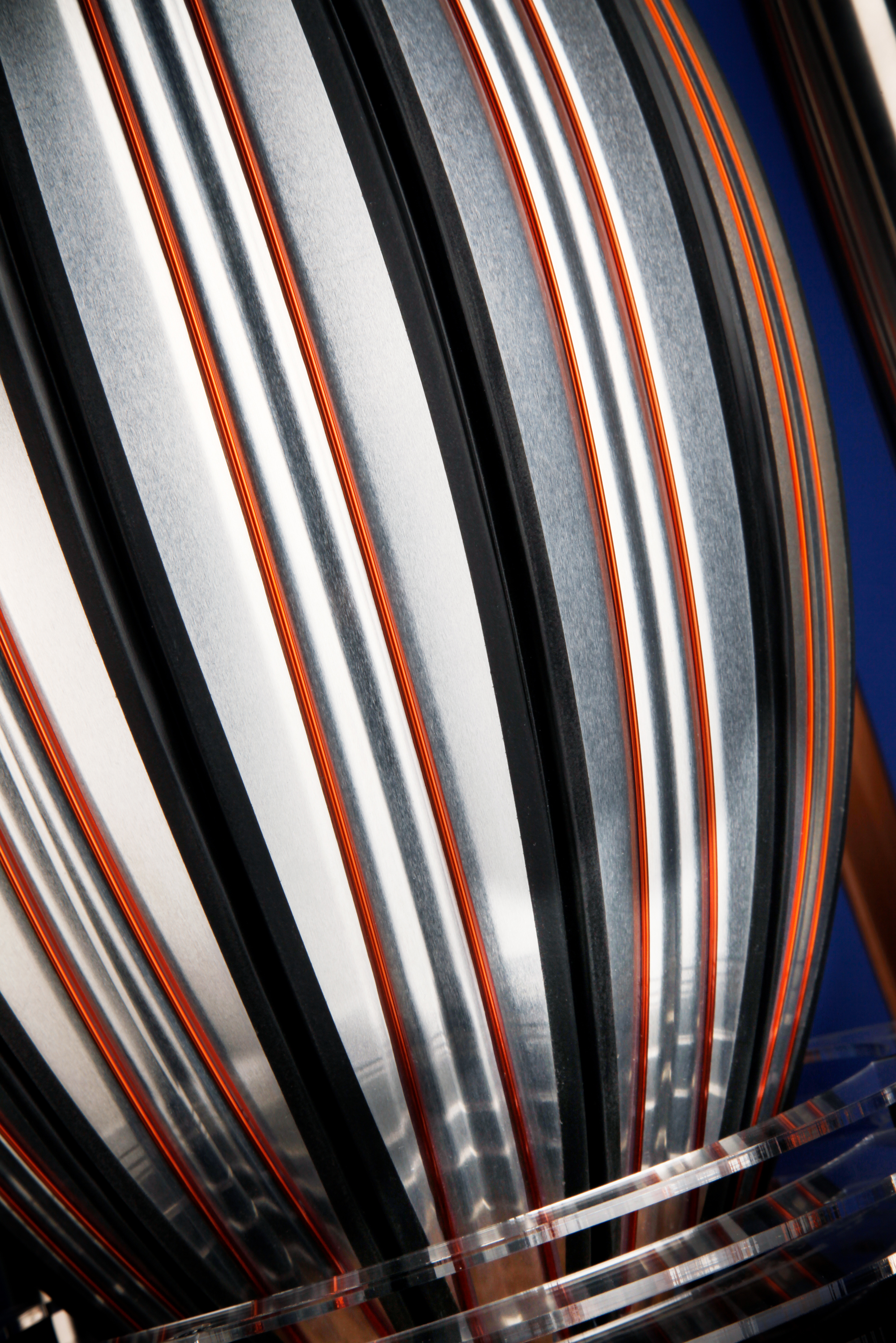

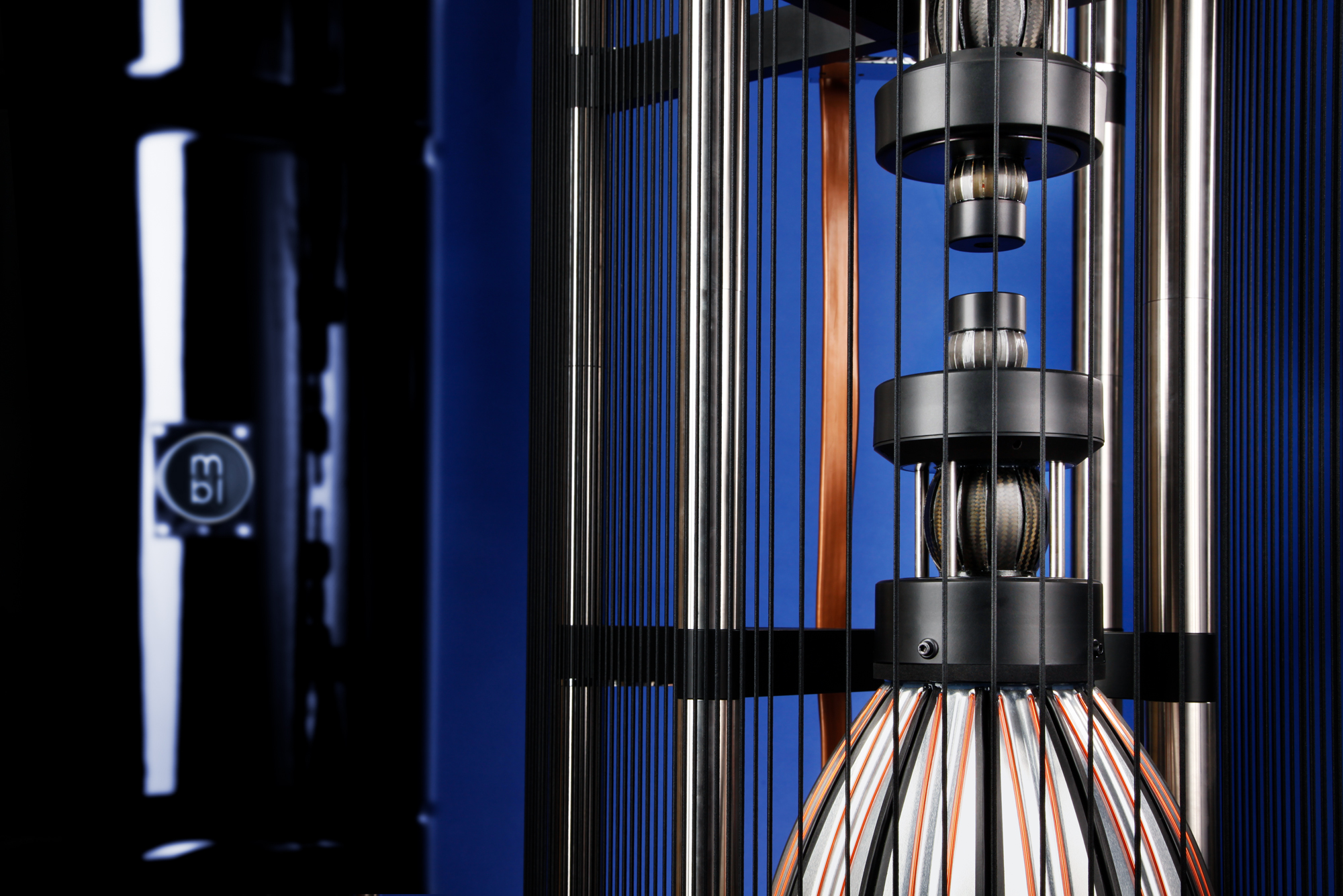

MBL's patented Radialstrahler drivers use precisely-tensioned aluminium petals arranged in a spherical geometry. As the driver flexes, it radiates sound outward in every horizontal direction simultaneously. The result is a stereo image that fills the entire listening space rather than a narrow sweet spot; multiple listeners hear the same performance from any seat in the room. The MKIII refresh incorporates MBL's latest Radialstrahler tensioning, updated crossover, and refined subwoofer integration.
A complete Reference Line system built around the 101 X-Treme MKIII (four 9011 monoblocks + 6010 D preamp + 1611 F DAC + 1621 A CD transport) represents the pinnacle of what MBL has to offer in home audio. Handbuilt in Berlin. Hear it at LMC — walk in during business hours at Scottsdale or Tempe, or book ahead for a prepared listening session.
Featured Specs
Configuration
4-way statement Radialstrahler system with double tweeters/midranges/woofers (D'Appolito arrangement) + ambient tweeter + active subwoofer
Lowest Frequency
17 Hz
Power Handling
Each channel 2 x 900W nominal / 2 x 1800W peak
Configuration
Four-tower system: two 6ft Radialstrahler towers + two 6ft subwoofer towers, total system weight 984 kg
General Specs
System
4-way system with double tweeters, midrange and woofers (D'Appolito arrangement), ambient tweeter and active subwoofer
Drivers
Tweeter Radial HT37 (unidirectional carbon fiber), Midrange Radial MT50 (woven carbon fiber), Woofer Radial TT100 (copper-alu-magnesium)
Subwoofer
Active, each channel 6 x 12-inch aluminum cone drivers in three cabinets, push-push arrangement, 3 x 86 liter cabinet volume
Frequency Response
17 Hz lowest frequency; crossover frequencies 85 Hz, 600 Hz, 3,500 Hz
Impedance / Power
4 Ohm nominal each upper/lower unit; 2 x 900W nominal / 2 x 1,800W peak per channel
Dimensions
Radial tower: 1854mm H x 496mm W x 687mm D. Subwoofer tower: 1860mm H x 410mm W x 670mm D
Weight
Radial each channel 265 kg / 584 lbs; Subwoofer each channel 227 kg / 500 lbs; Total system 984 kg / 2170 lbs
MKIII Improvements
Newly developed subwoofer amplifier module: reduced idle power consumption, lower Total Harmonic Distortion (THD), improved Signal-to-Noise Ratio (SNR)
Fine-Tuning
Tweeter wire selection (Natural/Fast/Smooth), Midrange coil selection (Natural/Rich), Bass Attack/Smooth position, Subwoofer Delay +-8ms + Volume +-6dB + Q-Factor 0.5-1.0 + 2-band parametric EQ (since MKII generation)
Finishes
