Wisdom Audio Sage Series L75
Available to Order
Contact UsThe entry to the Sage line sources — a 48-inch planar driver with four 6-inch woofers, free-standing, in-wall or on-wall and mixable in one room.
Product Details
Description

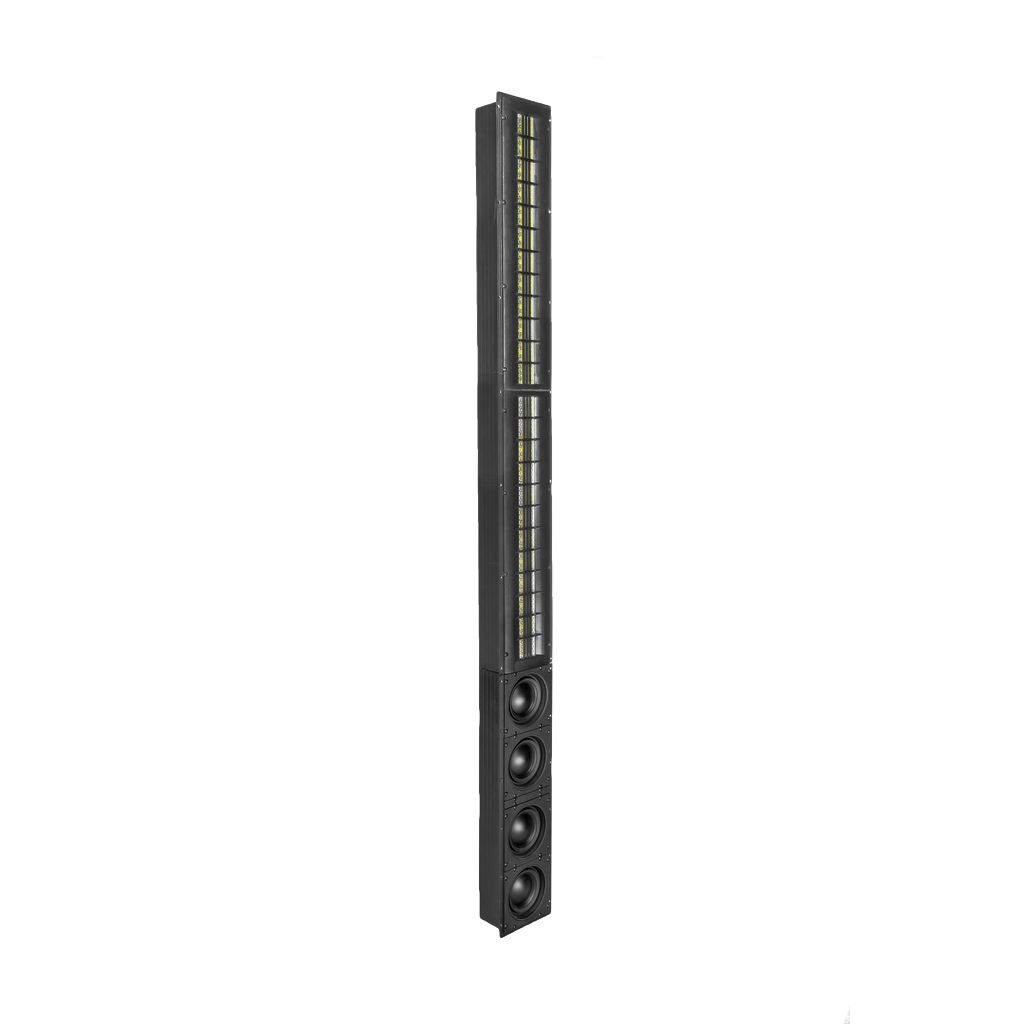

The L75 is the entry into the Sage line sources and the most flexible of them — a 48-inch planar magnetic driver with four 6-inch high operating pressure woofers, available free-standing, in-wall or on-wall, and mixable across a single installation.
The specification worth reading is the off-axis figure. Response holds 40 Hz to 20 kHz within 2 dB on axis, and 40 Hz to 18 kHz within the same 2 dB at thirty degrees off horizontal axis. Very few loudspeakers publish that number, and it is the one that determines whether the seats either side of the middle hear the same tonal balance as the middle does.
It needs an outboard active crossover with DSP and two channels of amplification per loudspeaker. Custom colours are available on the free-standing and on-wall versions, custom-length grilles on the in-wall, and anodized trim bezels on both visible variants.
Featured Specs
Line Source
48-inch planar magnetic driver
Woofers
Four 6-inch high operating pressure woofers
Frequency Response
40 Hz – 20 kHz ± 2 dB · 40 Hz – 18 kHz ± 2 dB at 30 degrees off axis
Sensitivity
Planar 95 dB · woofer 91 dB, both at 2.83 V / 1 m
Amplification
Two channels, with outboard active crossover and DSP
Configurations
L75 free-standing · L75i in-wall · L75m on-wall
General Specs
Series
Sage Series
Type
True line source — free-standing, in-wall or on-wall
Line Source Height
48 inches
Woofer Complement
Four 6-inch high operating pressure woofers
Frequency Response
40 Hz – 20 kHz ± 2 dB relative to the target curve
Frequency Response, 30° Off Axis
40 Hz – 18 kHz ± 2 dB relative to the target curve
Impedance, Planar Section
4.5 ohms
Impedance, Woofer Section
3 ohms
Sensitivity, Planar Section
95 dB / 2.83 V / 1 m
Sensitivity, Woofer Section
91 dB / 2.83 V / 1 m
Amplifier Channels Required
2
Processing
Outboard active crossover and DSP required
Finishes
Custom colours on L75 and L75m, custom length grilles on L75i, anodized trim bezels
