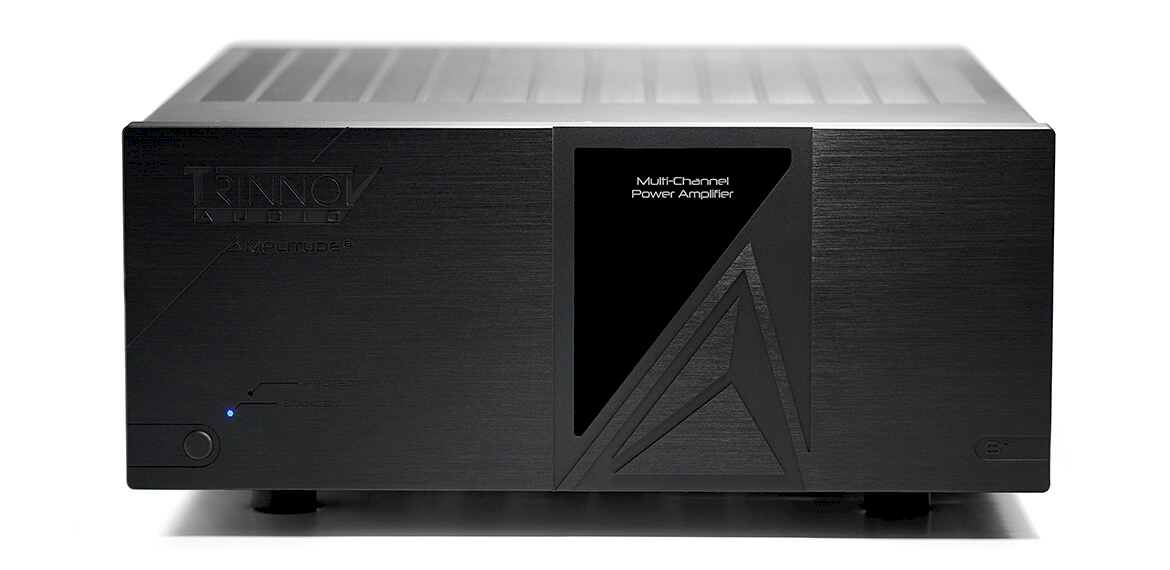

Trinnov Amplitude8
Available to Order
$16,500 (each)
Contact UsEight channels of Hypex Ncore NC1200 in one chassis — 225W into 8 ohms per channel on dual toroidal supplies. The natural partner to the Altitude32.
Product Details
Description
The Amplitude8 puts eight channels of Hypex Ncore NC1200 into one chassis — the Class D module that made the technology credible to listeners who had written it off. Each channel gives 225 watts into 8 ohms, 375 into 4, 500 into 2, with load-independent frequency response and a noise floor among the lowest measured in any amplifier.
Input sensitivity is matched to the Altitude32's output, which cuts system noise by six to eight decibels compared with a generic multi-channel amplifier. Cooling is convection only, no fans, which matters when the rack lives inside the room rather than in a closet down the hall. Two independent linear supplies with heavy toroidal transformers hold the voltage under transient load.
At 48 kilograms it is not a light amplifier, and the weight is where the power supply went.
Featured Specs
Configuration
8-channel Class D audiophile power amplifier
Modules
Hypex Ncore NC1200
Output
225 W into 8 ohms per channel; 375 W into 4 ohms; 500 W into 2 ohms
Power Supply
Two independent linear supplies with heavy-duty toroidal transformers
Cooling
Convection only — no fans, silent in a listening room
Performance
Signal-to-noise 125 dB · 5-year warranty
General Specs
Per Channel
225 W into 8 ohms, 375 W into 4 ohms, 500 W into 2 ohms
Amplifier Modules
Hypex Ncore NC1200
Frequency Response
0 Hz – 20 kHz, plus or minus 0.5 dB, load independent
Damping Factor
Greater than 6000 at 100 Hz; greater than 2000 from 20 Hz to 20 kHz
Inputs
1 XLR balanced per channel (pin 2 hot), 47 kOhm; DB25 option
Input Sensitivity
6.15 V (+18 dBu) balanced for 225 W into 8 ohms — matched to Altitude output
Outputs
One five-way binding post per channel
Signal-to-Noise
125 dB
Power
2 x 117 V / 230 V, under 1 W standby, 80 W idle
Dimensions
17.75 x 7.34 x 19.75 in (W x H x D)
Weight
48 kg (106 lbs)
Warranty
5 years
Finishes
