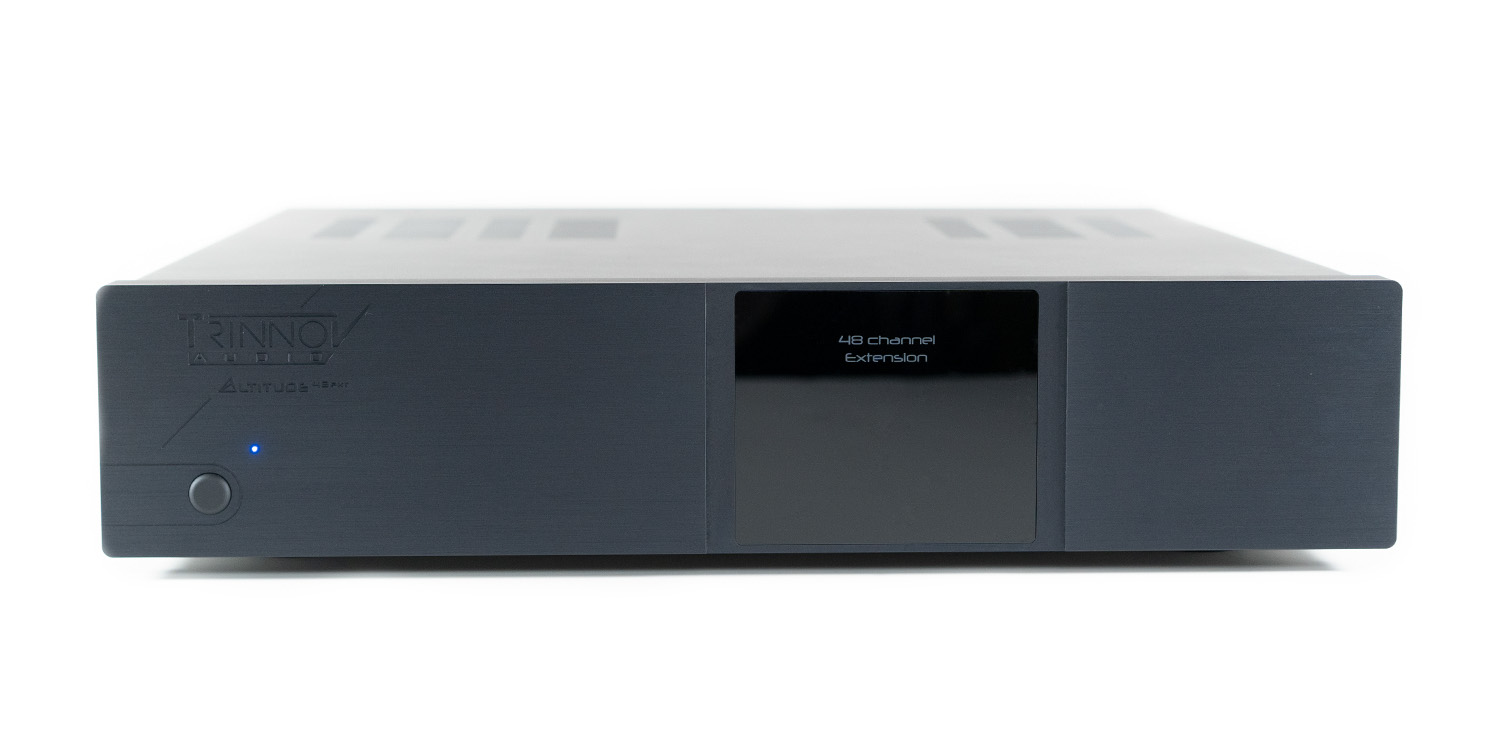

Trinnov Altitude48ext
Available to Order
$25,000
Contact UsA 48-channel extension chassis for the Altitude32 — enabling 24.1.10 Home Atmos with Optimizer and Remapping across up to 64 processing outputs.
Product Details
Description
The Altitude48ext extends the Altitude32 into cinema-scale immersive systems. Combined with a fully unlocked Altitude32 — 32 analogue plus 16 digital outputs — it enables 48 discrete decoded outputs and up to 64 total processing outputs, enough for the largest private theatres, dedicated Atmos rooms, and high-channel-count active loudspeaker installations.
It delivers the full 24.1.10 Home Atmos layout, which no consumer processor had managed before, while leaving system designers complete freedom over bass management, multi-amping and Trinnov's Remapping. The additional 32 Optimizer channels calibrate active crossovers or extended subwoofer arrays to the same standard as the base processor.
This is the chassis for the most ambitious private cinemas. Available to order through LMC Scottsdale.
Featured Specs
Configuration
48-channel extension chassis for the Altitude32
Capability
Enables full 24.1.10 Home Atmos playback — the first consumer processor able to do so
Total Outputs
Up to 64 processing outputs when paired with a fully unlocked Altitude32
Calibration
32 additional Optimizer channels for active crossovers or extended subwoofer arrays
Format
2U rackmount · 5-year warranty
General Specs
Digital Inputs
1 x DB25 (16 channels)
Analogue
8 x XLR balanced in, 8 x XLR balanced out, 4 x DB25 (32 channels), TASCAM pinout
Conversion
ADC and DAC 24 bit / 48 kHz
Signal-to-Noise
119 dB A/D, 118 dB D/A (A-weighted)
Dimensions
17.5 x 4 x 17.25 in (W x H x D)
Weight
10.2 kg (22.5 lbs)
Power
90 W
Warranty
5 years
Finishes
