Sonus faber Olympica Nova Wall

Available to Order

$5,500 (each)

Contact Us

On-wall 2-way passive radiator loudspeaker from the Olympica Nova line — voice-matched to the collection floorstanders for Atmos heights or surrounds.

Product Details

Description

Olympica Nova Wall is the on-wall loudspeaker of Sonus faber's Olympica Nova line — a 2-way passive radiator design engineered to voice-match the rest of the Nova collection when the installation calls for surround, height or discreet main-channel loudspeakers that mount to the wall rather than sit on the floor.

The system is 2-way: an H28 XTR3 tweeter with neodymium 'cup design' motor and DAD, and a single MW15 XTR2-04 150 mm midwoofer in a passive-radiator cabinet. Crossover sits at 2,500 Hz through a Phase Coherent Level 3 network. Because the cabinet mounts flush to the wall, the passive radiator handles low-frequency work without requiring a rear vent or floor-coupling.

Frequency response runs from 50 Hz to 35 kHz with the Stealth reflex included, at 87 dB sensitivity into 4 ohms. Recommended amplification is 35 to 250 watts without clipping. Cabinet dimensions are 562 mm high by 309 mm wide by 234 mm deep, at 9 kilograms per unit — substantial for an on-wall design because Sonus faber does not compromise cabinet mass to hit a form factor.

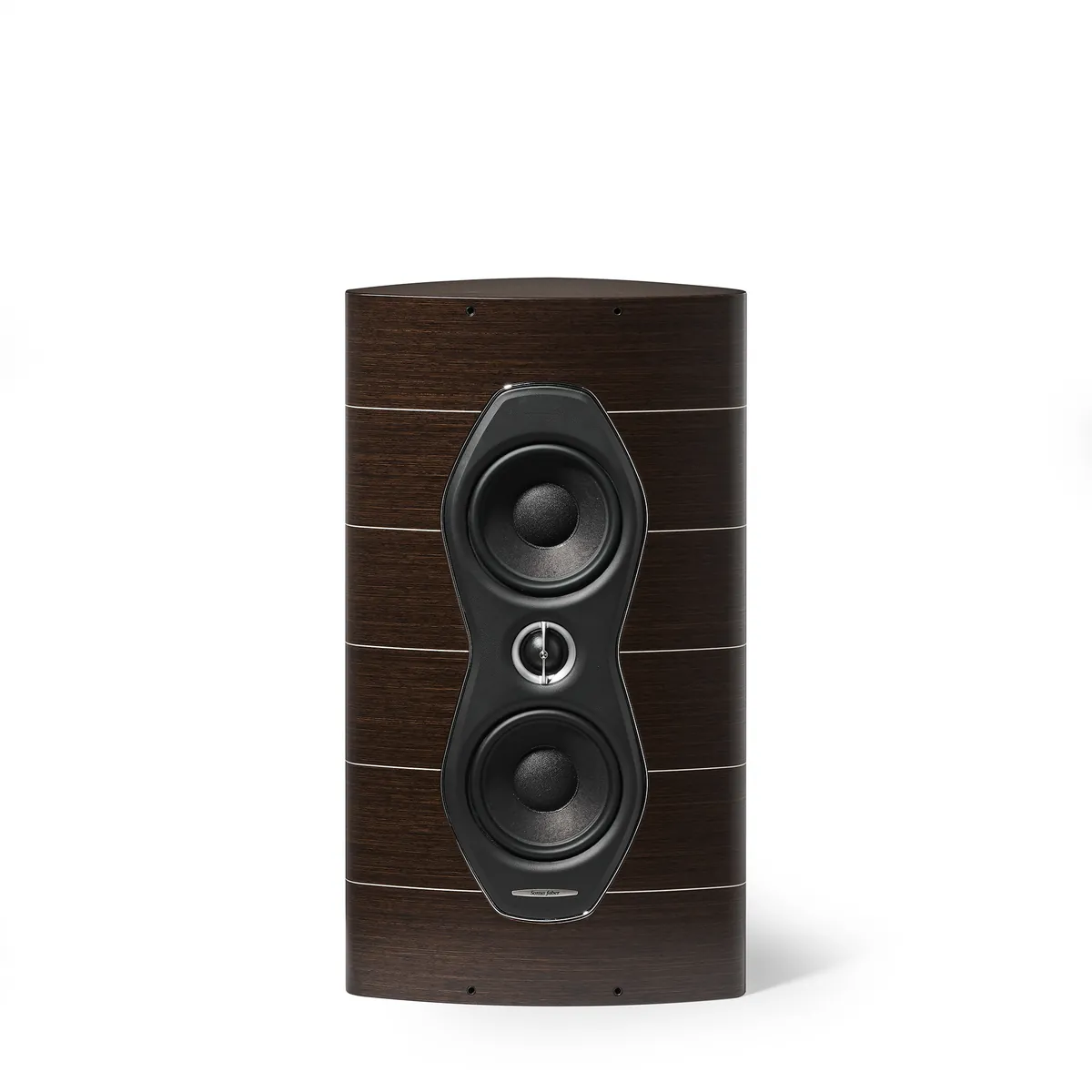

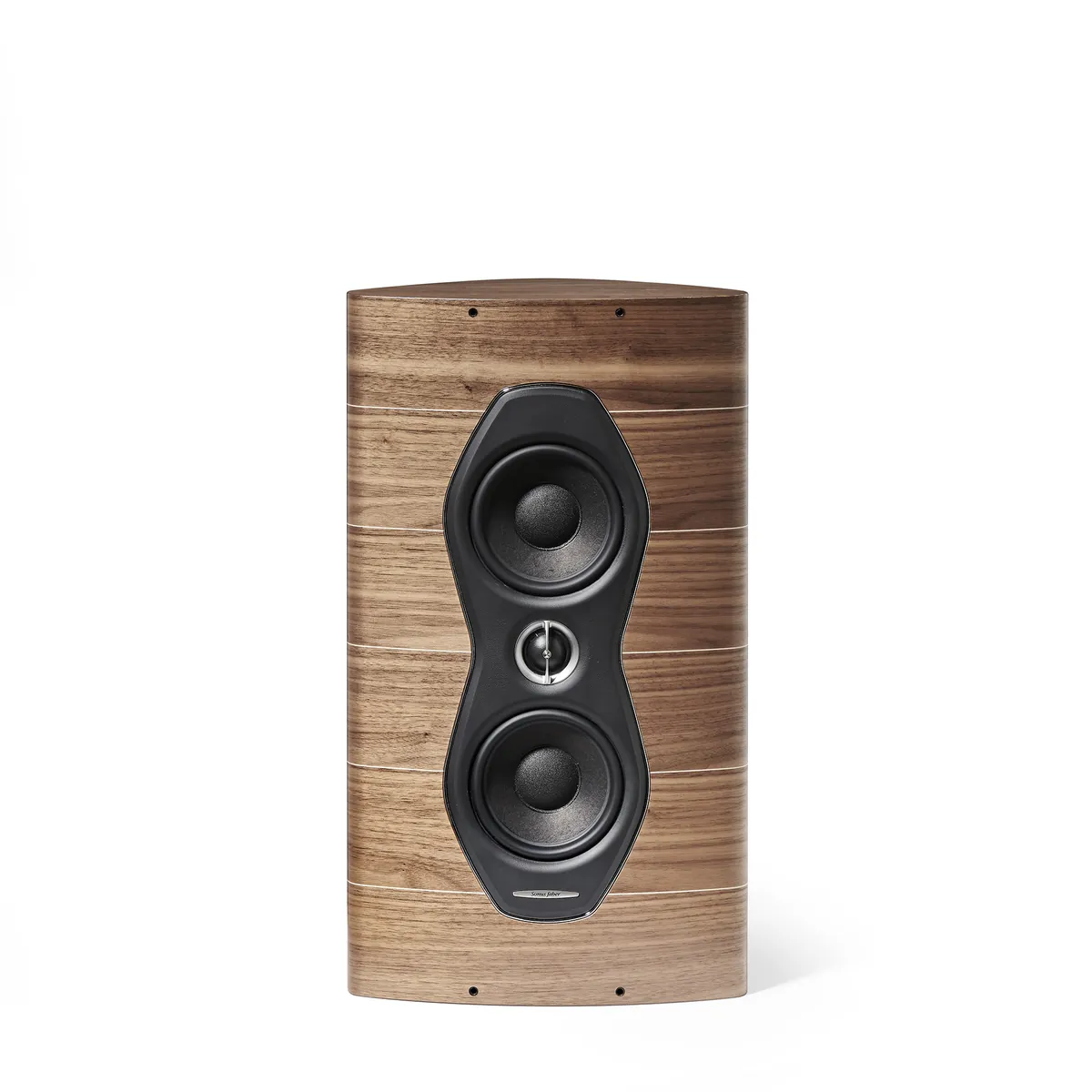

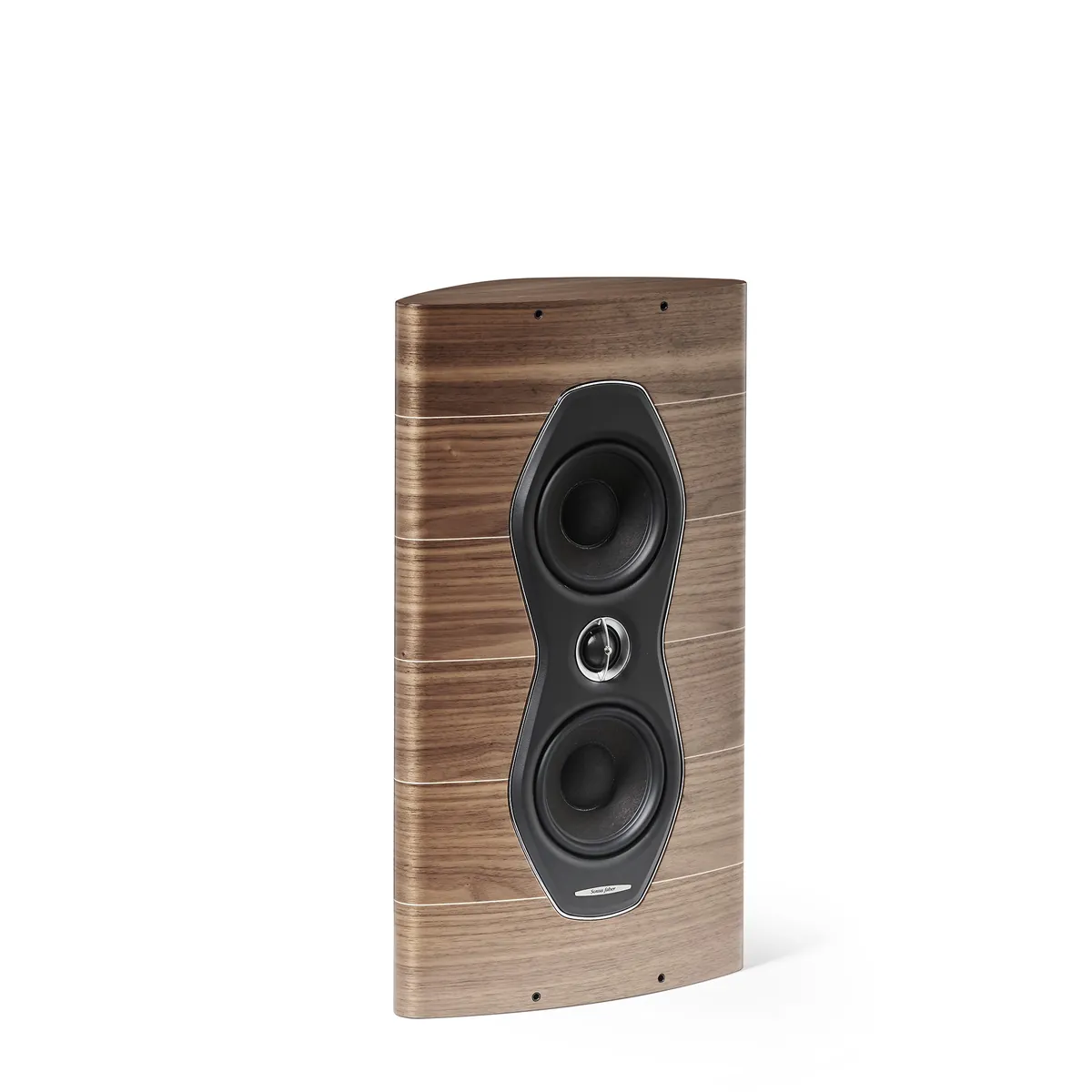

Available in Walnut, Wengè or Piano Black high gloss with hand-applied Italian leather, matching the rest of the Olympica Nova line so an on-wall system reads visually as an extension of the collection.

Featured Specs

General Specs

Configuration

2-way on-wall loudspeaker with passive radiator low-frequency loading

Cabinet

Flush wall-mount Olympica Nova cabinet with hand-finished wood and hand-applied Italian leather

Tweeter

H28 XTR3, neodymium 'cup design' motor system with DAD, Ø 28 mm

Midwoofer

MW15 XTR2-04, Ø 150 mm

Crossover

2,500 Hz

Frequency Response

50 Hz – 35,000 Hz (Stealth reflex included)

Sensitivity

87 dB SPL (2.83V/1m)

Nominal Impedance

4 ohms

Recommended Amplifier

35 W – 250 W, without clipping

Dimensions (H×W×D)

562 × 309 × 234 mm — 22.1 × 12.1 × 10.9 in per unit

Weight

9 kg / 19.8 lb per unit

Finishes

Walnut / Wengè / Piano Black high gloss with hand-applied Italian leather

Application

On-wall voice-matched surround/height/main for Olympica Nova multi-channel and custom-install systems

Finishes

Come Hear It

Visit the Showroom

See and hear this in one of our reference rooms. Walk in or book ahead, in Scottsdale or Tempe.
