McIntosh ML1 Mk II Loudspeaker
Available to Order · Hear It in Tempe
$14,000 (pair)
Contact UsModern reissue of McIntosh’s original 1970 loudspeaker — 4-way sealed cabinet, five drivers, oiled American walnut with matching stand, 27 Hz to 45 kHz.
Product Details
Description
The McIntosh ML1 Mk II is a 2023 reissue of McIntosh's very first loudspeaker — the original ML1, launched in 1970 and discontinued in 1977. External design carries the same oiled American walnut solid-wood cabinet and satin-finish veneers as the 1970 original, complete with matching stands featuring vintage die-cast aluminum name badges that match the badges on McIntosh's classic amplifiers. Internally the Mk II is a full contemporary redesign — nothing but the aesthetic vocabulary carries forward.
The 4-way sealed cabinet houses five drivers per speaker: a 12-inch polypropylene-cone woofer in a sealed enclosure, two 4-inch lower-midrange drivers in a sealed sub-enclosure arranged horizontally, a 2-inch soft-dome upper midrange positioned between them, and a 0.75-inch titanium dome tweeter — the same tweeter used in the XR50, XR100, and LCR80 for family voicing continuity. Crossover points at 180 Hz, 500 Hz, and 4,500 Hz avoid dividing the critical vocal range. Frequency response extends from 27 Hz (deep enough to skip a subwoofer in typical rooms) up to 45 kHz. Sensitivity is 85 dB — the Mk II likes power, and 75-to-600-watt handling accommodates it.
The natural amplifier pairing is a McIntosh tube integrated or a tube preamp-and-amp chain. The ML1 Mk II is period-styled to voice with the C22 preamp and MC275 tube amp that share its visual vocabulary, and LMC's Tempe showroom offers exactly that context — a vintage McIntosh tube system with the C22 preamp and MC275 tube amplifier that period-matches the ML1 Mk II's design vocabulary.
Available in Tempe on demo — walk in during business hours or book ahead.
Featured Specs
Configuration
4-way sealed cabinet loudspeaker — 2023 reissue of the original ML1 (McIntosh's first-ever speaker, launched 1970, discontinued 1977)
Driver Complement
5 drivers per speaker — 12-inch polypropylene woofer, two 4-inch lower midranges (sealed sub-enclosure, horizontal), one 2-inch soft-dome upper midrange, one 0.75-inch titanium dome tweeter
Family Voicing
Same 0.75-inch titanium dome tweeter as the XR50, XR100, and LCR80 — driver-level family voicing continuity
Power Rating
75 to 600 Watts, 85 dB sensitivity, 27 Hz to 45 kHz frequency response
General Specs
Configuration
4-way sealed cabinet loudspeaker — 2023 reissue of McIntosh's original ML1, launched 1970 and discontinued 1977
Driver Complement
5 drivers per speaker — 12-inch polypropylene-cone woofer (sealed enclosure), 2× 4-inch lower midrange drivers in sealed sub-enclosure (arranged horizontally with polypropylene cones), 2-inch soft-dome upper midrange, 0.75-inch titanium dome tweeter
Family Voicing
Same 0.75-inch titanium dome tweeter as the XR50, XR100, and LCR80 — driver-level family voicing continuity
Layout
Symmetrical driver layout (Mk II improvement over original ML1) — no dedicated left/right speakers, more uniform sweet spot across a wider listening area
Impedance
8 Ohms nominal
Power Rating
75 to 600 Watts
Sensitivity
85 dB (2.83V/1m) — the Mk II likes power
Frequency Response
27 Hz to 45 kHz — deep enough to skip a subwoofer in typical rooms
Crossover Points
180 Hz, 500 Hz, 4,500 Hz — avoids dividing the critical vocal range
Cabinet
Oiled American Walnut solid-wood cabinet with satin-finish veneers — same aesthetic as the 1970 original
Binding Posts

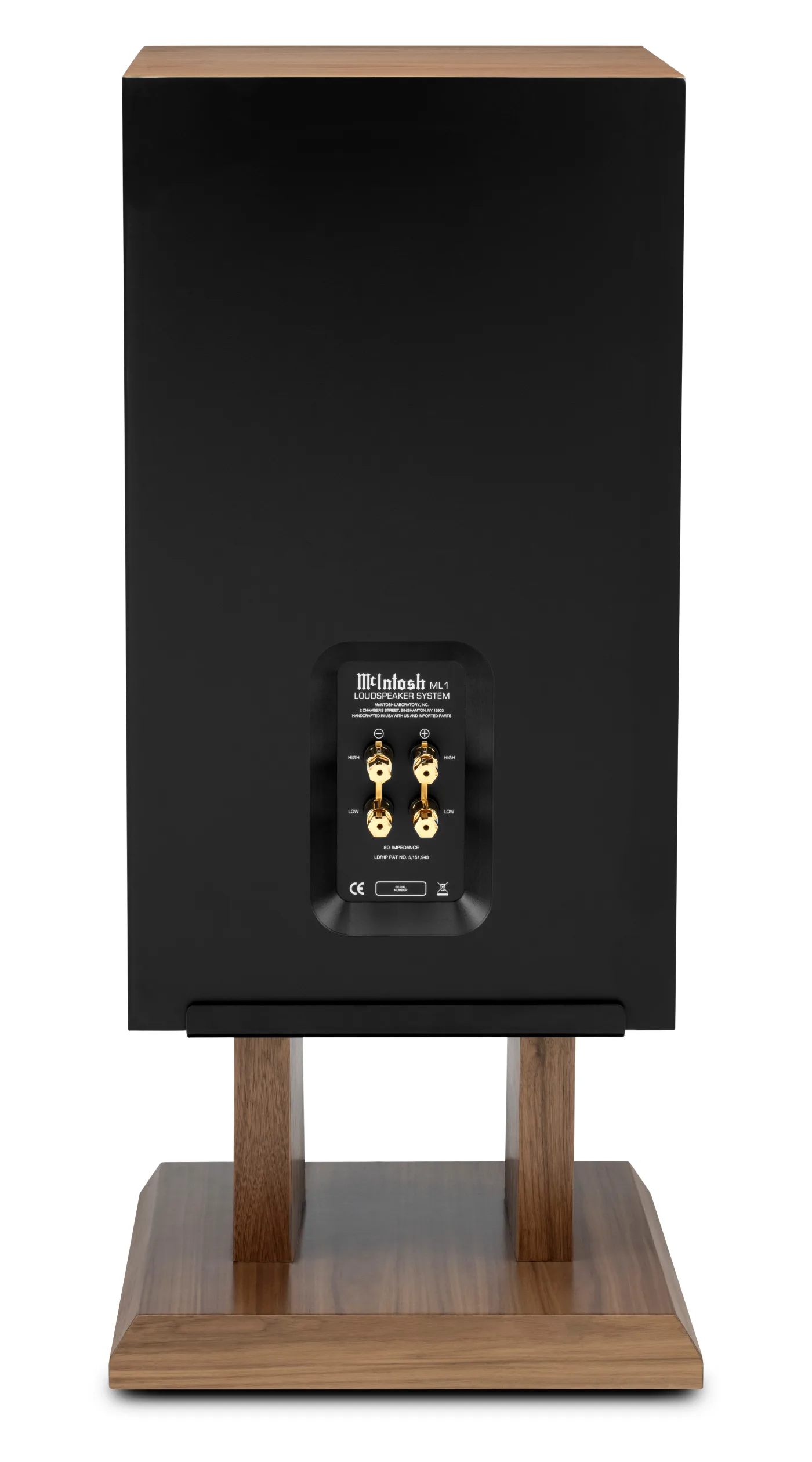

Solid Cinch gold-plated — bi-wire and bi-amp capable
Stand
Matching stand included, with vintage die-cast aluminum name badge that matches badges on classic McIntosh amplifiers and integrated amps
Origin
Made in the USA
Application
Full-McIntosh system loudspeaker — period-styled to voice with McIntosh tube components (C22 preamp, MC275 tube power amp) that share its visual vocabulary
Finishes
