Dan D’Agostino

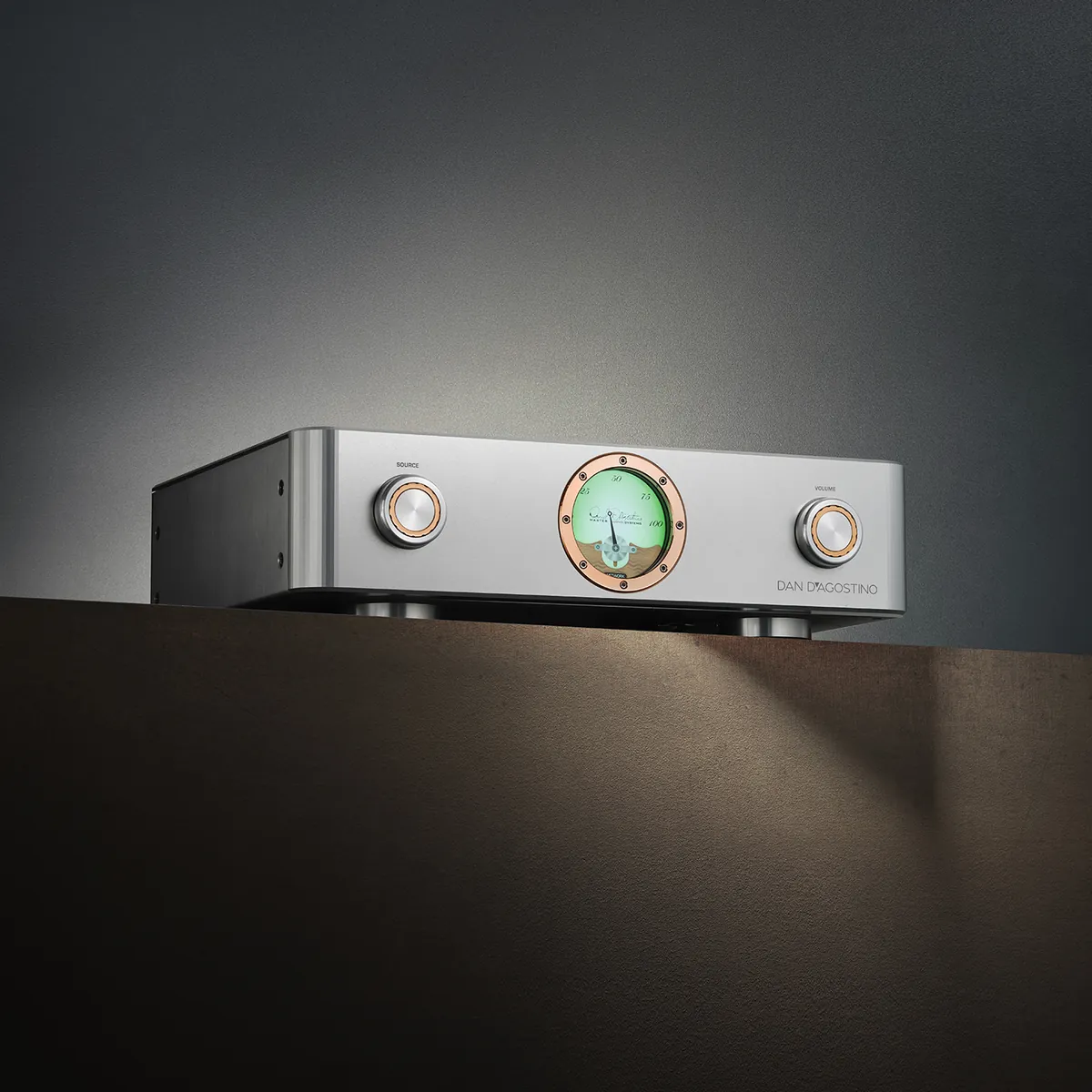

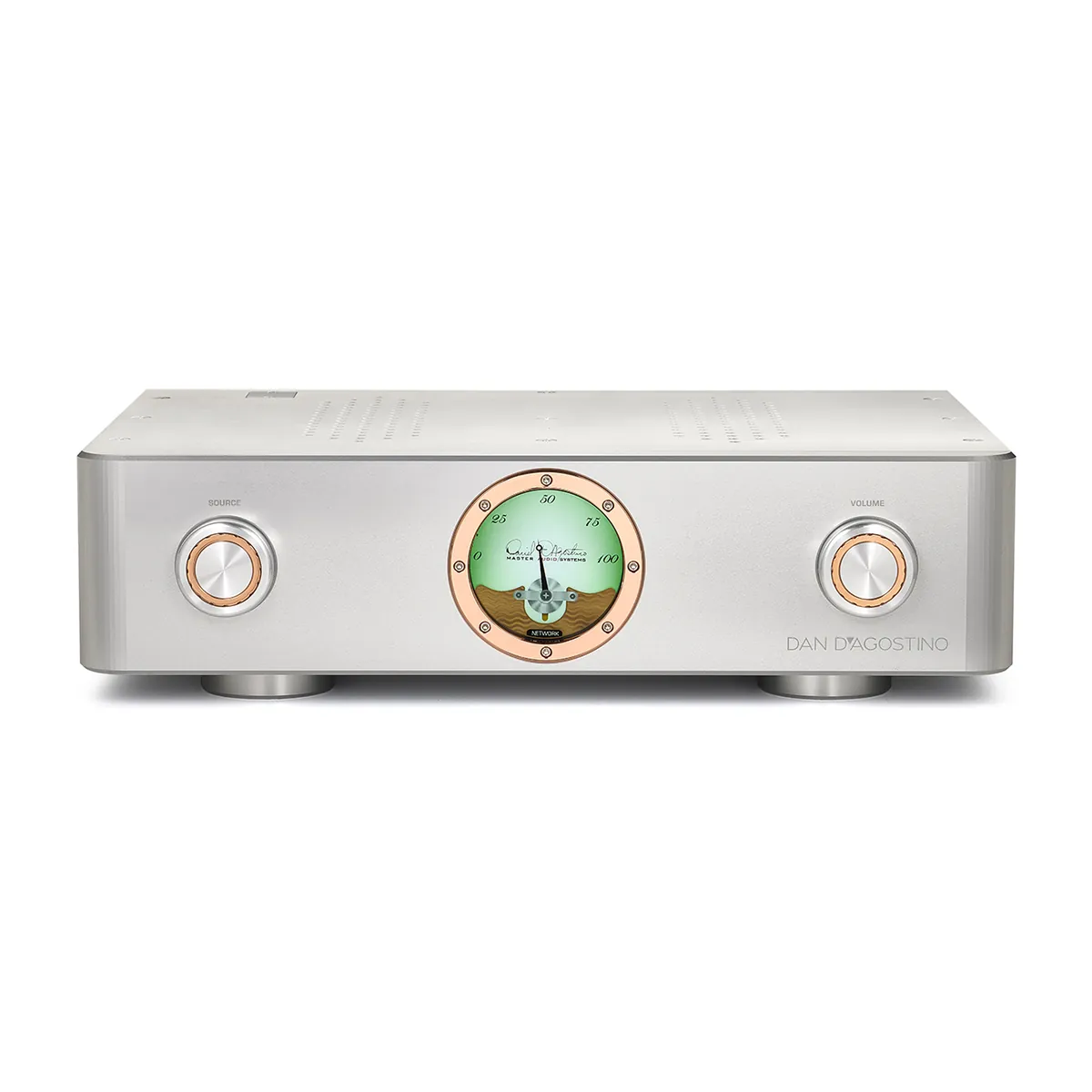

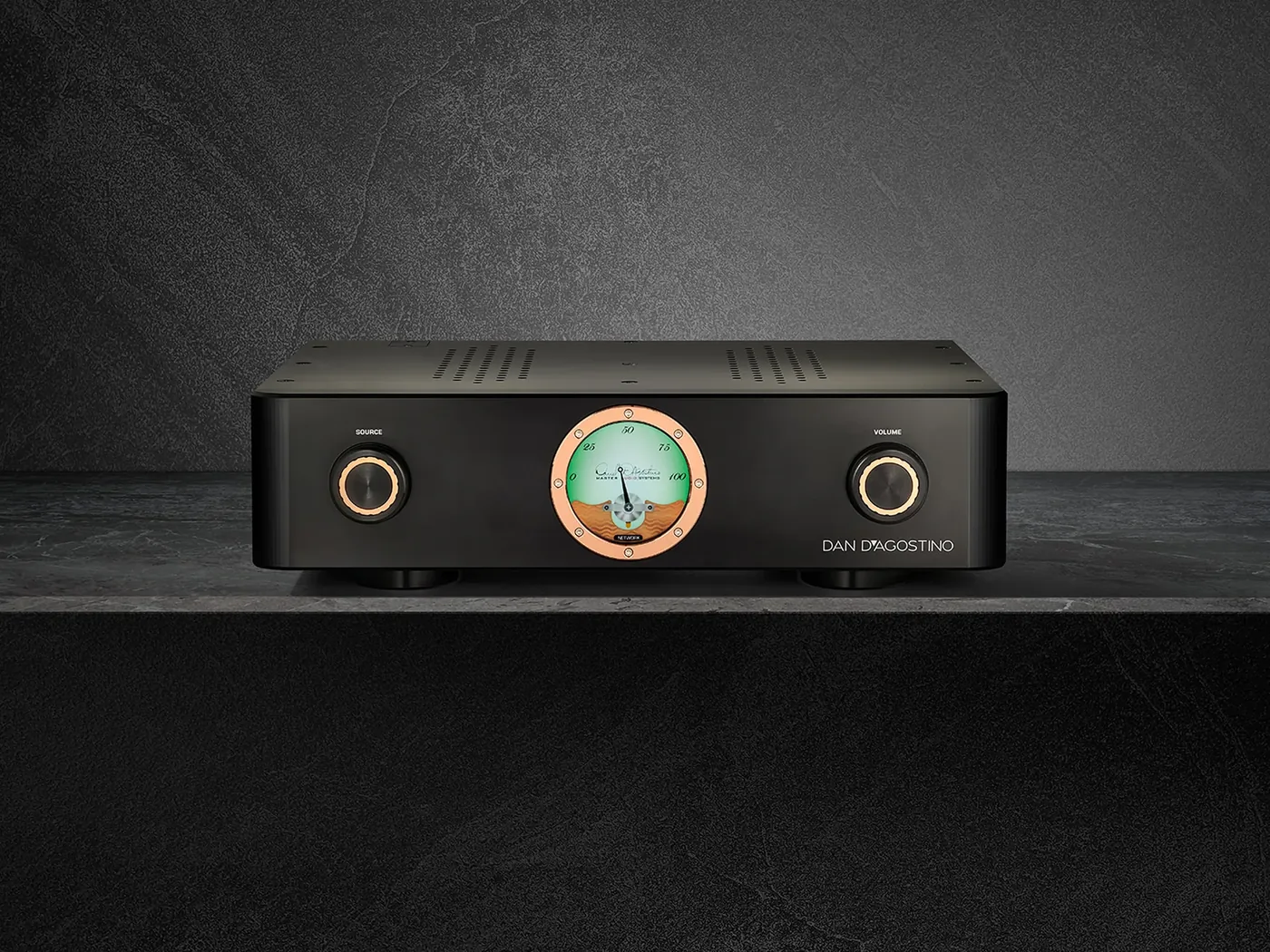

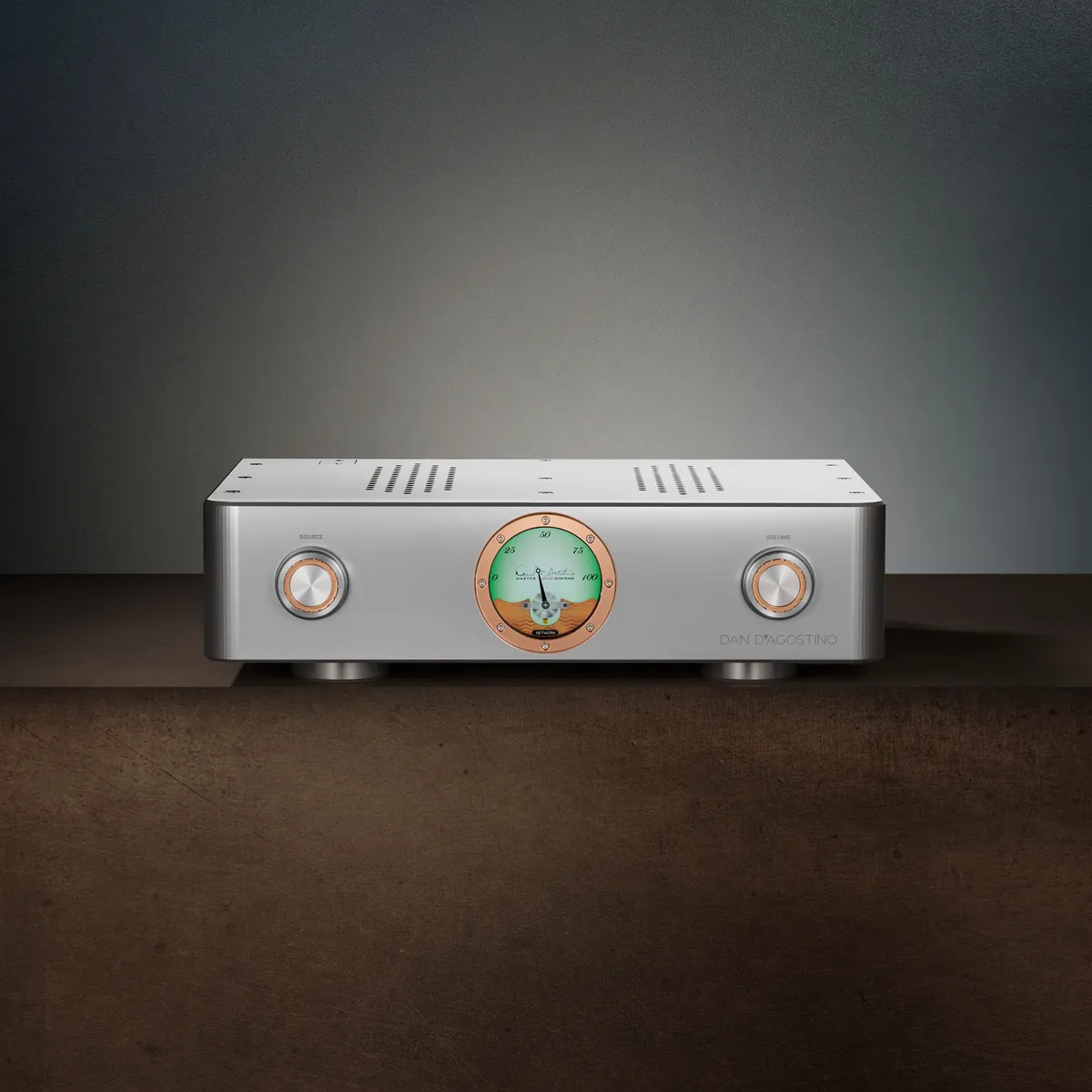

Dan D’Agostino Pendulum Integrated Amplifier

Available to Order

18000

Contact Us

The entry point to the D’Agostino line — 120 W into 8 Ω doubling to 240 into 4, JFET input stage derived from the Momentum C2 preamplifier.

Product Details

Description

The Pendulum Integrated Amplifier is the newest line from Dan D'Agostino Master Audio Systems and the entry point to D'Agostino ownership — introduced at Munich High End 2024 as the most accessible expression of four decades of amplifier design. At its heart is the re-engineered JFET input circuit topology derived from the Momentum C2 Preamplifier: the same ultra-low-noise front end that anchors the reference tier, applied to a component a fraction of its price.

The engineering underneath is unmistakably the house's. A custom 750 VA toroidal transformer and a nearly 25,000 µF capacitor bank deliver 120 watts per channel into 8 ohms, doubling to 240 into 4 — the doubling being the signature of a power supply that does not flinch. The signal path is all-balanced, direct-coupled, and complementary; the fascia carries an LCD display inspired by Swiss watch design, and control runs through a Bluetooth remote housed in machined Delrin.

The platform is modular, and notably forward-looking: the optional digital module makes the Pendulum the first D'Agostino component with an HDMI eARC input — alongside optical, Ethernet, and Wi-Fi — which means it integrates into a living-room television system as gracefully as into a dedicated listening room. An optional moving-coil phono module adds 60 dB of gain with selectable loading for vinyl playback. Analog connectivity includes three balanced inputs, one with theater pass-through, and balanced preamplifier outputs for subwoofer integration.

Because Pendulum is the newest program in the range, the right first step is a conversation: where it fits your system, and how it compares against the Progression electronics on our floor — a comparison we can set up directly in Tempe. Call either showroom or come in, and the decision gets made by ear rather than by tier name.

Featured Specs

General Specs

Output Power (per Channel)

120 W @ 8Ω / 240 W @ 4Ω

Frequency Response

20 Hz to 20 kHz, ±0.1 dB

Distortion

0.015% @ 1 kHz, 120 W per channel @ 8Ω

Input Impedance

1 MΩ

Output Impedance

0.1 Ω

Analog Inputs

3 pair balanced XLR stereo (including theater pass-through); 1 pair unbalanced RCA stereo

Digital Inputs (w/ optional DSM)

1 each optical; RJ45 Ethernet; Wi-Fi; HDMI with eARC

Phono (w/ optional module)

60 dB gain; loading 47 kΩ / 1 kΩ / 500 Ω / 250 Ω / 100 Ω / 50 Ω

Outputs

1 pair balanced XLR stereo; ¼-inch headphone; 2 pair binding posts

Control Protocol

RS-232

Dimensions (WHD)

17.0 x 4.65 x 14.0 in / 43.2 x 11.8 x 36.6 cm

Weight

35 lb (15.9 kg)

Finish

Silver or Black; custom painted options by special order

Finishes
