The smaller of the two accessible-tier subwoofers — a 15-inch driver in a vented cabinet tuned to 27 Hz, 1000 W handling, 250 mm deep.

Product Details

Description

The15 SUB Passive Vented is the smaller of the two accessible-tier subwoofers, built to the same brief as The18: Ascendo engineering and Ascendo's published third-party measurements, in a cabinet and at a cost that suits a room which does not need a PRO model.

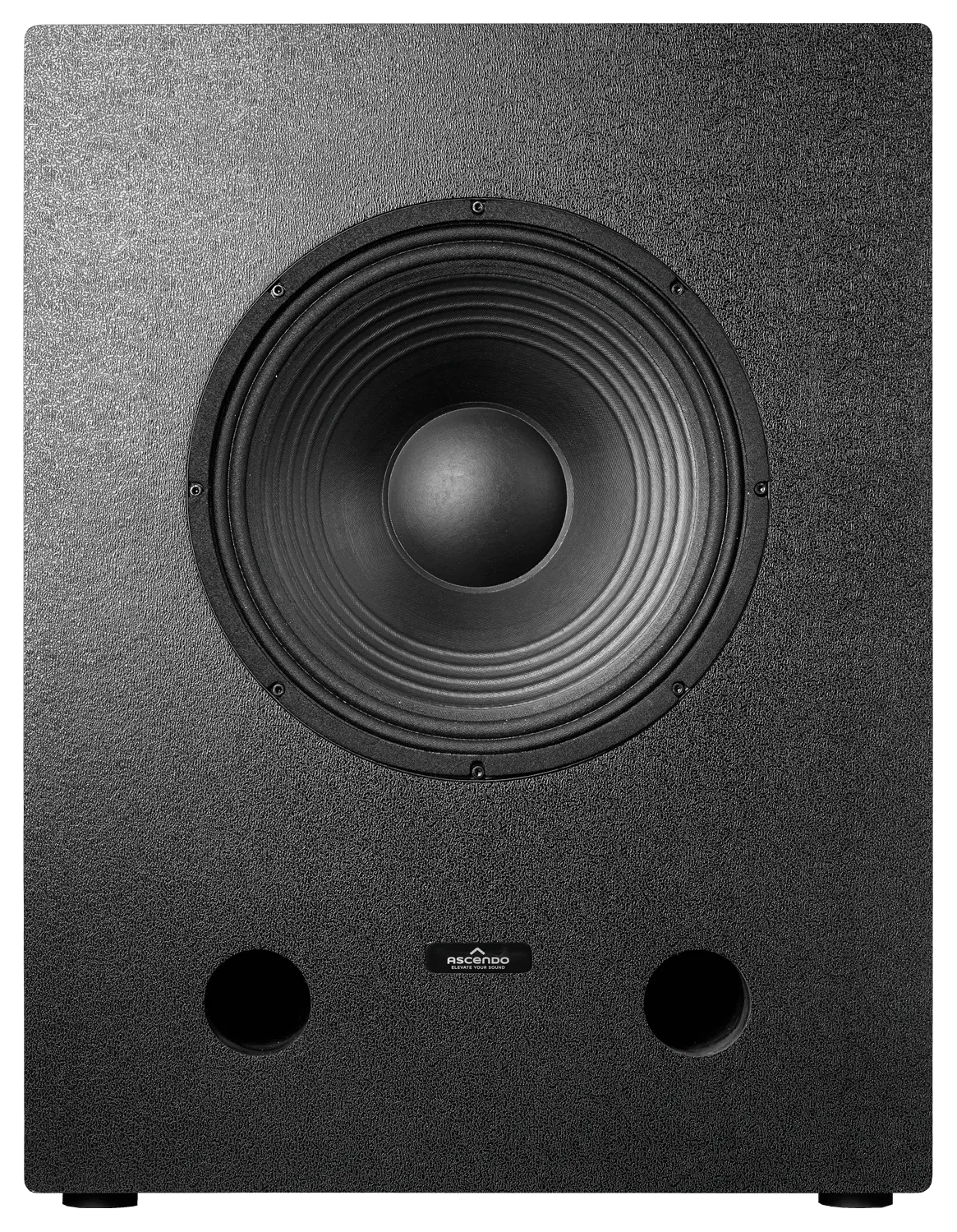

It is a 15-inch driver on a cast frame with a 3-inch voice coil, in a vented enclosure tuned to 27 Hz. Six millimetres of excursion each way is modest, so this is a subwoofer that works through cone area and port tuning rather than displacement — and the practical consequence is that one amplifier channel at 700 watts into 4 ohms drives it properly.

At 250 mm deep and 32.7 kg it is genuinely easy to place, which matters more often than specification sheets suggest. It goes behind a screen, into a riser, or along a side wall in rooms where a larger cabinet would have to be argued for.

In an Ascendo system it is the entry point rather than the foundation. Where a room needs authority below 30 Hz, the PRO models and the infrasonic range above them are the answer — and they are designed to be added later without replacing what is already there.

Featured Specs

General Specs

Series

PERFORMANCE — Passive Vented

Driver

15-inch forward-firing with 3-inch voice coil

XMAX

6 mm each direction (12 mm linear), voice coil remaining in the homogeneous magnetic field

Alignment

Vented, tuning frequency 27 Hz

SPL Peak (Half Space 2pi)

Measured 120 dB at 50 Hz

Frequency Range

Measured without DSP — 59 Hz to 400 Hz at −3 dB; 27 Hz to 400 Hz at −12 dB

Power Handling

1000 W

Efficiency

95 dB / 1 W/m 2 pi

Impedance

4 Ω

Recommended Amplification

One DSP channel plus one amplifier channel — minimum 52.9 Vrms, 74.8 Vpk, 13.2 A, equivalent to 700 W at 4 Ω. With DSP-4D: AIA2-1404, AIA2-2704, AIA4-6004 or AIA8-6004

Input

4-conductor Phoenix 12 AWG (3.3 mm²)

Dimensions (W/H/D)

600 | 782 | 250 mm — 23 10/16 | 30 12/16 | 9 13/16 inch (height without feet 770 mm)

Weight

32.7 kg | 72.09 lbs

Enclosure

Internally braced MDF, structural paint black, floorstanding with feet

Origin

Designed and built in Heilsbronn, Germany
