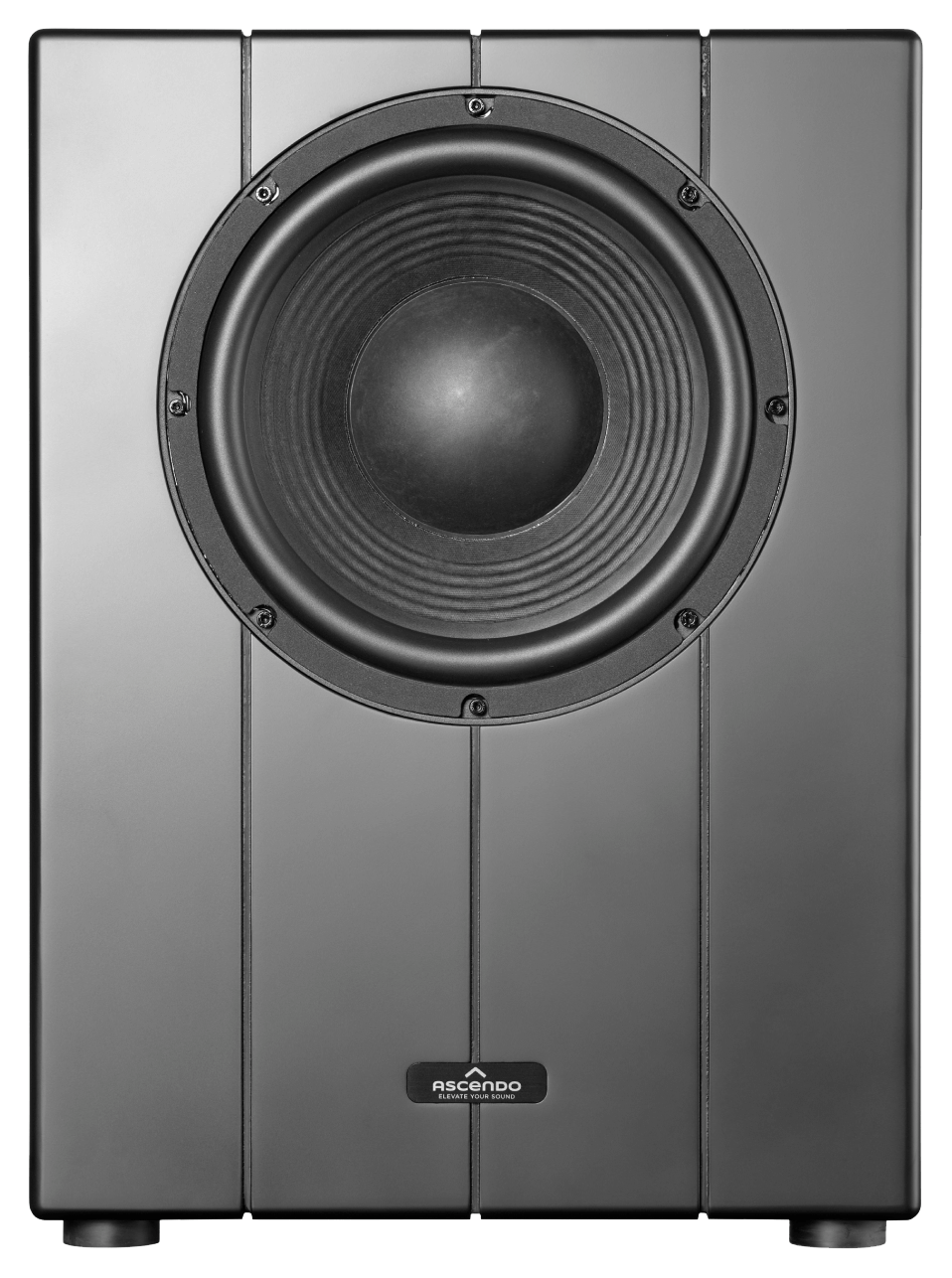

Ascendo The12 SUB PRO

Available to Order

Contact Us

The smallest PRO subwoofer at 210 mm deep — a 12-inch carbon Nomex cone on a neodymium motor with triple shorting rings, 40 mm linear travel.

Product Details

Description

The12 SUB PRO is the smallest PRO subwoofer, and it is built for a specific problem: a room that needs proper bass and has 210 millimetres to give it. At 450 by 615 by 210 mm and 23 kg, it goes into places a subwoofer normally cannot.

Getting PRO behaviour out of that volume took a carbon Nomex pulp mix cone on a neodymium motor with triple shorting rings — the rings linearise the magnetic field as the coil moves, which is what keeps distortion low when a small driver is working hard. Twenty millimetres of excursion each way in a cabinet this shallow is the whole trick.

Efficiency is 88 dB, noticeably lower than the larger models, which is the honest cost of the format: it needs its 900 watts and it will not pressurise a large room the way an 18 or a 21 does. Ascendo's own guidance is to use two in smaller installations and scale the count up from there rather than expect one to do the work of something bigger.

What it does keep is the linearity that runs through the whole range, which is what lets it hand over to the main channels without a seam — and what lets it sit in the same system as the infrasonic models without fighting them.

Featured Specs

General Specs

Series

PRO — Passive Sealed Shallow

Driver

12-inch forward-firing, advanced carbon Nomex pulp mix cone

Motor

Neodymium with 4-inch ultra-high-temperature voice coil and triple shorting rings

XMAX

20 mm each direction (40 mm linear), voice coil remaining in the homogeneous magnetic field

Alignment

Sealed, passive

SPL Peak (Half Space 2pi)

Measured 124 dB at 63 Hz

Frequency Range

Measured without DSP — 44 Hz to 400 Hz at −3 dB; 22 Hz to 400 Hz at −12 dB

Power Handling

1000 W

Efficiency

88 dB / 1 W/m 2 pi

Impedance

4 Ω

Max Linear Air Volume Displacement

2.08 L | 0.54 US liquid gallons

Recommended Amplification

One DSP channel plus one amplifier channel — minimum 60 Vrms, 84 Vpk, 15.0 A, equivalent to 900 W at 4 Ω. With DSP-4D: AIA2-1404 bridged, AIA2-2704, AIA4-6004 or AIA8-6004 bridged

Input

4-conductor Phoenix 12 AWG (3.3 mm²)

Dimensions (W/H/D)

450 | 615 | 210 mm — 17 4/16 | 24 4/16 | 8 4/16 inch (height without feet 600 mm)

Weight

23 kg | 50.71 lbs

Enclosure

Internally braced MDF, structural paint black, floorstanding with feet, front cover supplied as standard

Origin

Designed and built in Heilsbronn, Germany
