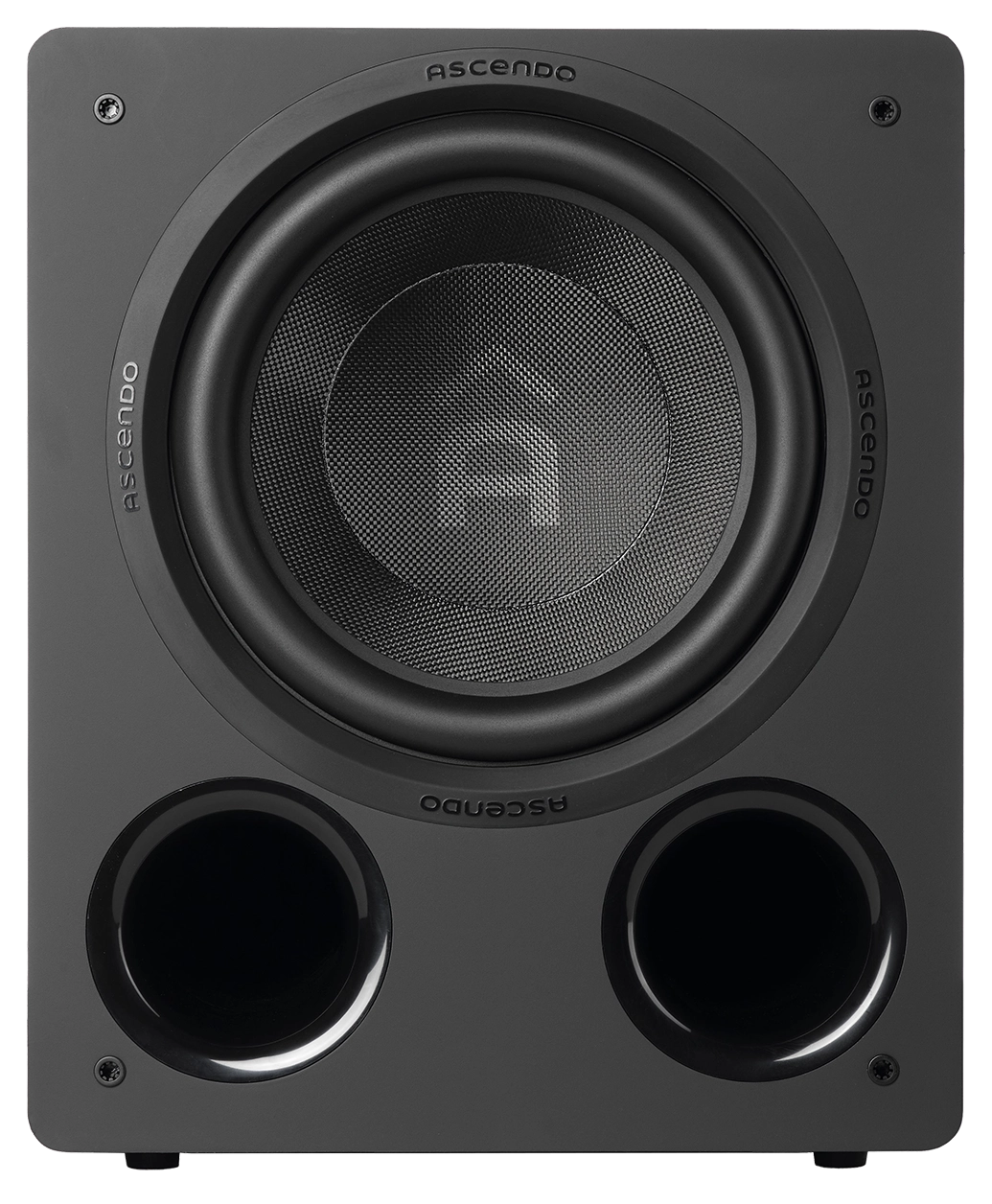

Ascendo The12 SUB Active Vented
Available to Order
Contact UsThe smallest Ascendo subwoofer and the only one that arrives ready to run — a 12-inch composite sandwich cone on 600 W Class D with DSP on board.
Product Details
Description
The12 SUB Active Vented is the smallest and most approachable subwoofer Ascendo makes, and the only one in the range that arrives ready to run — amplifier, DSP and controls all on board, no external processing to specify.
The driver is a composite sandwich cone on a long-throw rubber surround, developed specifically for this cabinet rather than borrowed from the passive models, with 20 mm of excursion in each direction. The enclosure is vented through dual ports, which reduces the air velocity at each one and with it the chuffing that single-port designs produce when pushed.
Six hundred watts of Class D drives it, with a variable low-pass crossover from 40 to 150 Hz, continuously adjustable phase, and auto power on and off. It takes a balanced XLR LFE feed or unbalanced RCA line level, and passes both through to a further subwoofer — which is how you build up from one to a pair without adding a distribution amp.
It is also the only Ascendo subwoofer offered in a choice of finishes: black, white, or black ash. In a living room rather than a dedicated theatre, that matters more than another few decibels.
Featured Specs
Driver
12-inch forward-firing composite sandwich cone with 3-inch voice coil and long-throw rubber surround
Amplifier
600 W Class D with built-in DSP
Alignment
Vented, dual ports
Frequency Range
28 Hz – 400 Hz / −3 dB measured without DSP
Finishes
Black, White and Black Ash
General Specs
Series
PERFORMANCE — Active Vented
Driver
12-inch forward-firing composite sandwich cone, 3-inch voice coil, long-throw rubber surround
XMAX
20 mm each direction (40 mm linear), voice coil remaining in the homogeneous magnetic field
Alignment
Vented with dual ports to limit port turbulence
Amplifier
600 W Class D with integrated DSP
SPL Peak (Half Space 2pi)
Measured 112 dB at 28 Hz
Frequency Range
Measured without DSP — 28 Hz to 400 Hz at −3 dB
Controls
Low-pass crossover variable 40 Hz to 150 Hz, phase 0° to 180°, volume, auto on/off
Inputs
LFE 1 × XLR balanced full range with no crossover applied; line level 2 × RCA summing unbalanced
Outputs
LFE 1 × XLR balanced; line level 2 × RCA unbalanced
Power
100–240 VAC, 50–60 Hz, IEC inlet. Idle consumption 12 W
Protection
Turn-on transients, over-heating, DC, short circuit and mismatched loads
Dimensions (W/H/D)
400 | 490 | 400 mm — 15 3/4 | 19 2/7 | 15 3/4 inch (height without feet 480 mm, depth with plug 460 mm)
Weight
25 kg | 55.12 lbs
Enclosure
Internally braced, floorstanding with feet, front cover supplied as standard
Finishes
Black, White, Black Ash
Origin
Designed and built in Heilsbronn, Germany
Finishes
