Ascendo The100 SUB PRO

Built to Order · Enclosure Constructed On-Site

Contact Us

A custom 100-inch woofer on dual 21-inch voice coils reaching 1 Hz — the enclosure is designed per room and constructed on site.

Product Details

Description

The100 replaced the 80-inch model in July 2025, and the name change is worth understanding: Ascendo moved to the professional convention of measuring the driver basket rather than the cone, so The100 is the successor to The80 rather than a step beyond it. The64 replaced The50 in the same announcement.

What arrives is a driver, not a subwoofer. At 2,360 mm square and 260 kg it is too large to ship as a finished cabinet, so the enclosure is specified per room — minimum 10 cubic metres — and built on site by the dealer or contractor to a design Ascendo draws against the room's dimensions and structure. Every installation is effectively bespoke, and the published output figures are examples that move with the enclosure that gets built.

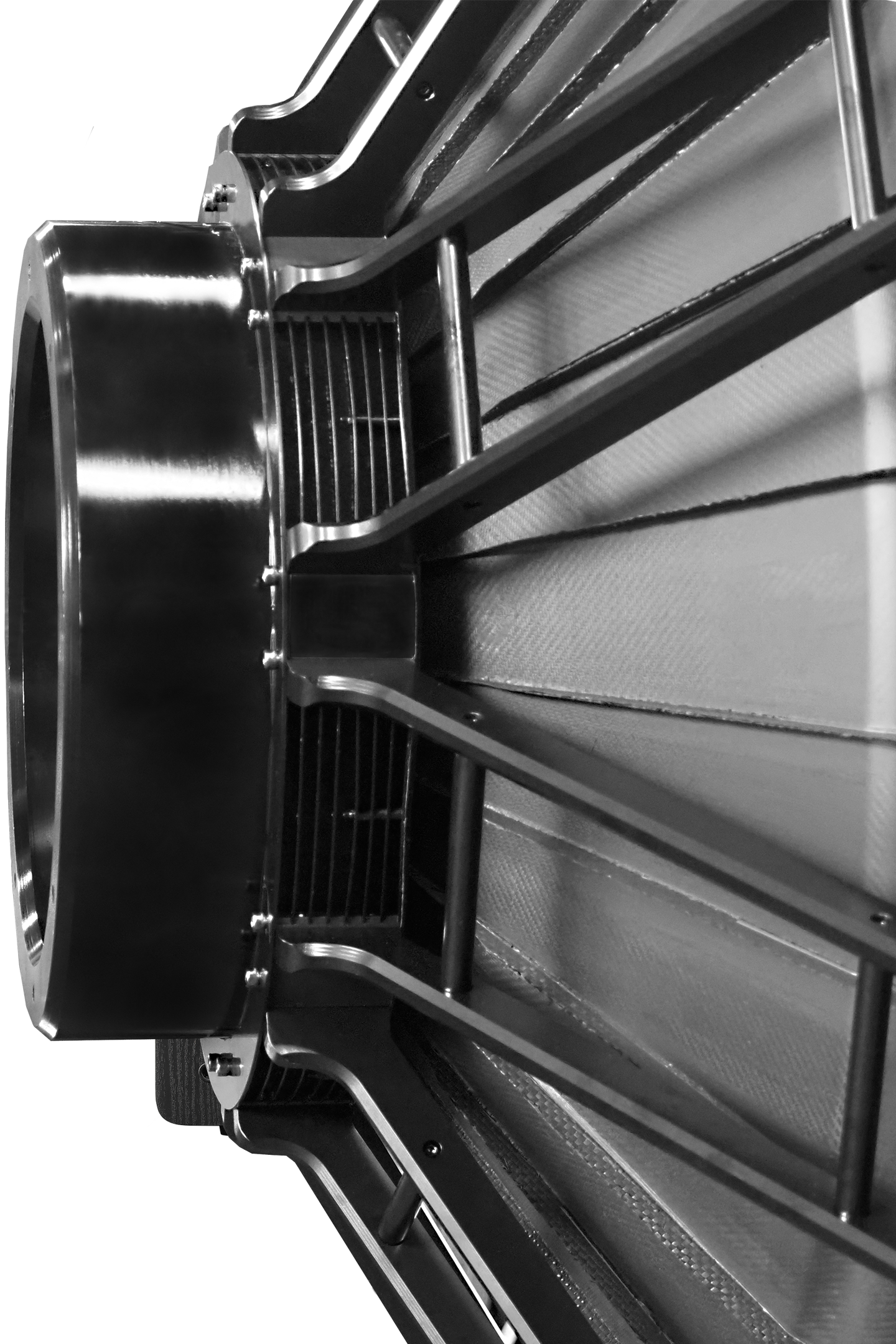

The motor is a dual 21-inch voice coil with 39 mm of excursion in each direction, held in a homogeneous magnetic field throughout that travel. Paired with a critically damped sealed alignment and a very low resonance frequency, it produces the low group delay that matters more than raw output below 10 Hz — a subwoofer that arrives and stops on time at frequencies most systems cannot reach at all.

This is not a product anyone specifies casually. It belongs in rooms designed around it from the start, and the conversation begins with the architecture rather than the equipment rack.

Featured Specs

General Specs

Series

PRO — Passive Infrasonic Sealed

Driver

Custom-built 100-inch woofer, dual 21-inch voice coil

XMAX

39 mm each direction, voice coil remaining in a homogeneous magnetic field

Alignment

Sealed, passive, critically damped

SPL Peak (Half Space 2pi)

146 dB continuous / 150 dB peak — calculated example, enclosure dependent

Frequency Range

1 Hz – 100 Hz — calculated example, enclosure dependent

Power Handling

20,000 W

Efficiency

105 dB / 1 W/m 2 pi

Impedance

Dual voice coil, 4 Ω each

Max Linear Air Volume Displacement

277.93 L | 73.42 US liquid gallons

Recommended Amplification

Rack mount, 2 × 5,000 W up to 2 × 11,000 W AES67; AIA2-10K2 IS with DSP4-D included

Input

Binding posts

Dimensions, Driver Only (W/H/D)

2360 | 2360 | 775 mm — 92 15/16 | 92 15/16 | 30 1/2 inch

Weight

260 kg | 573.20 lbs (gross 410 kg | 903.89 lbs)

Enclosure

Complete custom design for the installation, built locally by dealer or contractor, minimum 10 m³

Supersedes

The80 SUB PRO Passive Infrasonic Sealed, replaced July 2025

Origin

Designed and built in Heilsbronn, Germany
