Ascendo

Ascendo The64 SUB PRO

Built to Order · Enclosure Constructed On-Site

Contact Us

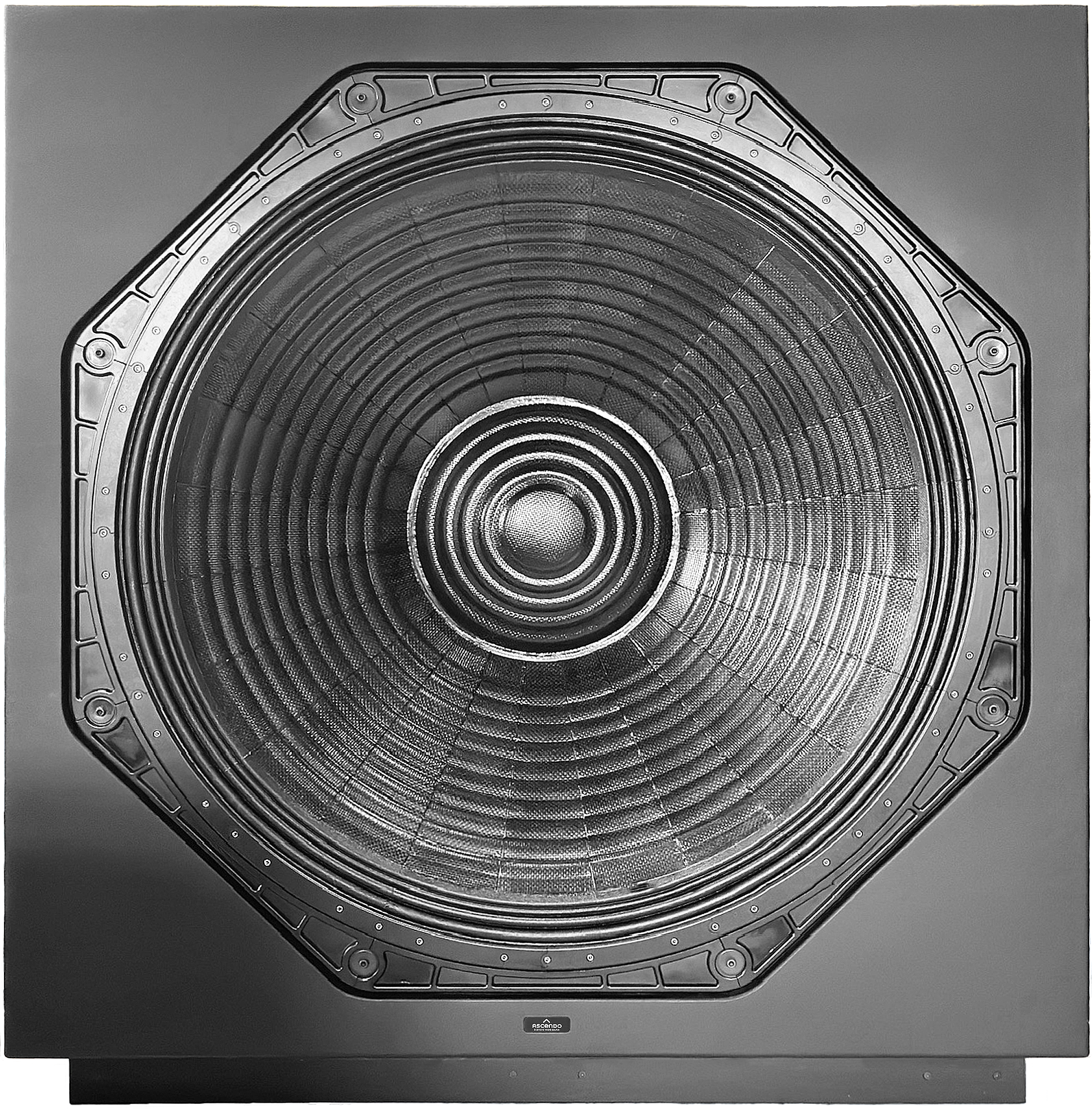

A custom 64-inch woofer on dual 13.5-inch voice coils reaching 5 Hz — the second-largest cinema subwoofer driver built, enclosure made on site.

Product Details

Description

The64 replaced the 50-inch model in July 2025. As with The100, the number went up without the driver getting proportionally larger — Ascendo switched to the professional convention of measuring the driver basket rather than the cone. It is the second-largest cinema subwoofer driver built, behind only The100.

The generational change was in the moving parts. A quad-spider suspension, repositioned and rebuilt with different fabrics and resins, allows more excursion with higher compliance and quieter operation at the extremes of travel. A single-piece surround with revised geometry supports that longer stroke, and multi-density internal damping lowers the system's resonance frequency and Q. Cabinet depth went to 100 cm to extend the response further down.

The practical addition matters as much: a field-replaceable re-cone kit. On a driver this size, being able to service it in the room rather than remove it is the difference between a repair and a demolition.

Enclosure is custom per room, minimum 2 cubic metres, built locally to Ascendo's specification — which also means the published output figures are an example rather than a promise. It runs on 10 to 22 kW of DSP-controlled amplification through Ascendo's Speaker Management Technology, and it is specified to stay in phase with the audible-range PRO subwoofers sitting above it.

Featured Specs

General Specs

Series

PRO — Passive Infrasonic Sealed

Driver

Custom-built 64-inch woofer, dual 13.5-inch voice coil

XMAX

39 mm each direction, voice coil remaining in a homogeneous magnetic field

Alignment

Sealed, passive, ultra-rigid braced

SPL Peak (Half Space 2pi)

143 dB continuous / 148 dB peak — calculated example, enclosure dependent

Frequency Range

5 Hz – 100 Hz — calculated example, enclosure dependent

Power Handling

20,000 W

Efficiency

101 dB / 1 W/m 2 pi

Impedance

Dual voice coil, 4 Ω each

Max Linear Air Volume Displacement

105.13 L | 27.77 US liquid gallons

Recommended Amplification

Rack mount, 2 × 5,000 W up to 2 × 11,000 W AES67; AIA2-10K2 IS with DSP4-D included

Input

Binding posts

Dimensions, Driver Only (W/H/D)

1500 | 1500 | 596 mm — 59 1/16 | 59 1/16 | 23 7/16 inch

Weight

160 kg | 352.74 lbs (gross 250 kg | 551.16 lbs)

Enclosure

Complete custom design for the installation, built locally by dealer or contractor, minimum 2 m³

Supersedes

The50 SUB PRO Passive Infrasonic Sealed, replaced July 2025

Origin

Designed and built in Heilsbronn, Germany
