The top of the Wisdom Series — a single 80-inch planar magnetic line source covering eight octaves on PEEK thin film, over 130 dB at twelve feet.

Product Details

Description

The LS4 is the top of Wisdom's namesake Wisdom Series and the fullest expression of what the company does. A single 80-inch planar magnetic line source covers eight octaves, and one LS4 will produce in excess of 130 dB at twelve feet — output figures that belong to horn-loaded professional cinema systems rather than to anything that can disappear into a wall.

The reason to use a line source at that height is behavioural rather than statistical. A tall column radiates uniformly across the width of a room and largely eliminates floor and ceiling reflections, so timbre stays consistent from seat to seat and level falls off far more slowly with distance than it does from a point source. In a room with three rows, that is the difference between one good seat and nine.

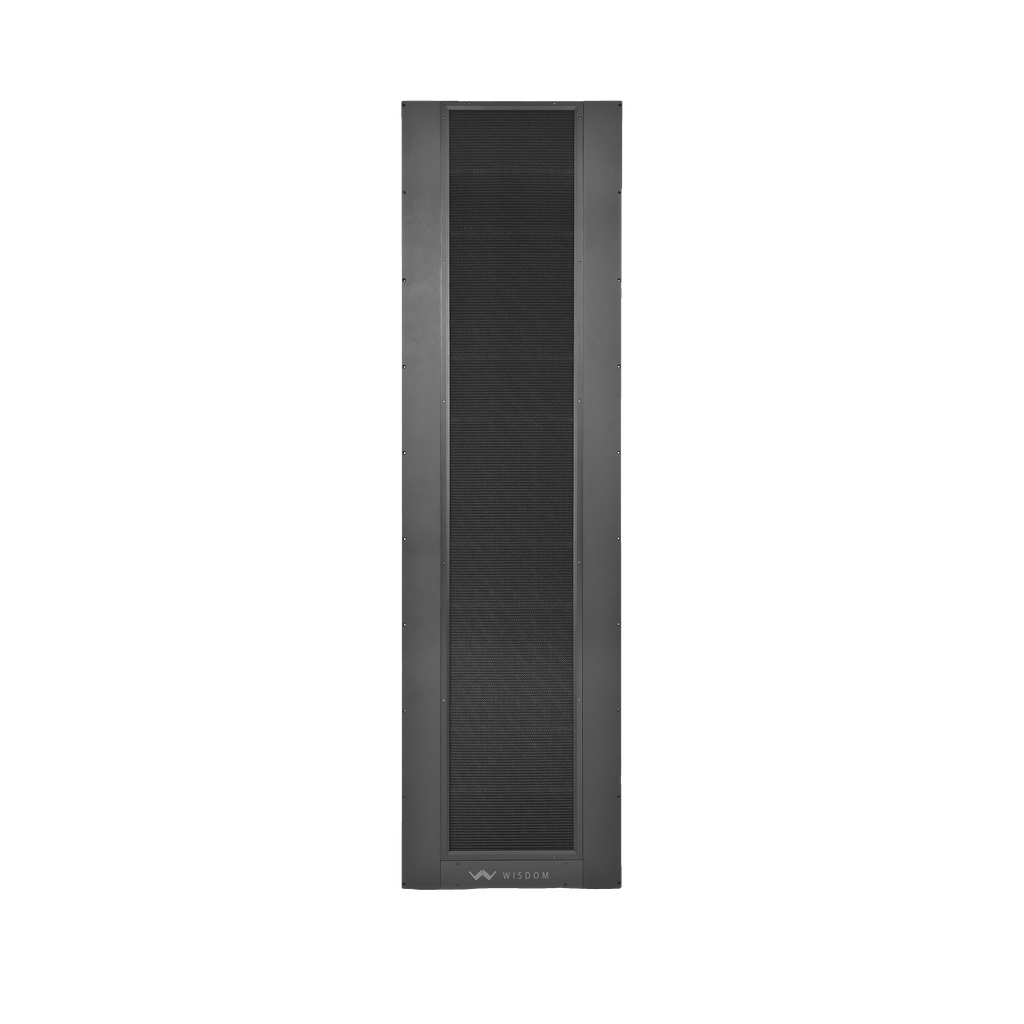

It is offered free-standing as the LS4, on-wall as the LS4m and in-wall as the LS4i, with the in-wall version stackable and intended to sit behind an acoustically transparent screen. The diaphragm is a lightweight PEEK film, and custom colours are available. Which configuration a room takes is an architectural decision as much as an acoustic one.

Featured Specs

General Specs

Type

Two-way planar magnetic line source loudspeaker

Line Source Height

80 inches

Maximum SPL

Over 130 dB at 12 feet, single unit

Diaphragm Material

PEEK thin film

Configurations

LS4 free-standing, LS4m on-wall, LS4i in-wall

Stacking

LS4i is stackable for greater output

Screen Compatibility

Designed for installation behind an acoustically transparent screen

Roles

Left, centre, right or surround

Finishes

Custom colours to order

Origin

Designed and built in Carson City, Nevada
