Linn

Linn Klimax Solo 500 Monoblock Amplifier

Available to Order · Hear It in Tempe

32380

Contact Us

The Klimax monoblock beneath the Solo 800 — 250W into 8Ω, 500W into 4Ω, THD+N of 0.0004%, FPGA-managed cooling. On demo in Tempe.

Product Details

Description

The Klimax Solo 500 is Linn's Klimax-tier monoblock power amplifier, introduced in 2025 - a complete redesign from fundamentals of the original Klimax Solo, Linn's most successful amplifier ever. Every cubic millimeter of the chassis has been maximized to create an amp that outperforms its legendary predecessor in every conceivable way, in an enclosure compact enough to sit on a standard equipment rack shelf.

It delivers 250W into 8Ω and 500W into 4Ω with THD+N of 0.0005% at full rated power - vanishingly close to its larger sibling. The Solo 500 shares the Solo 800's two defining technologies: Adaptive Bias Control, which continuously monitors and digitally adjusts output-stage bias via FPGA rather than relying on a factory-set fixed value, and the Utopik soft-switching power supply with auto-voltage rails that adapt in real time to the audio signal. A third innovation is unique to the Solo 500: the Hybrid Cooling Matrix, an FPGA-managed fan system whose speed is determined by both measured internal temperature and the incoming audio signal, keeping the fans inaudible at all times.

For buyers building a passive-speaker system based on 360 PWAB or another reference floorstander, the Solo 500 delivers Klimax-tier amplification character at a step below the flagship pricing. Precision-machined aluminum chassis, handmade in Glasgow. Available at LMC — walk in during business hours or book ahead.

Featured Specs

General Specs

Type

Klimax Solo 500 - Linn monoblock power amplifier, complete ground-up redesign of the original Klimax Solo, introduced 2025

Power Output

250W into 8Ω · 500W into 4Ω (rated)

THD+N

0.0004% at 1kHz / 250W into 8Ω · 0.0005% at 1kHz / 500W into 4Ω

Bandwidth

88kHz (balanced) · 97kHz (unbalanced)

Output Impedance

0.01Ω at 1kHz

Gain

28.6dB unbalanced · 22.6dB balanced

Inputs

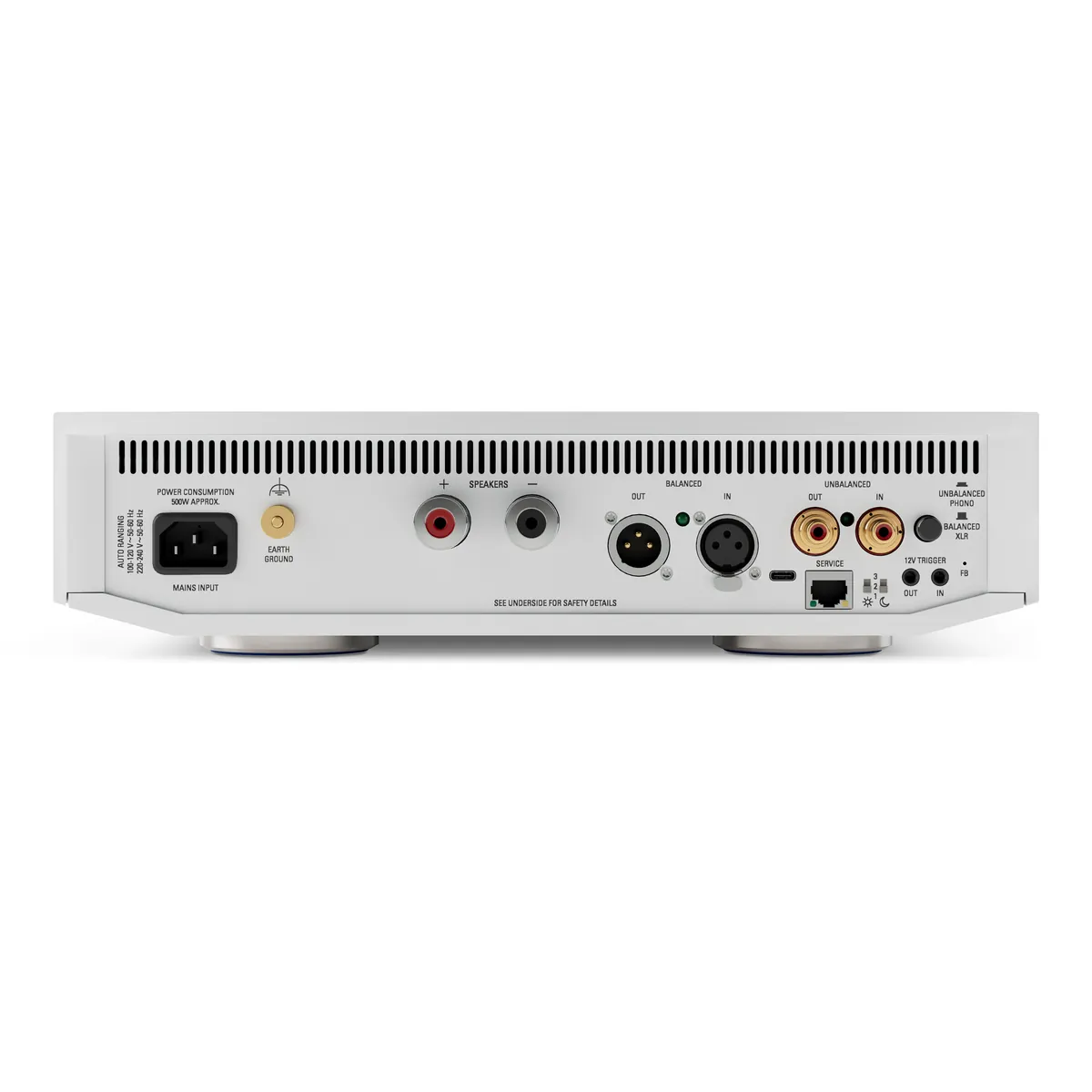

Balanced XLR and unbalanced RCA, each with passthrough; 12V trigger in/out; LAN service input

Power Supply

Utopik soft-switching topology with auto-voltage rails (±30V to ±75V) adapting in real time to the audio signal; 44W idling, 270W maximum continuous

Bias

Adaptive Bias Control - FPGA-managed digital control loop holding output-stage bias at optimum, compensating for component aging

Cooling

Hybrid Cooling Matrix - FPGA-controlled fans governed by internal temperature and input signal, inaudible in operation

Dimensions

350mm W × 89mm H × 364mm D

Weight

10.6kg

Finishes

Anodized silver or black

Warranty

5 years - designed and built in Glasgow, Scotland

Position in Range

Below the Klimax Solo 800 (400W/8Ω flagship); both share Adaptive Bias Control and Utopik power supply technology

Finishes

Come Hear It

Visit the Showroom

See and hear this in one of our reference rooms. Walk in or book ahead, in Scottsdale or Tempe.
