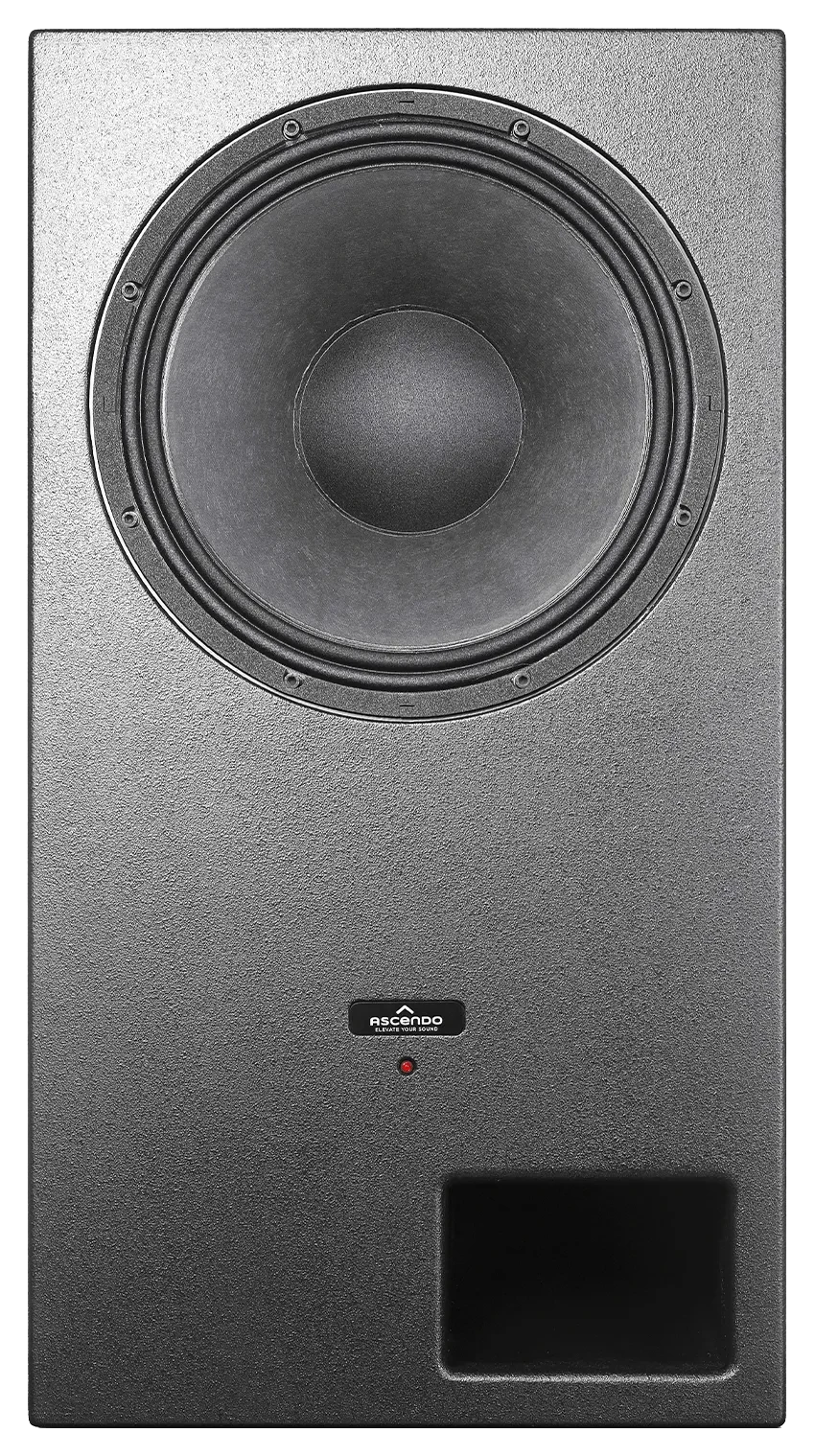

Ascendo The15 PRO Coaxial Screen Channel
Available to Order
Contact UsThe screen channel for a large room — a 15-inch coaxial with a treated titanium-dome compression driver on a 3-inch voice coil, 125 dB continuous.
Product Details
Description
The15 PRO PASSIVE ON WALL is the screen channel for a large room. A 15-inch axisymmetric point source is a great deal of radiating area to keep coherent, and the reason Ascendo can is the coaxial arrangement — the tweeter sits at the acoustic centre of the mid-woofer, so the two arrive together rather than a few centimetres and a few microseconds apart.
The crossover is where the PRO designation earns its name. Flat wound OFC copper air core coils and silver capacitors work with the enclosure and the driver as one system, and the audible result is impulse response: the loudspeaker starts and stops with the signal instead of ringing after it.
Each channel handles the full dynamic span a reference-level film demands, from a whispered line to an effect that moves air. It serves as left, centre and right in a large theatre, or as a surround in a very large one.
Featured Specs
Series
PRO
Driver
15-inch time-coherent point-source coaxial, vented
Tweeter
Treated titanium dome compression driver, 3-inch voice coil, centrically arranged behind the mid-woofer
Output
125 dB continuous, 135 dB peak (half space)
Frequency Range
70 Hz – 21 kHz (-3 dB)
Efficiency
96 dB / 1 W / 1 m · 900 W power handling
General Specs
Series
PRO
Type
15-inch time-coherent point-source coaxial
Principle
Vented, passive
Woofer
15-inch
Tweeter
Treated titanium dome compression driver, 3-inch voice coil diameter
SPL
125 dB continuous, 135 dB peak (half space)
Frequency Range
70 Hz – 21 kHz (-3 dB)
Power Handling
900 W
Efficiency
96 dB / 1 W / 1 m half space
Impedance
8 ohms
Directivity
85 degrees horizontal x 85 degrees vertical
Input Terminal
Neutrik Speakon
Dimensions
470 mm W x 870 mm H x 240 mm D without grille (250.2 mm with)
Weight
35.5 kg (78.26 lbs)
Enclosure
Internally braced birch ply and MDF
Finish
Structural paint black
Mounting
Three wall brackets for horizontal and vertical installation, with VESA 200 x 200 option
Crossover Components
Highest grade flat wound OFC copper air core coils with silver capacitors
Recommended Amplification
AIA2-2704, AIA2-6004, AIA4-2404, AIA4-6004 or AIA8-6004
Grille
Front cover supplied as standard
Origin
Designed and built in Heilsbronn, Germany
