Analog Audio Design TR-1000
Available to Order
Contact UsAnalog Audio Design’s flagship record-and-play deck — 1/4-inch two-track at 15 or 7.5 ips, switchable NAB or IEC, with dual VU meters.
Product Details
Description

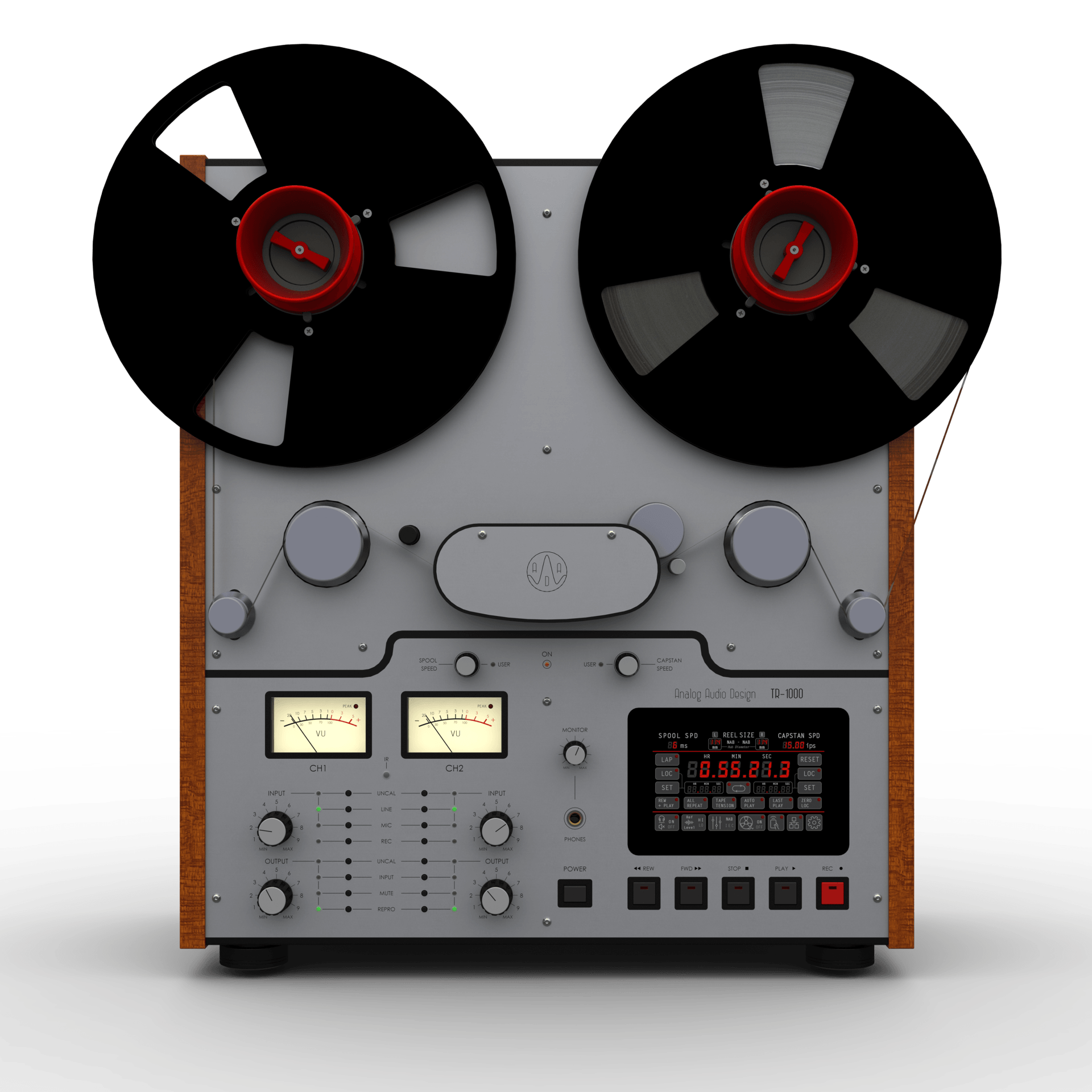

The TR-1000 is Analog Audio Design's flagship record-and-play reel-to-reel machine — a 1/4-inch 2-track deck built to the same mechanical and electrical standard as the Golden Ear-winning TP-1000, with the addition of a full recording chain. For the studio, the mastering engineer, or the reference-tier home system that wants to make its own tapes from master sources, the TR-1000 is the current production point of entry to a new-build French machine at this level.
The transport is belt-driven with a DC servo capstan and Swiss-made low-torque DC reel motors, running to 30 cm reel diameter. Speed accuracy holds to ±0.05%. NAB and IEC equalization are switchable. Physical transport controls — forward, rewind, play, record — sit below a large touchscreen. Every operational parameter, from tape tension to end-of-tape auto-rewind, is settable from the touchscreen or via Ethernet from a tablet, phone, or web browser.
The cabinet uses classic reel-to-reel design language: wood, recessed side handles, dual VU meters on the front panel. Manufactured in Pleumeur-Bodou, Brittany.
Featured Specs
Configuration
Reel-to-reel tape recorder — record and playback
Tape Format
1/4 inch (6.35mm), 2-track, DIN 0.106 inch
Speeds
15 ips and 7.5 ips, switchable
Equalization
NAB or IEC, switchable
Cabinet
Wood with recessed side handles, dual VU meters, touchscreen + physical transport controls
General Specs
Configuration
Reel-to-reel tape deck — record and playback
Tape and Format
1/4 inch (6.35mm), 2-track, DIN 0.106 inch (2.7mm)
Max Reel Size
11.8 in (30 cm)
Speeds
15 ips and 7.5 ips, switchable
Speed Accuracy
±0.05%
Wow and Flutter
<0.045% peak at 15 ips (DIN 45507)
Frequency Response
30 Hz – 22 kHz (±2 dB) at 15 ips
Motors
DC servo capstan · belt drive · Swiss-made low-torque DC reel motors
Control
Touchscreen with adjustable tape tension, timers, labels, end-of-tape auto-rewind · Ethernet for firmware and browser/tablet/phone remote · IR remote
Cabinet
Wood with recessed carrying handles, dual VU meters on front panel
Origin
Made in Pleumeur-Bodou, Brittany, France
Finishes
