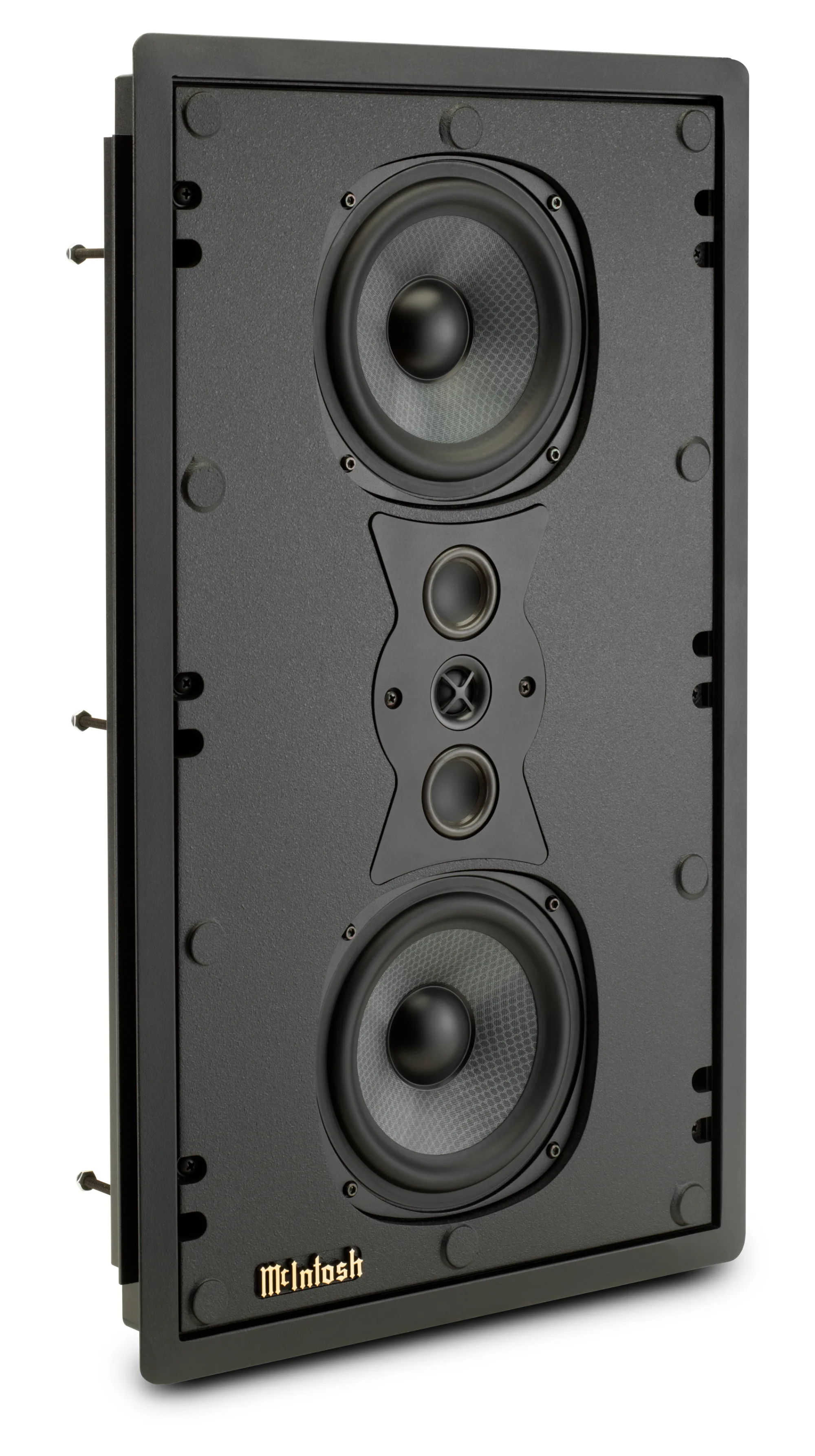

McIntosh WS500 In-Wall Loudspeaker

Available to Order

$3,000

Contact Us

A fully enclosed 3-way in-wall loudspeaker — two 6.5-inch woofers, two 2-inch inverted titanium-dome midranges and a 3/4-inch tweeter, 250 W handling.

Product Details

Description

The McIntosh WS500 is a fully enclosed 3-way in-wall loudspeaker built for front, center, or surround duty in both 2-channel distributed audio and home theater. Two 6.5-inch woofers, two 2-inch inverted titanium-dome midranges, and one 3/4-inch titanium-dome tweeter share a controlled air chamber that keeps distortion and response irregularities in check — the same engineering standard McIntosh applies to its floor-standing and bookshelf lines, built into a wall cavity.

A shallow, long-throw woofer design fits standard 2x4 wall construction without furring or a custom cavity, and the paintable, nearly invisible grille disappears into any room. Voice-matched to the WS300 and CS200, so a front stage or whole-house system built from any combination stays tonally continuous. Pairs naturally with the MI128 or MI254 distribution amplifiers. Available at LMC — walk in during business hours or book ahead.

Featured Specs

General Specs

Type

3-way in-wall loudspeaker, fully enclosed with controlled air chamber

Woofers

2 x 6.5" (165mm), shallow long-throw design, molded carbon-reinforced cones

Midranges

2 x 2" (50mm) inverted titanium dome

Tweeter

1 x 3/4" (19mm) titanium dome

Depth

3.625 in — fits standard 2x4 wall construction

Power Handling

Up to 250 Watts

Grille

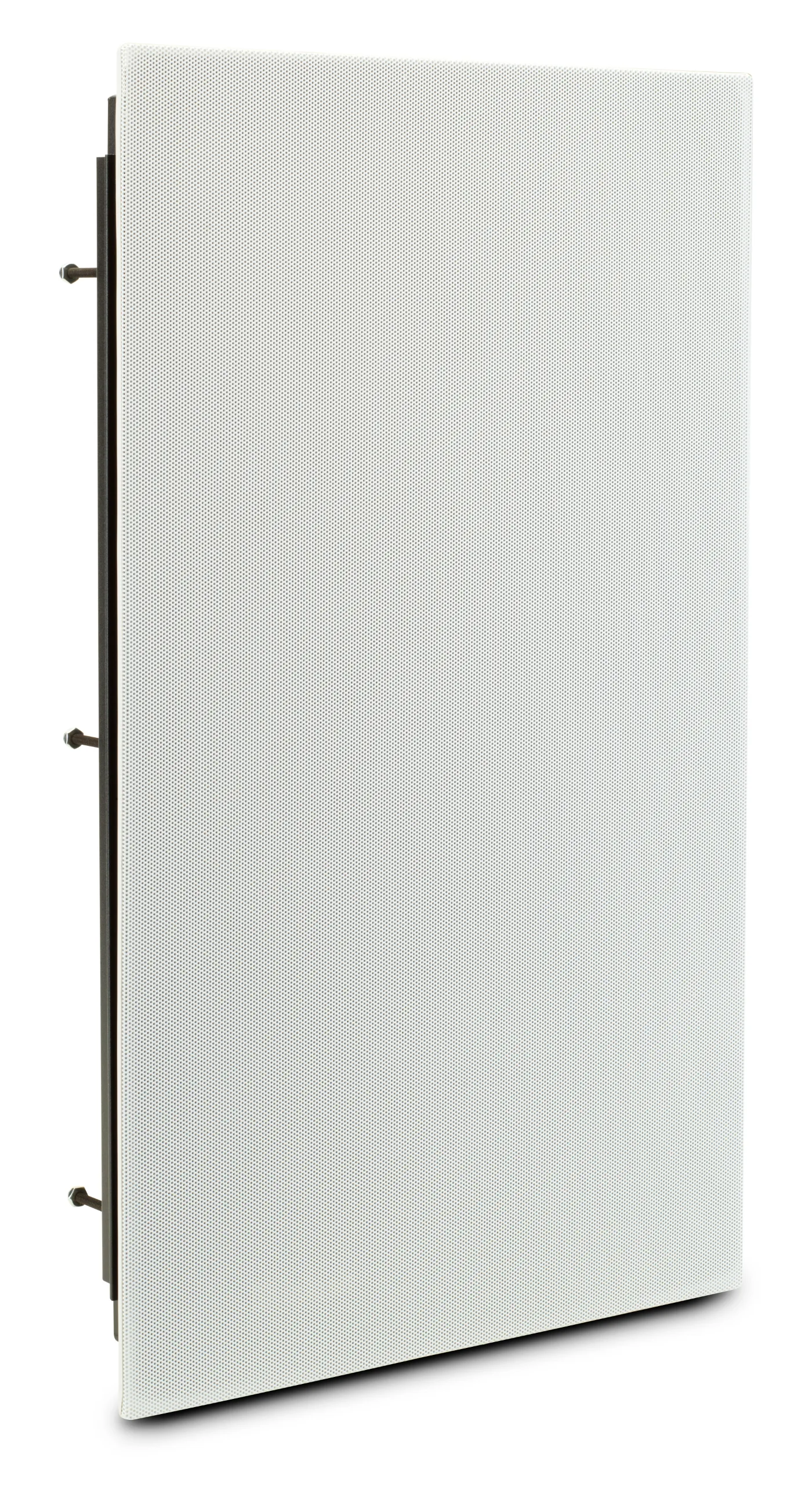

Paintable, magnetically attached, nearly invisible

Voice Matching

Matched to WS300 in-wall and CS200 in-ceiling speakers

Recommended Amplification

MI128 or MI254 distribution amplifier

Application

Front, center, or surround channel in home theater; stereo pair for 2-channel distributed audio

Finishes
