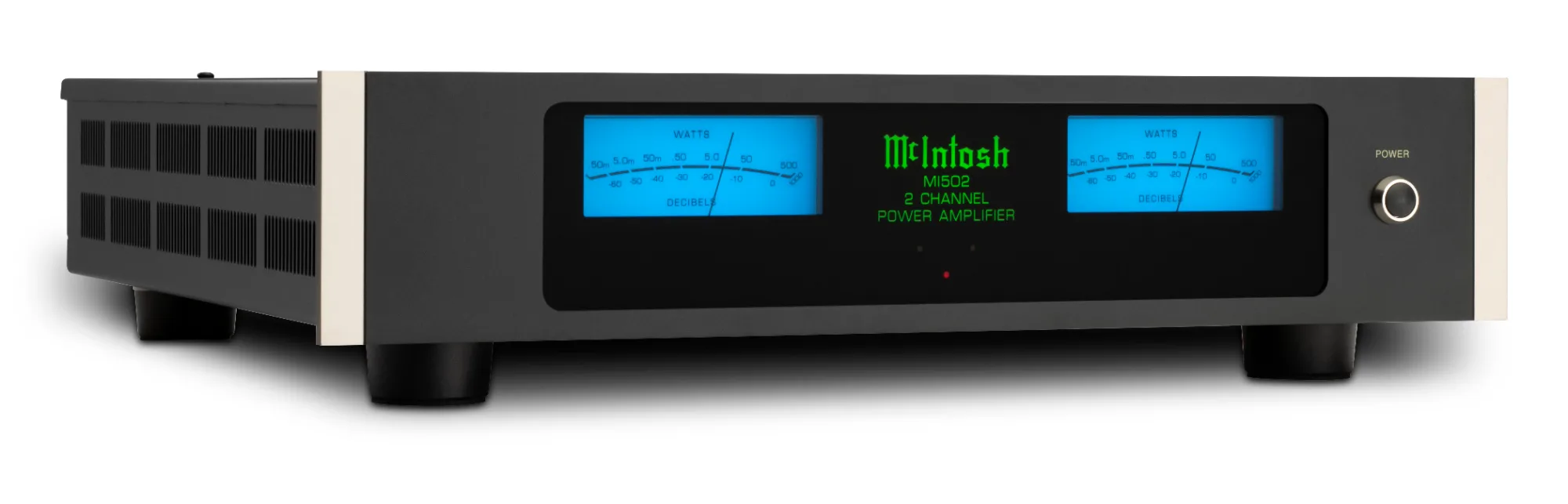

McIntosh MI502 2-Channel Digital Amplifier
Available to Order
$5,000
Contact UsTwo channels of distributed-audio power — 500W into 8 ohms, 800W into 4, in a fanless closed-loop Class D design built to be racked and forgotten.
Product Details
Description

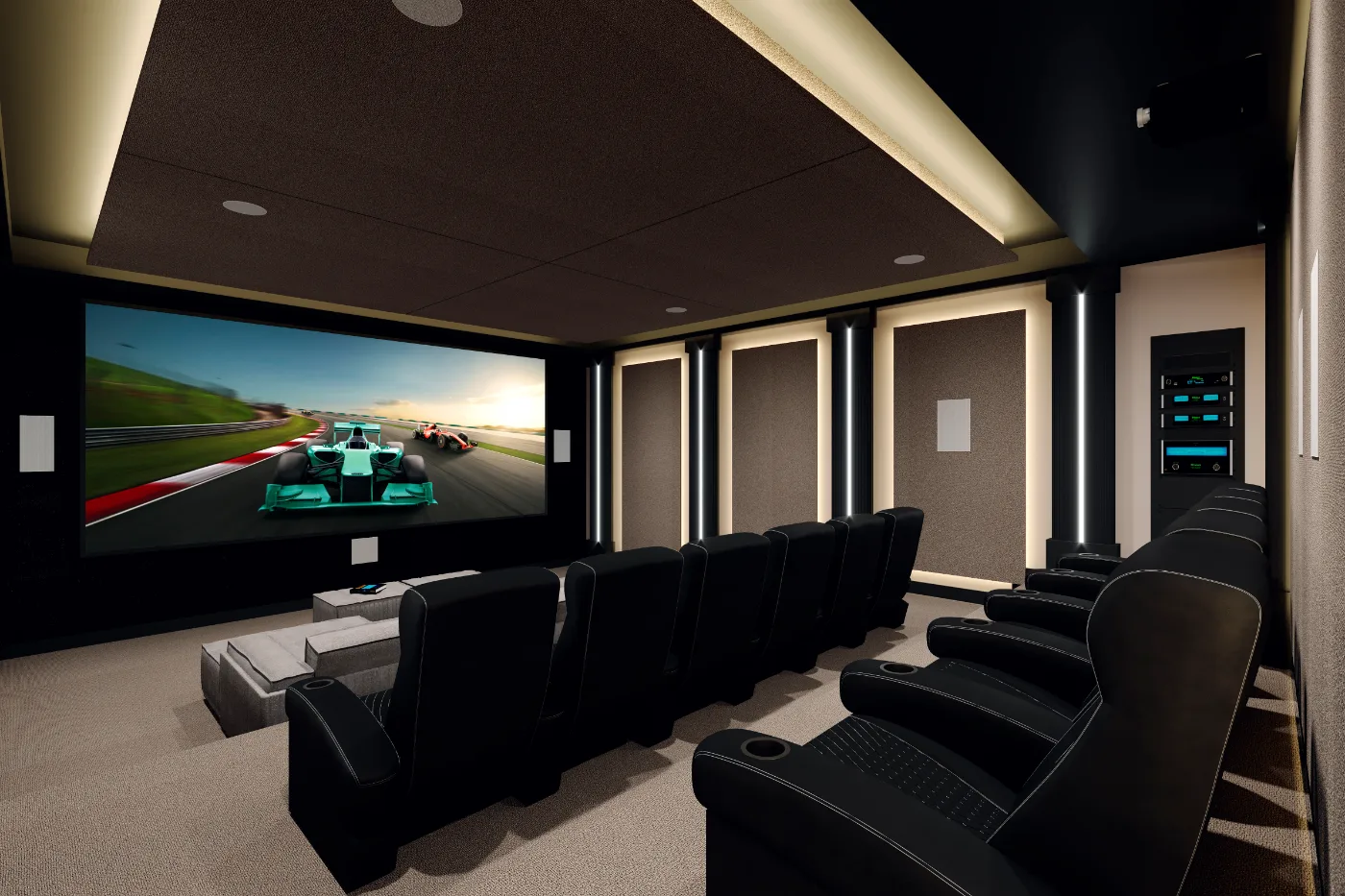

The McIntosh MI502 is a 2-channel distribution amplifier built for the systems that live outside the main listening room — whole-home audio, outdoor zones, or as amplification behind the McIntosh WS500, WS300, and CS200 in-wall and in-ceiling speakers. Closed-loop digital switching amplification paired with a genuinely robust power supply delivers 500 watts into 8 ohms or 800 watts into 4 ohms — output most distributed-audio amplifiers don't approach.

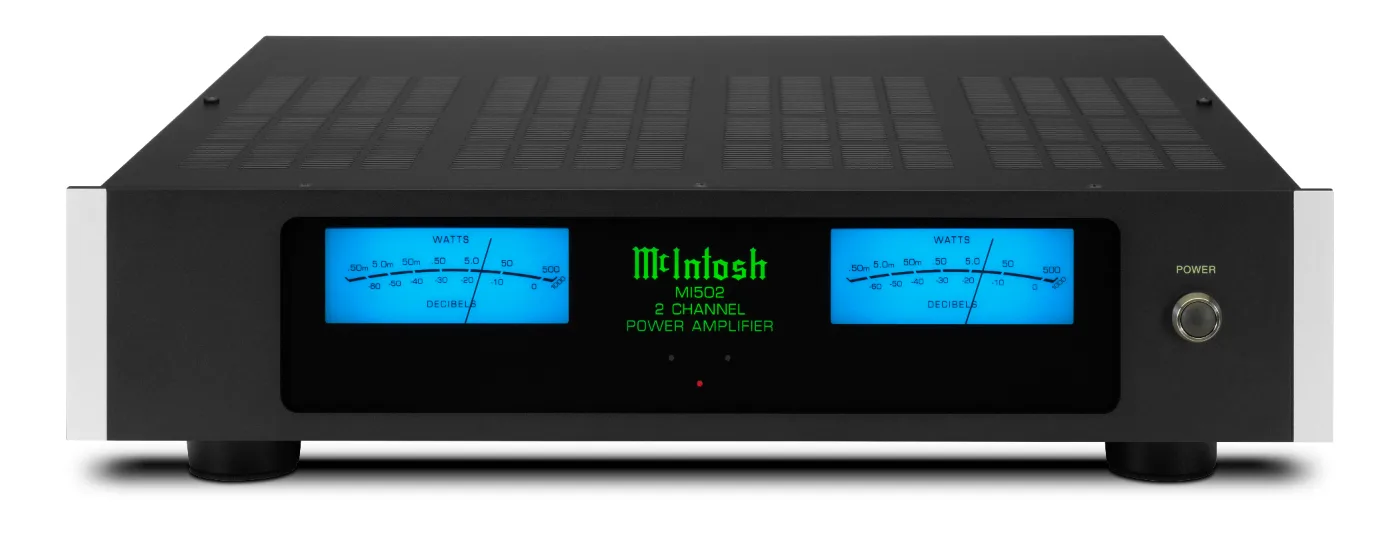

As a Class D design it runs cool enough to skip fans entirely, and its 2U rack-mountable chassis (with removable mounting ears for non-rack installs) carries the same black-glass front and blue McIntosh watt meters as the reference amplifiers upstairs. Power Guard and Sentry Monitor protect the connected speakers; balanced and unbalanced inputs connect to any McIntosh preamplifier or the CR106 matrix. Available at LMC — walk in during business hours or book ahead.
Featured Specs
Output Power
500W into 8Ω / 800W into 4Ω
Topology
Closed-loop digital (Class D) switching amplification, fanless
Chassis
2U rack-mountable, removable mounting brackets
McIntosh Technologies
Power Guard®, Sentry Monitor™
General Specs
Configuration
2-channel distributed-audio power amplifier
Output Power
500W into 8Ω / 800W into 4Ω
Topology
Closed-loop digital switching (Class D) — fanless, cool-running

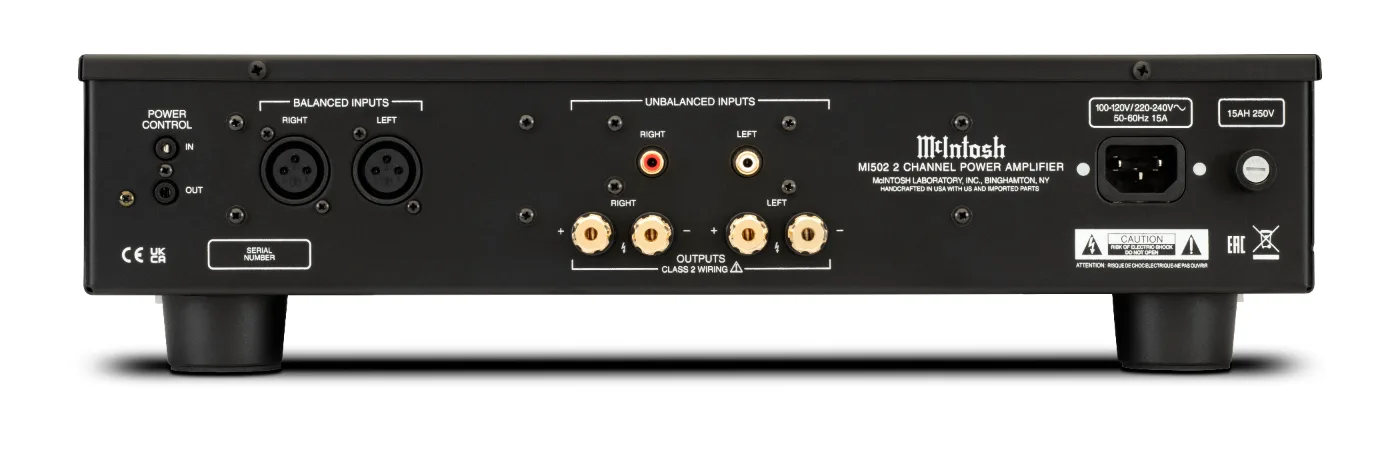

Inputs
Balanced and unbalanced
Chassis
2U rack-mountable with removable mounting ears
Protection
Power Guard® signal overload protection; Sentry Monitor™ output protection
Application
Home theater, outdoor audio, and distributed multi-room systems — pairs with WS500, WS300, and CS200 speakers
Finishes
