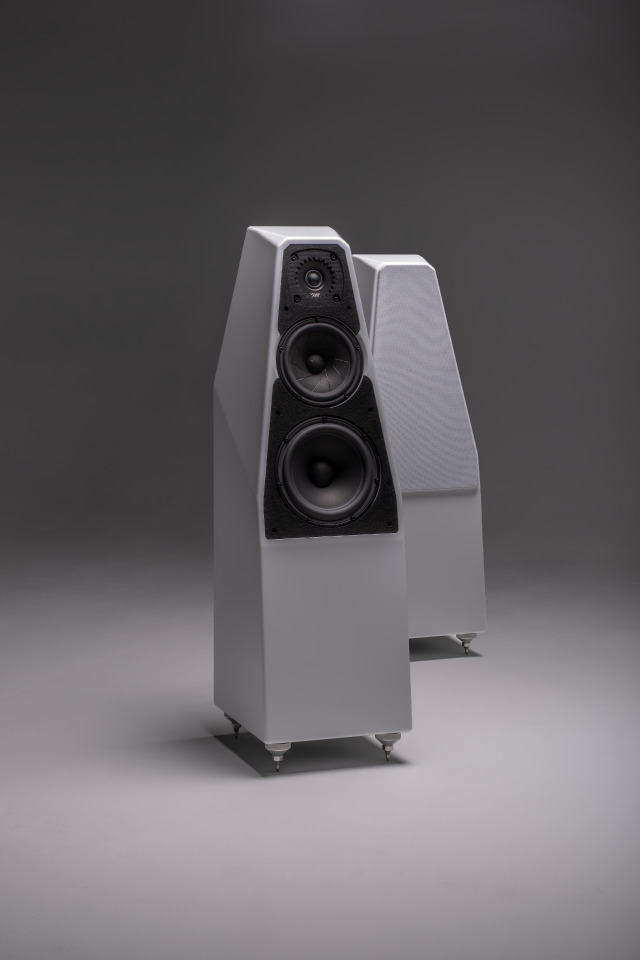

Wilson Audio Sabrina V Loudspeaker

Description

Foundations of Excellence: Where Greatness Begins

Foundations of Excellence: Where Greatness Begins offers an inside look at the initial stages of crafting a Wilson Audio loudspeaker. The process begins with expert craftsman Quade gluing, assembling, and clamping a Sabrina V cabinet, constructed entirely from Wilson Audio’s proprietary X, V, and H-Materials—establishing the inert structural cornerstone essential to its performance.

Features

Materials

Sabrina V pioneers a groundbreaking addition to the Wilson Audio materials library: H-Material. Developed as a high-density composite with organic and phenolic properties, this front baffle advancement sets a new benchmark in performance engineering. H-Material is similar to X-Material in inflexibility, yet slightly softer with different construction, which lends itself to be more musical in the mid-range than SabrinaX with its use of X-Material as a baffle substrate.

Drivers

At the heart of the Sabrina V lies a symphony of advanced driver technologies shared with Wilson Audio’s most celebrated flagships. The Convergent Synergy Carbon (CSC) tweeter, originally developed for the Alexx V, delivers an astonishingly natural high-frequency response. This lightly coated textile dome tweeter seamlessly blends with the AlNiCo mid-range and 8-inch woofer. The CSC offers extended linearity, refined harmonic detail, and a natural sense of acoustic space.

Wilson Audio has integrated its beloved 7-inch AlNiCo (Aluminum – Nickel – Cobalt) QuadraMag mid-range driver into its smallest floorstanding loudspeaker, the Sabrina V. Originally, it was developed for the Chronosonic XVX and utilized in the Alexx V, Alexia V, Sasha V, and The WATT/Puppy. The AlNiCo QuadraMag driver is renowned for its exceptional ability to settle and maintain linearity resulting in greater depth and dimensionality.

The same 8” woofer used in the Sasha V and The WATT/Puppy anchors the low frequencies and foundation of the Sabrina V system. This driver is specifically chosen for its agility and authority resulting in bass that is articulate, textured, and intimately tied to the rhythm of the music.

Hardware & Resistor Access

Refining the rear bass port dimensions and the mid-range vent geometry has revealed deeper, more natural low frequencies while filling your room with warmth and soundstage dimension.

New rear-panel resistor access simplifies service and tuning— a welcome shift from the previous Sabrina bottom-mount approach. Resistors are secured with high quality tool-less thumbscrews, which makes tweeter and mid-range resistor changes swift and intuitive. This new access point on the back of the enclosure is accentuated with a beautifully machined aluminum frame with the Sabrina V logo.

V-MCD

Taking a page from the Wilson Audio Acoustic Diode design, V-Material has been nested and integrated into the bottom of the Sabrina V enclosure where the spike diode interfaces. This upgraded isolation technology (V-MCD) and enhanced vibration control provide an even quieter background, letting your favorite recordings unfold effortlessly. This is music reproduction at its finest — it feels deeper and more alive. If there are room related issues with vibration management, Sabrina V’s spike thread size enables an easy and direct upgrade path to Wilson Audio Acoustic Diodes if one wishes to further enhance the isolation in their system.

AudioCap Copper Capacitors

A newly engineered copper version of the AudioCapX-WA, a variant first introduced in Sasha V, now includes a copper end-spray. This refinement improves high-frequency micro-detail and spatial clarity, resulting in a more articulate and natural sonic presentation.

Bass integration is also enhanced through the development of a new woofer capacitor, structurally aligned with Wilson Audio’s exclusive mid-range capacitors. This upgrade creates a cohesive, tonally balanced transition from low to mid frequencies — a hallmark of the Sabrina V’s remarkably lush and immersive sound profile.

Specifications

Drivers

Woofers
One—8 inches (20.32 cm) Paper Pulp
Midrange
One—7 inches (17.78 cm) Paper Pulp Composite
Tweeter
One—1 inch (2.54 cm) Doped Silk Fabric

Enclosures & Materials

Enclosure Type Woofer
Rear Ported
Enclosure Type Midrange
Rear Ported
Enclosure Type Tweeter
Sealed

Measurements

Sensitivity
87 dB @ 1 Watt @ 1 meter @ 1 kHz
Nominal Impedance
4 ohms / minimum 2.23 ohms @ 121 Hz
Minimum Amplifier Power
50 Watts per channel
Frequency Response
27 Hz – 24 kHz +/- 3 dB Room Average Response [RAR]

Dimensions

Height
38 31/32 inches (98.98 cm) w/o spikes
Width
12 inches (30.48 cm)
Depth
15 3/8 inches (39.07 cm)
System Weight Per Channel
123 lb (55.79 kg)
Approximate Shipping Weight
310 lb (140.61 kg)
