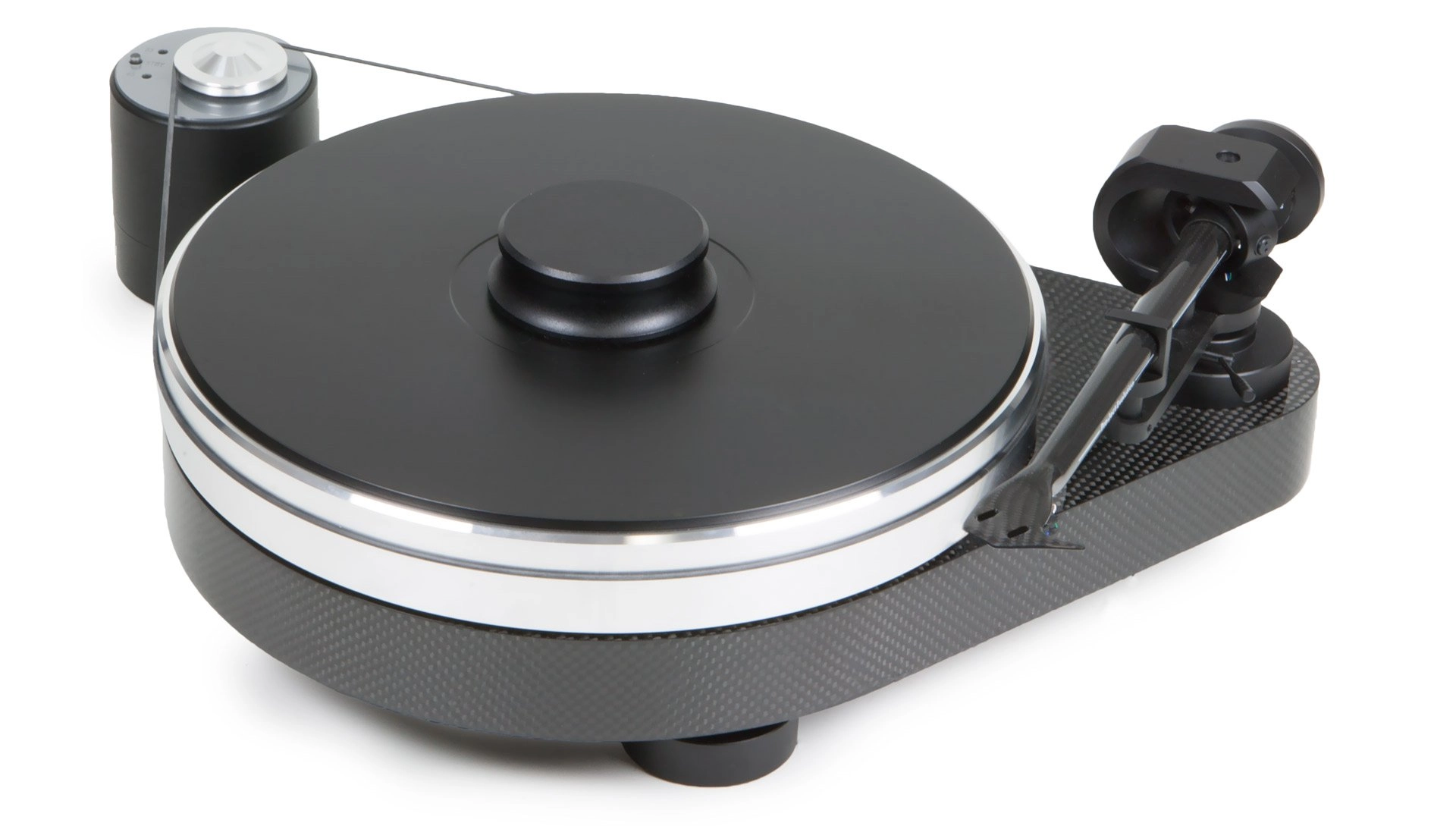

RPM 9 Turntable
$3,999.00
Extensive research and development has brought us the RPM 9 Carbon that we know today. The high-mass CNC-machined chassis is made from resonance-absorbing MDF and filled with hard-resin-coated steel pellets to form an ultra-massive base. A complex heat treatment and carbon fiber surface coating ensure minimal resonance levels. The mass-loaded chassis is effectively decoupled from its surface with opposing-magnetic feet. Combined with an internally damped, polished aluminum platter with vinyl top, the inverted ceramic main bearing delivers absolute stability of platter speed with minimal rumble.
Features
- Carbon-wrapped MDF plinth mass-loaded with steel pellets
- Plinth manufactured with thermo treatment
- Plinth suspended on opposing magnets in isolation feet
- Inverted main bearing with ceramic ball/plate
- Acoustically inert 7.2kg aluminum platter
- TPE-damped platter with integrated vinyl record mat
- DC power supply w/ AC motor
- DC-driven AC generator (“Speed Box” technology)
- 33/45rpm electronic speed control
- Outboard motor with massive aluminum base
- Pre-mounted EVO 9 CC carbon fiber tonearm
- 5-pin DIN balanced output
- DIN > RCA cable included (balanced DIN > XLR available separately
- Handmade in Europe
Specs
- Speeds: 33/45rpm (electronic speed change)
- Drive principle: belt drive
- Platter: 7.2kg, 300mm diameter (TPE-damped aluminum)
- Mains bearing: inverted stainless steel w/ ceramic ball/plate
- Wow & flutter: +/-0.60% (33rpm), +/-0.60% (45rpm)
- Speed drift: +/-0.10% (33rpm), +/-0.10% (45rpm)
- Signal to noise: 73dB
- Tonearm: EVO 9 CC w/ carbon fiber armtube
- Effective arm length: 230mm
- Effective arm mass: 8g
- Overhang: 18mm
- Tracking force range: 0-35mN (0-3.5g)
- Included: 15V DC 800mA power supply
- Power consumption: 13W max, <0.3W standby
- Dimensions (WxHxD): 440 x 180 x 325mm
- Dimensions (standard): 17.32 x 7.09 x 12.80″
- Mass (weight): 16.5kg (36.38 lbs) net
