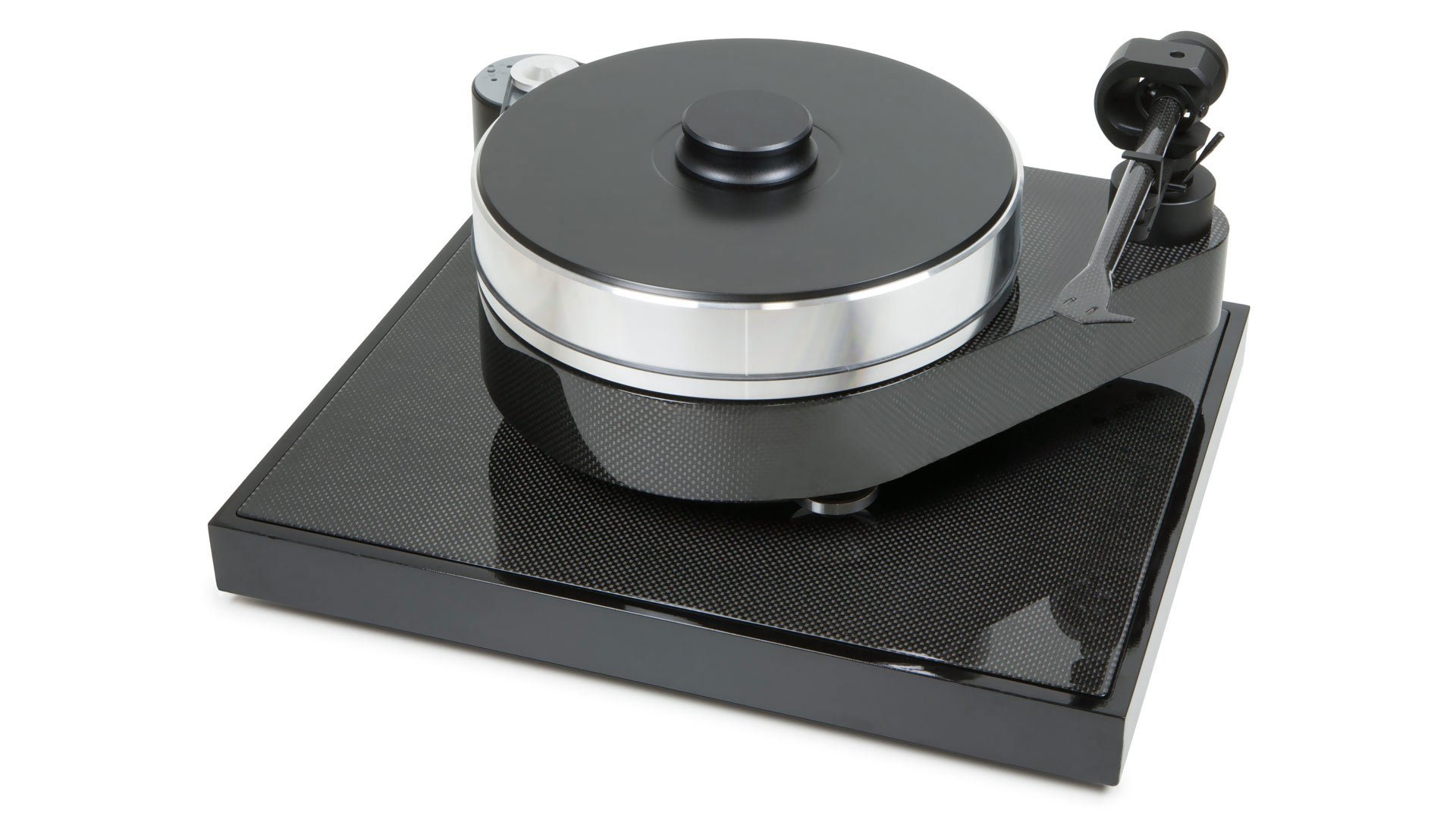

RPM 10 Carbon Turntable
$5,699.00
Extensive research and development have precipitated to the most recent iteration of this truly inspired design – RPM 10 Carbon. It uses a CNC-machined MDF plinth filled with hard-resin-coated steel pellets to further increase mass and heighten the resonance-absorbing/dispersing effect of the ‘sandwich’ construction. Complex heat treatment and a carbon surface coating ensure the low resonance levels you expect from a high-end record player. The mass-loaded chassis is effectively decoupled from its surface via the included Ground it Carbon isolation platform and its magnetic feet. With opposing magnets in the feet of the both the Ground it Carbon as well as the turntable itself, RPM 10 Carbon is all but floating.
Features
- MDF plinth mass-loaded w/ steel pellets & enclosed in carbon fiber (thermally treated)
- Inverted stainless steel main bearing with ceramic ball/plate
- 10.4kg acoustically inert aluminum platter with TPE damping & integrated vinyl mat
- DC power supply, DC>AC generator feeds AC motor (Speed Box circuit)
- Electronic speed regulation & speed change
- Outboard motor w/ massive steel base
- Pre-mounted EVO 10 CC tonearm (10″ tapered 1-piece carbon armtube
- Connect it Phono E 5P>RCA cable (5-pin DIN > XLR available as an upgrade)
Specs
- Speeds: 33 & 45rpm (electronic speed change)
- Drive principle: belt drive
- Platter: 10.4kg (22.9 lbs) aluminum (300mm diameter)
- Main bearing: inverted stainless steel shaft w/ ceramic ball/plate
- Speed drift: ±0.11% (33rpm), ±0.10% (45rpm)
- Wow & flutter: ±0.01% (33rpm), ±0.01% (45rpm)
- Signal-to-noise: 73dB
- Tonearm: EVO 10 CC (10″ tapered 1-piece carbon armtube)
- Effective arm length: 254mm
- Effective arm mass: 8.5g
- Included power supply: 15V DC 1600mA
- Power consumption: 15W max, <0.3W in standby
- Turntable dimensions (WxHxD): 480 x 210 x 330mm
- Turntable dimensions (standard): 18.90 x 8.27 x 13″
- Turntable mass (weight): 22kg (48.50 lbs) net
- Platform dimensions (WxHxD): 500 x 70 x 400mm
- Platform dimensions (standard): 19.69 x 2.76 x 15.75″
- Platform mass (weight): 14.5kg (31.97 lbs) net
