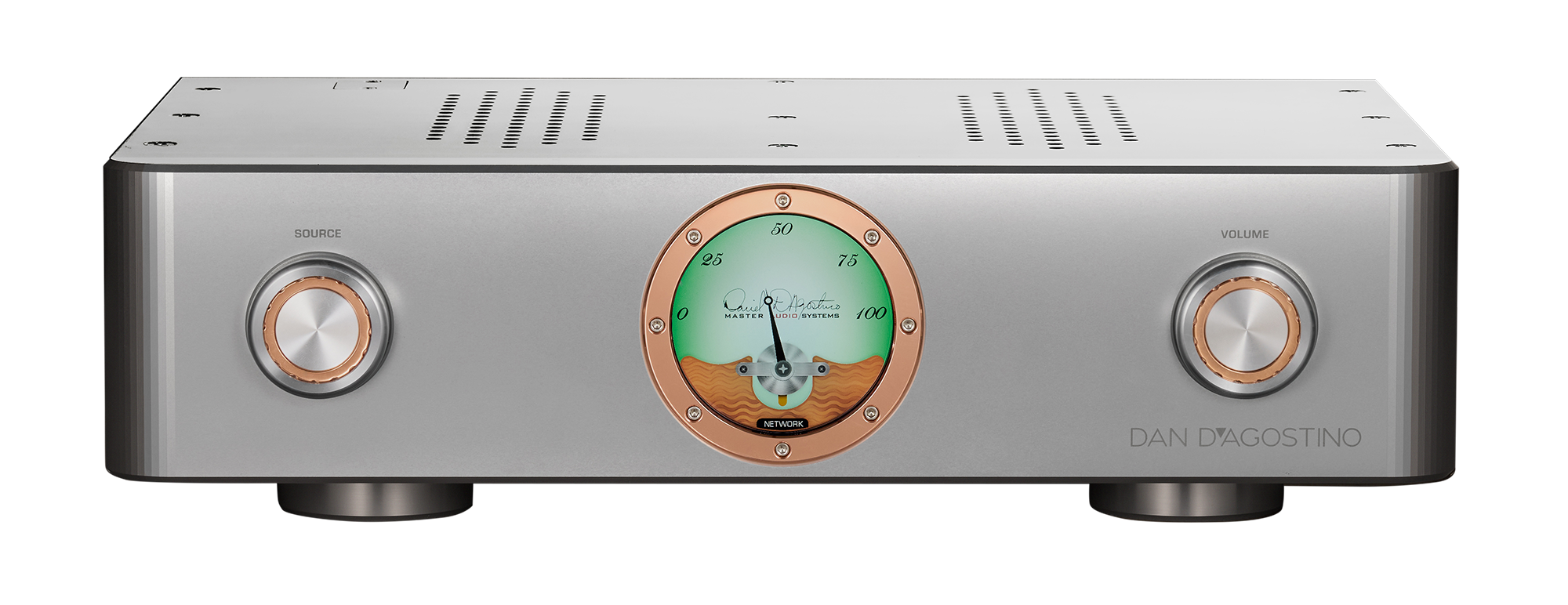

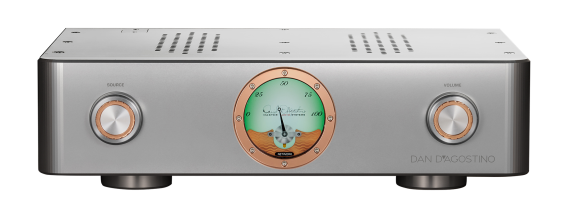

Dan D’Agostino Pendulum
At the heart of the Pendulum Integrated Amplifier lies the ingeniously re-engineered JFET input circuit topology, derived from the acclaimed Momentum C2 Preamplifier. This innovative technology upgrades the performance and precision of the entire platform, guaranteeing an immersive listening experience that transcends expectations from a component its size.
Seamless integration with a variety of audio sources is key to the Pendulum’s versatility. Analog connections include one single-ended input for turntable use and three balanced inputs, one with theater pass-through. Balanced preamplifier outputs allow for effortless integration of subwoofer(s), providing maximum flexibility to tailor your sound experience. Additionally, an optional moving-coil phono module accommodates turntable playback, catering to vinyl enthusiasts with exceptional performance.
The Pendulum Integrated Amplifier can be optionally equipped with a comprehensive suite of digital connections, ensuring seamless integration with modern audio sources and systems. Featuring optical and both RJ45 and Wi-Fi network connections, it offers unparalleled connectivity options. Notably, it is the first D’Agostino component to include an HDMI input with eARC functionality, simplifying integration into home entertainment systems.
With a Bluetooth-enabled remote control housed in Delrin®, the Pendulum Integrated Amplifier offers intuitive control over unit functions and settings.
Frequency Response
20 Hz to 20 kHz, ±0.1 dB
Signal-to-Noise Ratio
.015% @ 1 kHz, 120 W per channel @ 8Ω
Input Impedance
1 MΩ
Output Power (per Channel)
120 W @ 8Ω / 240 W @ 4Ω
Output Impedance
0.1Ω
Analog Inputs
3 pair balanced XLR stereo;1 pair unbalanced RCA stereo
Digital Inputs (with optional DSM)
1 each Optical; RJ45 Ethernet; Wi-Fi; HDMI with eARC
Phono Loading (with optional Phonostage)
47 kΩ, 1 kΩ, 500Ω, 250Ω, 100Ω, 50Ω
Phono Gain
60 dB
Outputs
1 pair balanced XLR stereo; ¼-inch headphone;2 pair binding posts
Control Protocol
RS-232
Dimensions (WHD)
17.0 x 4.65 x 14.0 in / 43.2 x 11.8 x 36.6 cm
Weight
35 lb / 19.5 kg
Finish
Silver or Black
