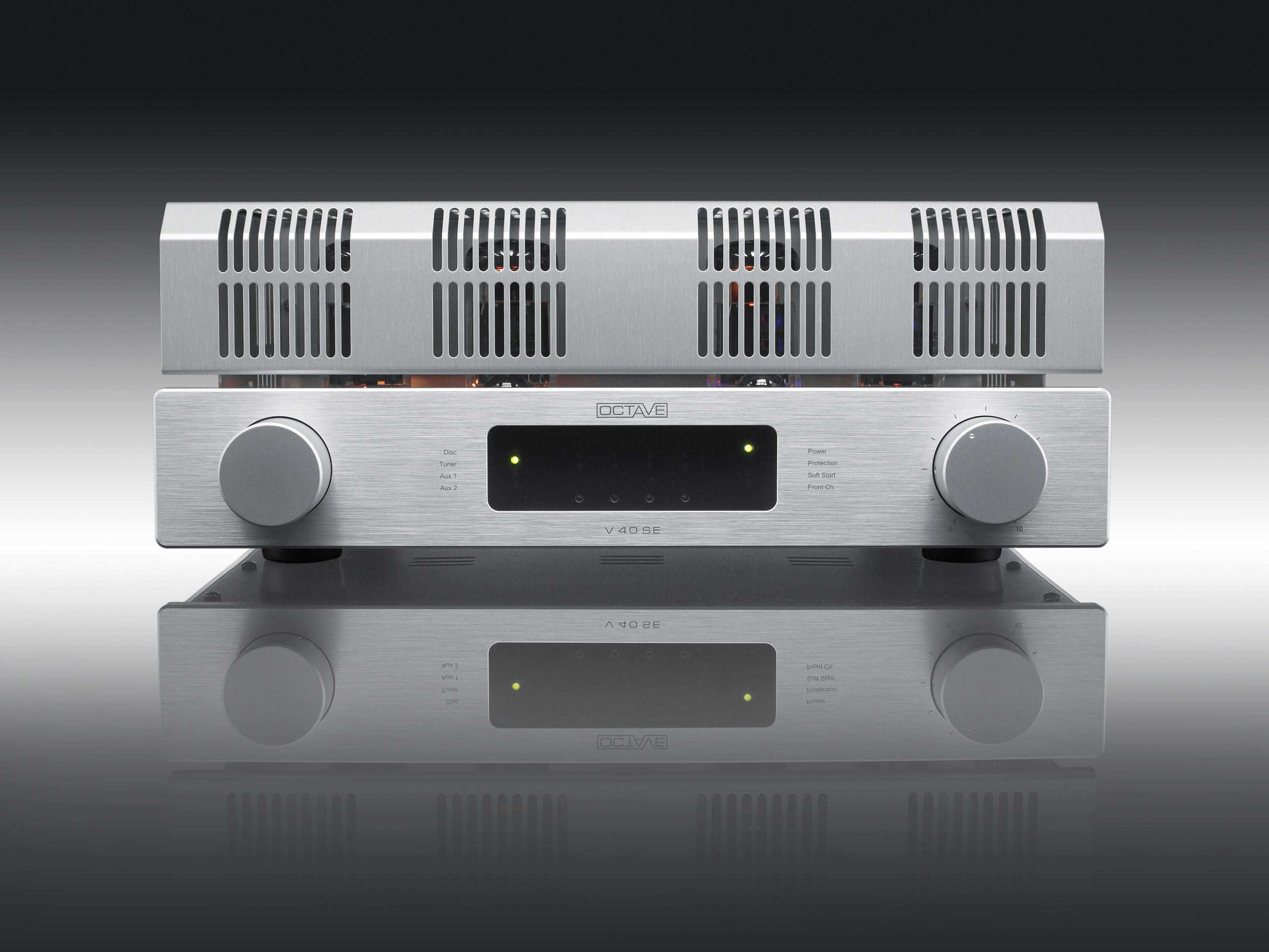

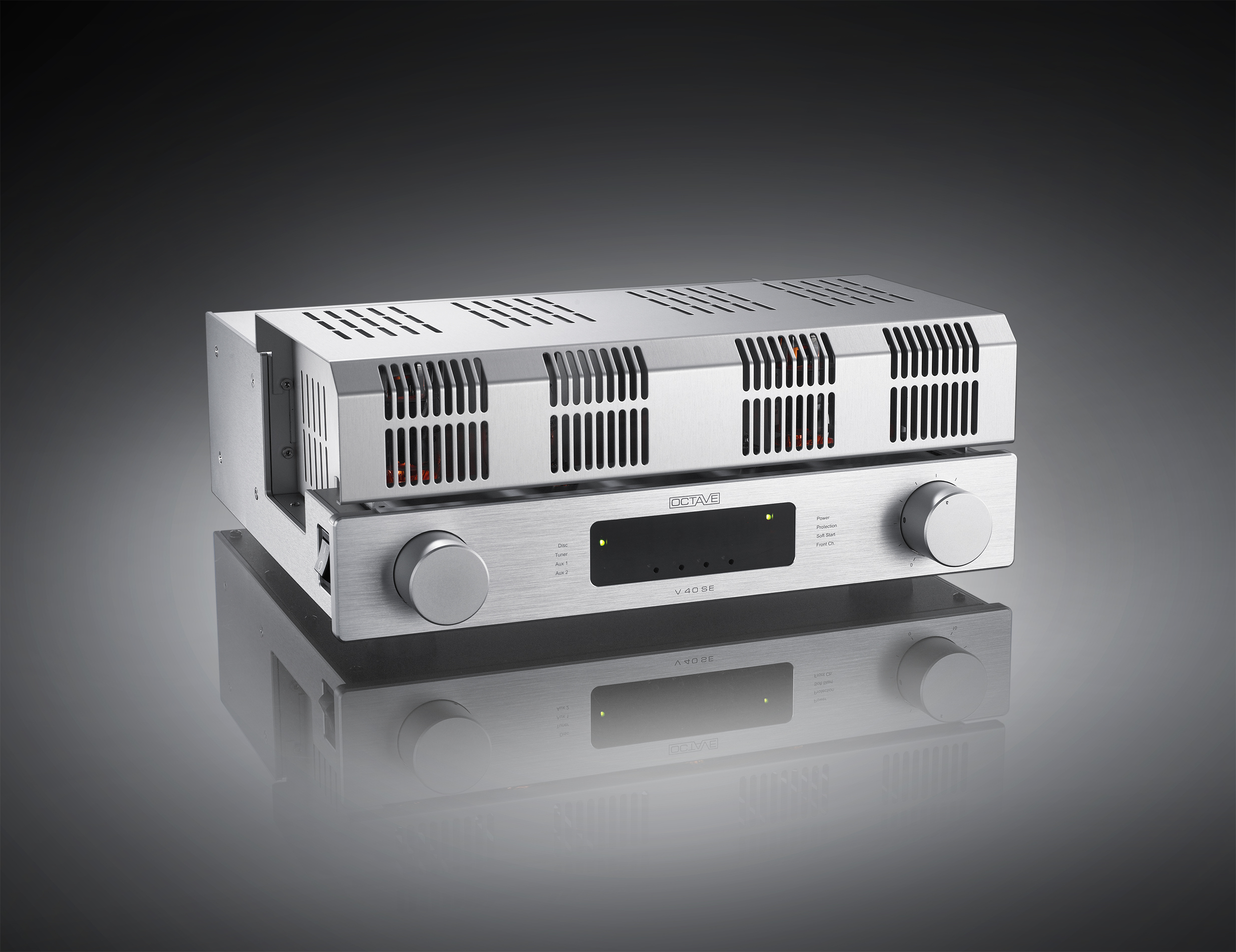

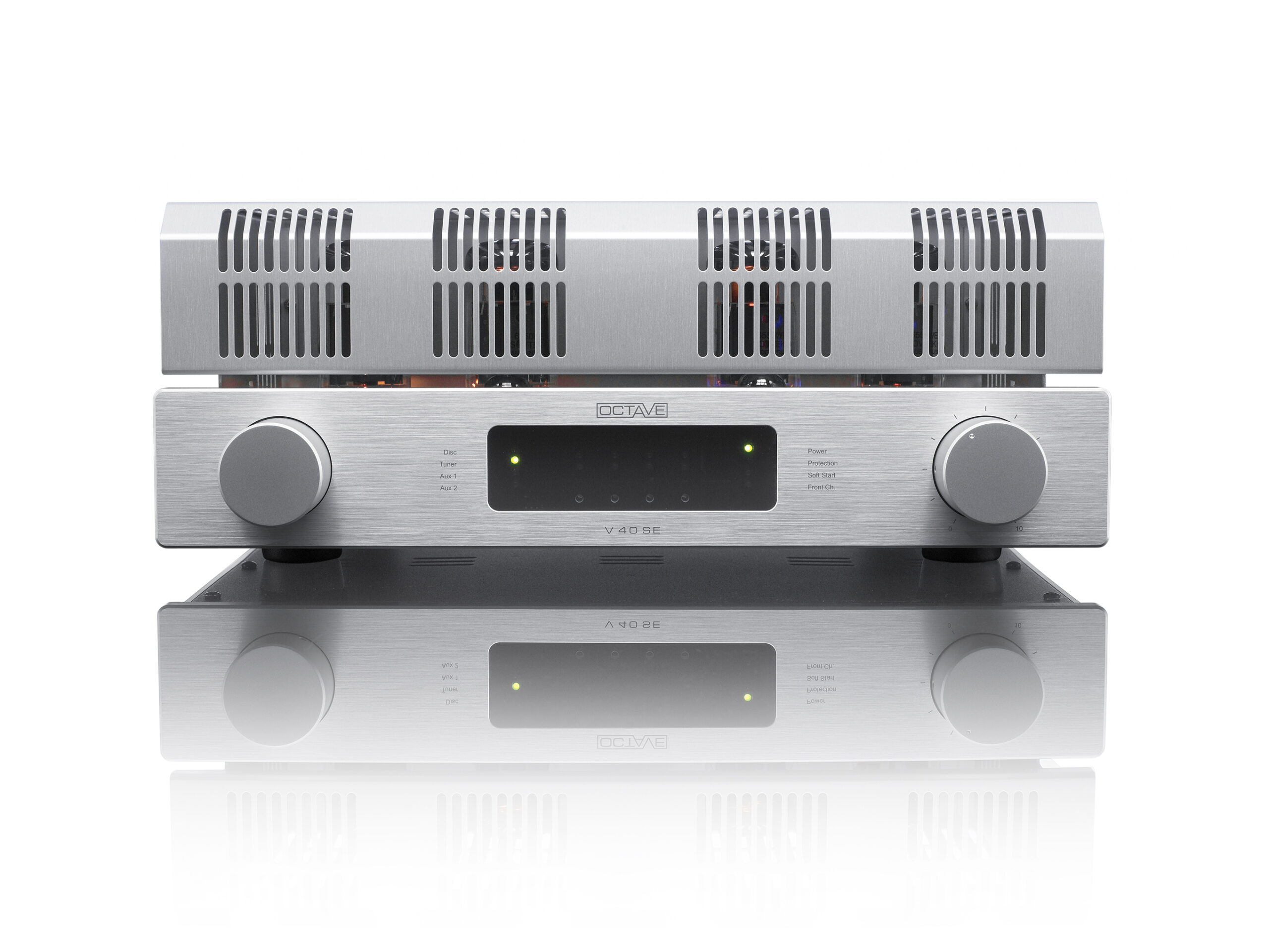

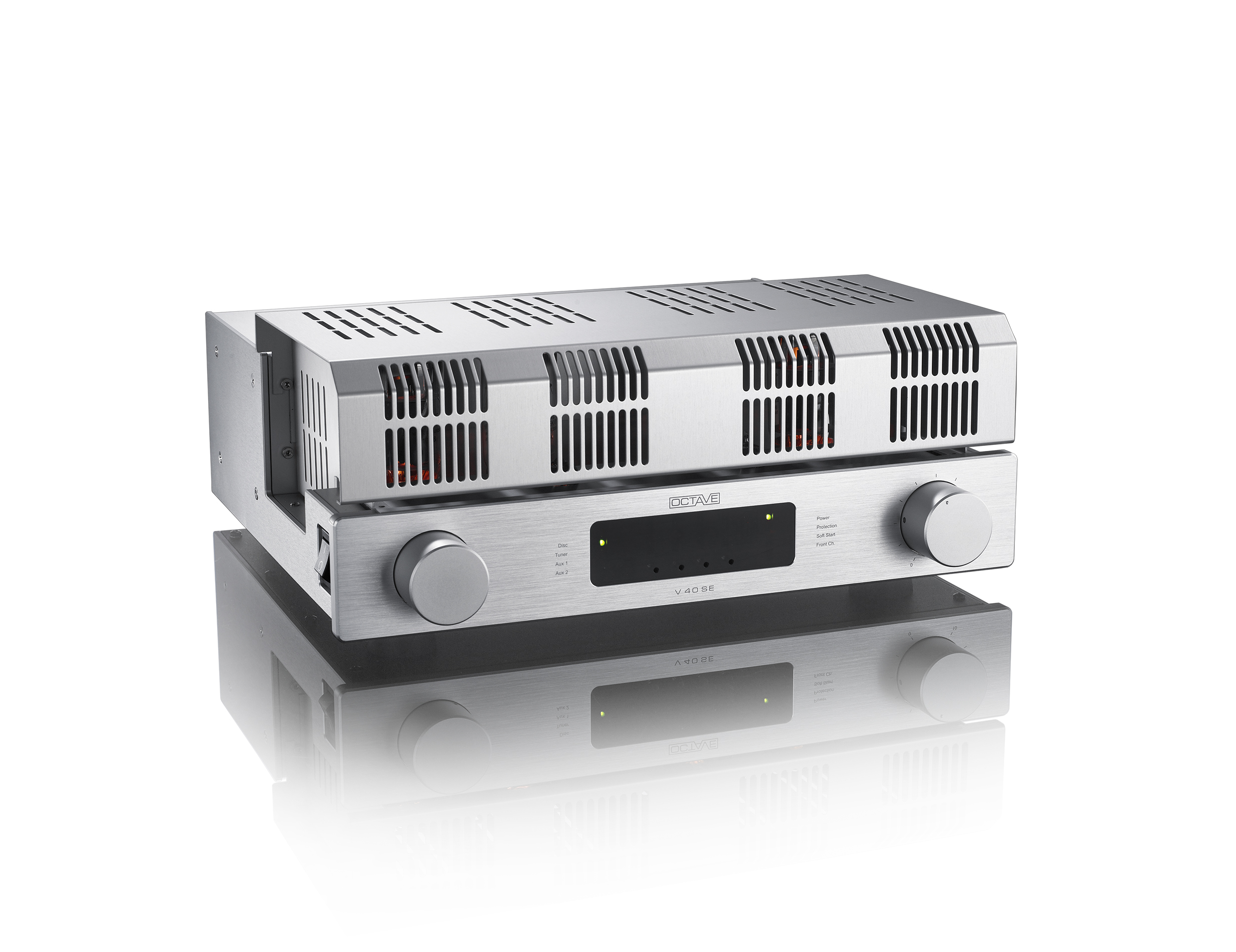

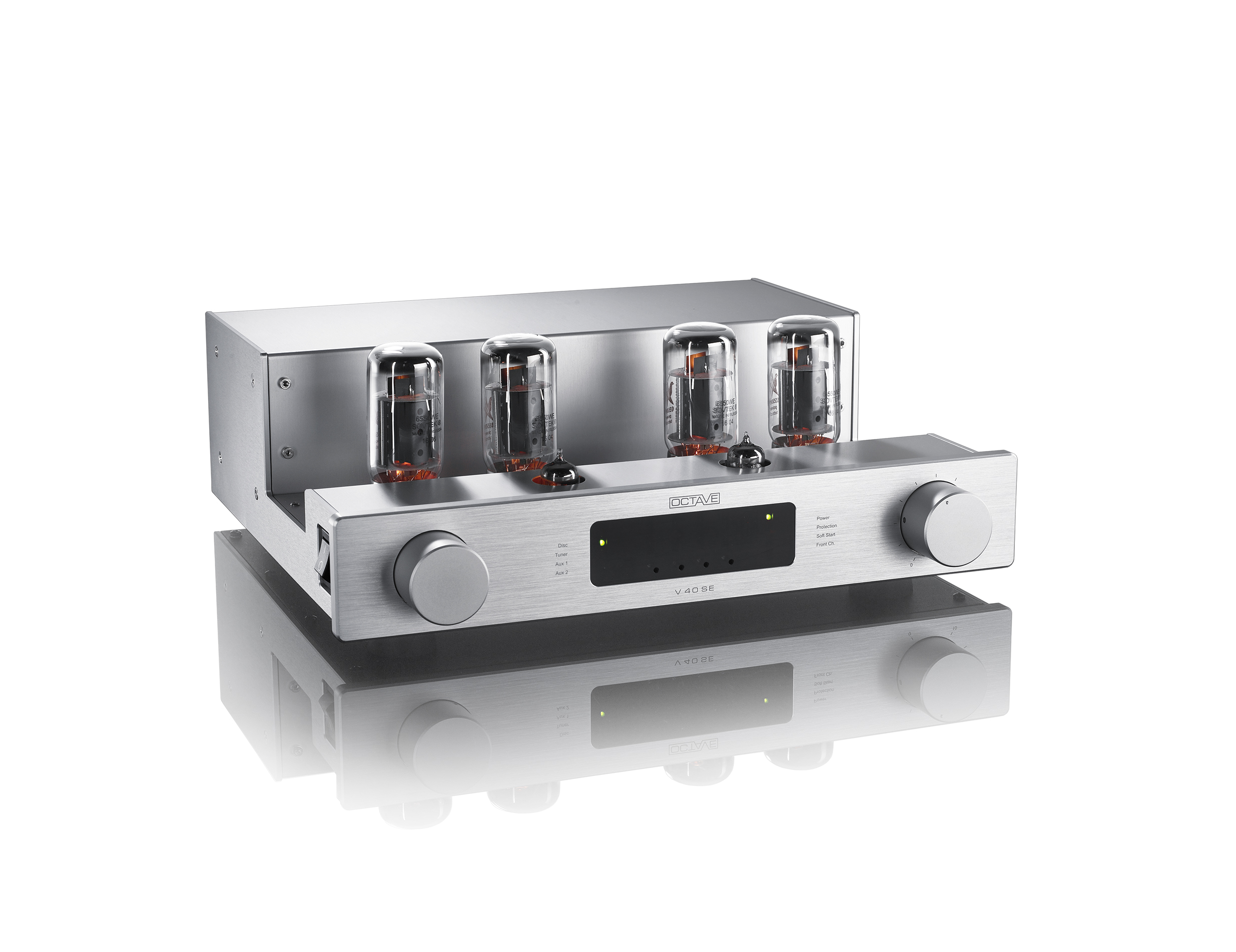

OCTAVE V40 SE Integrated Amplifier
The V 40 SE is a line level integrated amplifier with 2 x 40 W peak output power. He is a further development and direct descendant of the successful V 40 and V 50 amplifier models. His powerful, clear bass fundamentals and his captivating resolution in the high frequencies win much respect.
His unique features lift the V 40 SE into the 21st Century, while his performance earned him the rare “Stereoplay Highlight” (issue 07-2009), a prestigious award bestowed by the German high-end audio magazine Stereoplay.

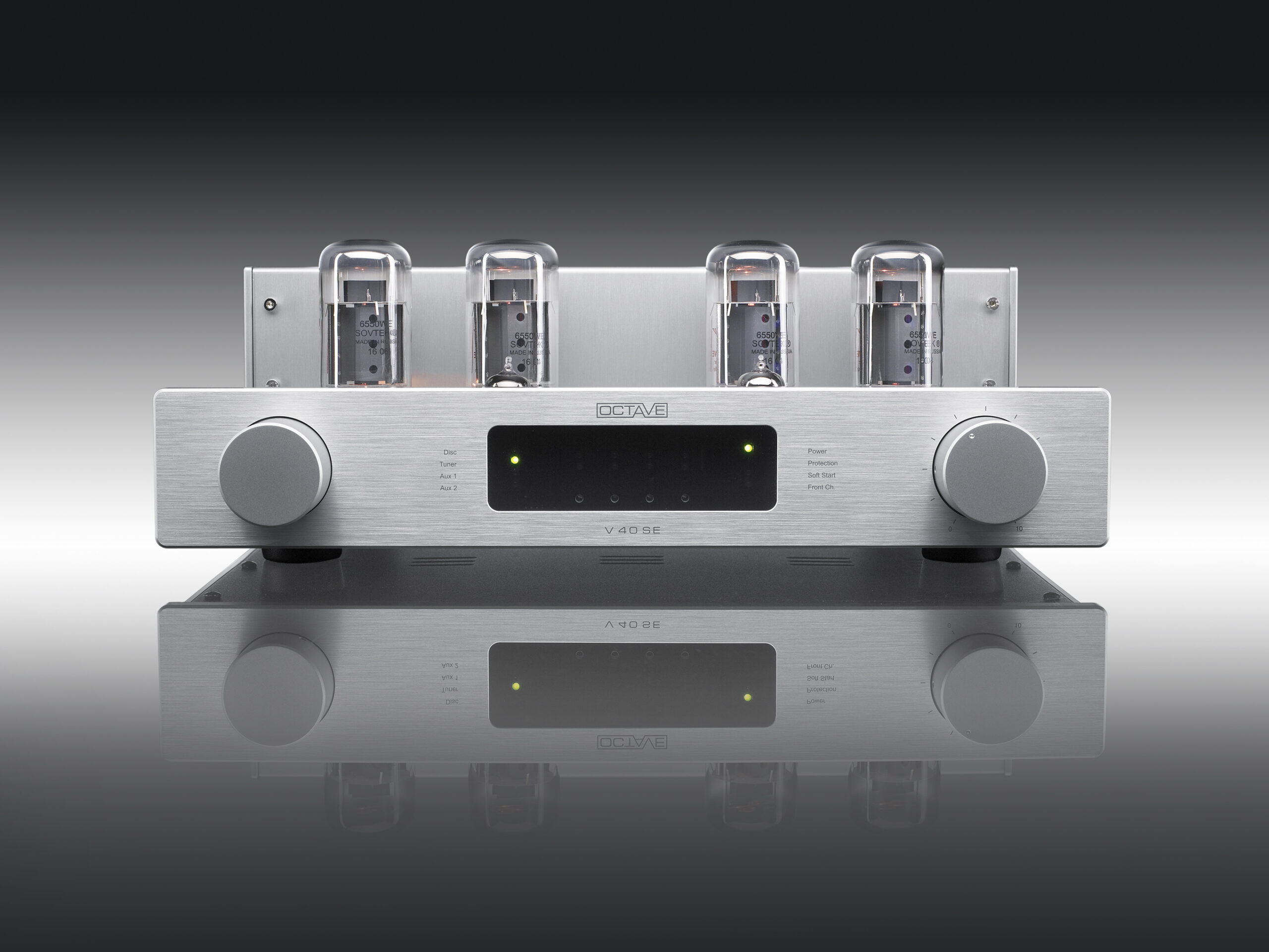

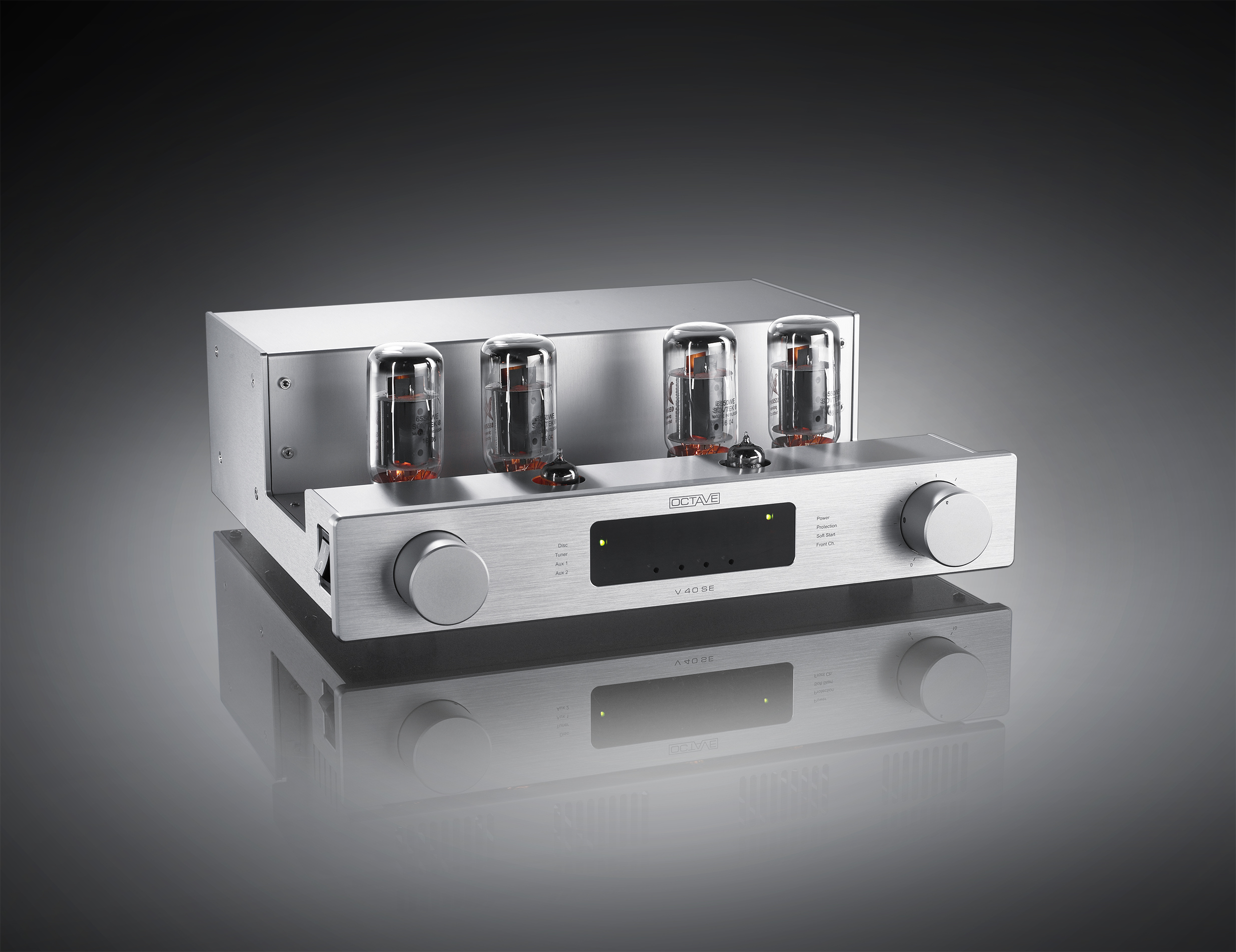

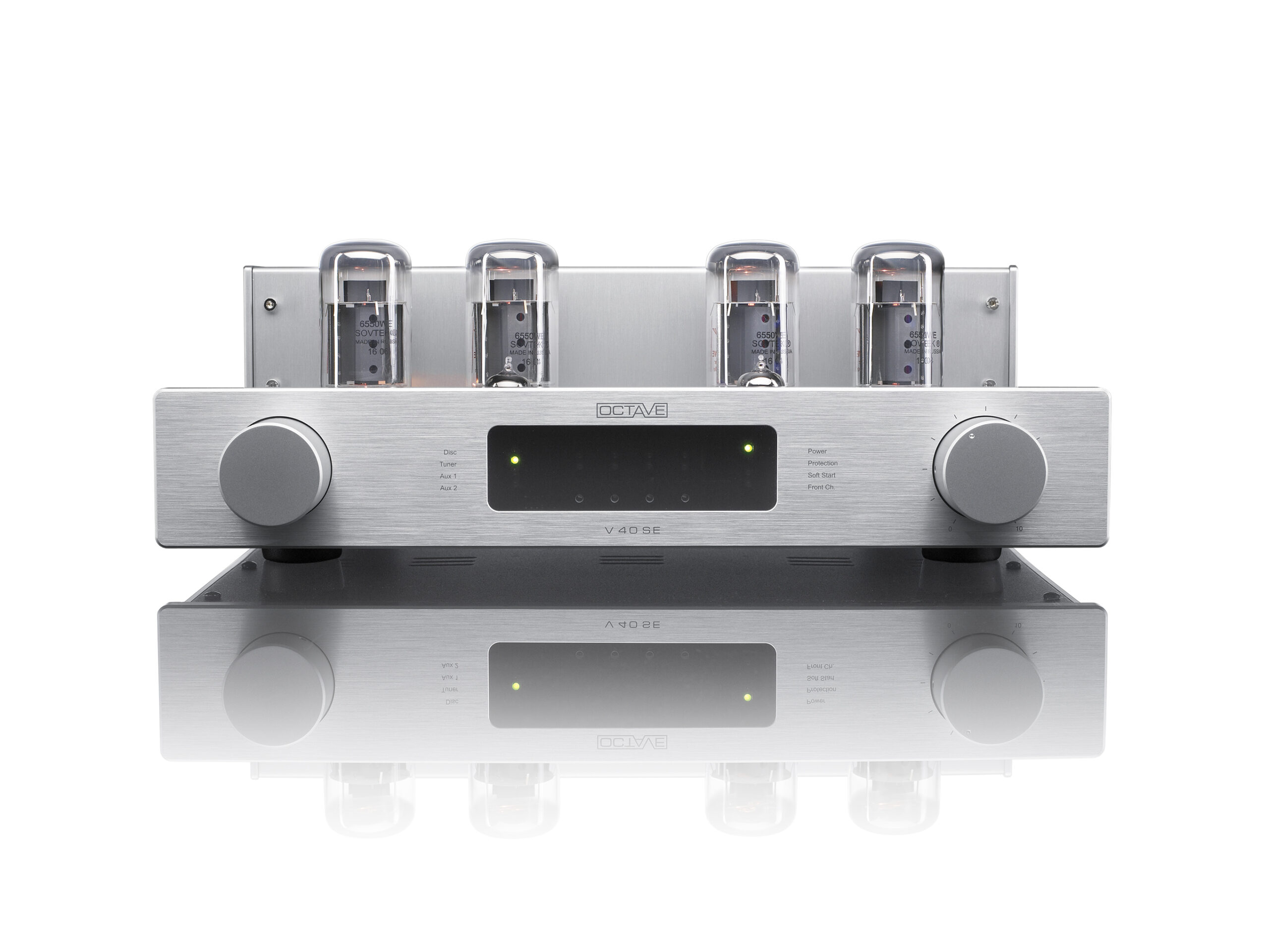

The V 40 SE output stage consists of two power pentodes (Type 6550 JJ) for each channel. Due to the BIAS Control and Monitoring System, the use of other pin-compatible output tubes is possible to match the amplifier to personal taste, or to benefit from new or improved tubes.
Like all OCTAVE amps the V 40 SE is based on the enhanced pentode configuration. This configuration ensures the absolute stability of the amplifier against the unstable impedance of the loudspeaker. Impedance mismatch is without consequence and the V 40 SE is stable down to a 2 ohms load.. An important contributor to this stability is the single impedance output transformer.
The V 40 SE is the perfect amp for speakers with an average efficiency rating. But not only is the low impedance capability an advantage, with his exceptional Signal-to-Noise ratio of –110dB / Full Power he is also an ideal partner for high efficiency loudspeakers.
| Basic model | V 40 SE Line |
| Design | Silver or Black |
| Tube Configuration | 4 x 6550 JJ |

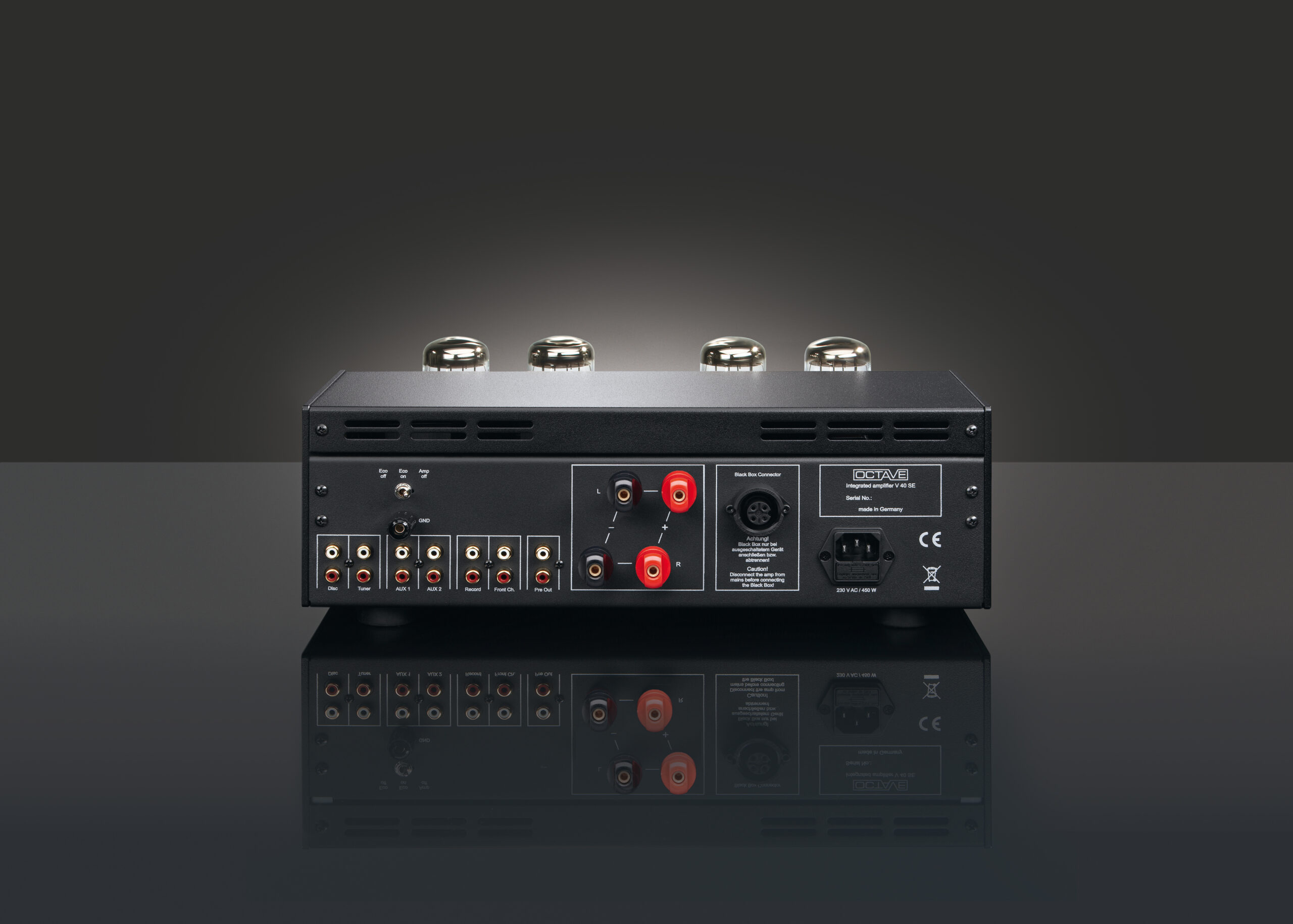

| Inputs | 5 x RCA (including one home theatre bypass input) |
| Outputs | 1 x RCA record output / 1 x regulated preamplifier output / 1 x loudspeaker output |
| Dimensions | 408 x 159 x 490 mm (W x H x D) |
| Weight | 18.0 kg |
| Full metal remote control | Volume control |
| Eco mode | Power saving mode |
| Bias control | Bias current control |
| Adjustable Pre-Out | Preamp output RCA |
| HT Bypass | Bypass-function for multichannel/home cinema |
| Protection System | Soft Start; Protection circuit for device and output tubes |
| Output power | 40 W RMS, 50 W / 4 ohms |
| Frequency response | 20 Hz – 70 kHz |
| Total harmonic distortion | < 0.1 % @ 10 Watt into 4 ohms |
| Signal-to-noise ratio | -100 dB / 40W |
| Amplification | 38 dB |
