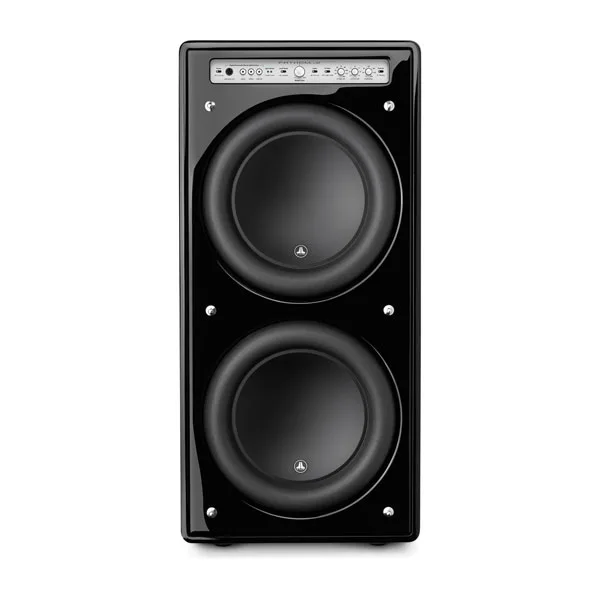

JL Audio Fathom v2 Powered Subwoofer
$4,000.00
These subwoofers are ideal for larger spaces, thanks to their higher efficiency and power output. The combination of ultralong throw drivers and a very powerful switching amplifier results in jaw-dropping performance capabilities at any listening level.
Description
| SIZES | 10″/12″/Dual 12″/13.5″ |
|---|---|
| PHYSICAL DIMENSIONS (HEIGHT) | 10″: 15.64″ (397 mm) 12″: 18.5″ (470 mm) Dual 12″: 31.96″ (812 mm) 13.5″: 19.25″ (489 mm) |
| PHYSICAL DIMENSIONS (WIDTH) | 10″: 12.92″ (328 mm) 12″: 15.0625″ (384 mm) Dual 12″: 14.92″ (379 mm) 13.5″: 16.50″ (419 mm) |
| PHYSICAL DIMENSIONS (DEPTH) | 10″: 17.27″ (439 mm) 12″: 17.75″ (451 mm) Dual 12″: 20.39″ (518 mm) 13.5″: 19.25″ (489 mm) |
| WEIGHT | 10″: 69 lbs (31 kg)
12″: 117 lbs (53 kg) |
| LIGHT MODES | off, on or dim |
| RECOMMENDED AMPLIFIER POWER (RMS) | 10″: 1100 W short term 12″: 1800 W short-term Dual 12″: 3600 W short-term 13.5″: 3000 W short-term |
| FREQUENCY RESPONSE (ANECHOIC) | 10″: 27-111 Hz (±1.5dB) 12″: 21-119 Hz (±1.5dB) Dual 12″: 20-97 Hz (±1.5dB) 13.5″: 20-86 Hz (±1.5dB) |
| FREQUENCY RESPONSE (ANECHOIC, -3DB) | 10″: 25 Hz/120 Hz 12″: 19 Hz/150 Hz Dual 12″: 19 Hz/110 Hz 13.5″: 18 Hz/127 Hz |
| FREQUENCY RESPONSE (ANECHOIC, -10DB) | 10″: 19 Hz/155 Hz 12″: 17 Hz/167 Hz Dual 12″: 15 Hz/157 Hz 13.5″: 16 Hz/154 Hz |
| ENCLOSURE TYPE | Sealed |
| ENCLOSURE FINISH | Black gloss |
| GRILLE(S) INCLUDED | |
| POWER MODES | off, on or automatic (signal-sensing) |
| WARRANTY | 3 years |
Signal Processing |
|
| UNBALANCED INPUTS | Stereo or mono (two RCA jacks) |
|---|---|
| BALANCED INPUTS | Stereo or mono (two female XLR jacks) |
| INPUT GROUNDING | Isolated or grounded |
| INPUT MODES | Master or slave |
| LEVEL CONTROL | Reference (fixed gain) or variable, from full mute to +15dB over reference gain |
| FILTER MODE(S) | Low-pass |
| FILTER SLOPE(S) | 12/24 dB/octave |
| FILTER FREQUENCY RANGE | 30 Hz-130 Hz |
| FILTER DEFEAT FUNCTION | |
| POLARITY | 0 or 180º |
| PHASE | Variable, 0-280º |
| EXTREME LOW FREQUENCY (E.L.F.) TRIM | Variable, -12 dB to +3 dB at 28 Hz |
| OUTPUT TO SLAVE | Balanced (one male XLR jack) |
| CALIBRATION MODE | Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone |
Parameters |
|
| EFFECTIVE PISTON AREA (SD) | 10″: 60 in² (0.0387 m²) 12″: 84 in² (0.0542 m²) Dual 12″: 168 in² (0.1084 m²) 13.5″: 107.35 in² (0.0693 m²) |
|---|---|
| EFFECTIVE DISPLACEMENT | 10″: 160 cu in (2.6 L) 12″: 287 cu in (4.7 L) Dual 12″: 574 cu in (9.4 L) 13.5″: 386 cu in (6.3 L) |
