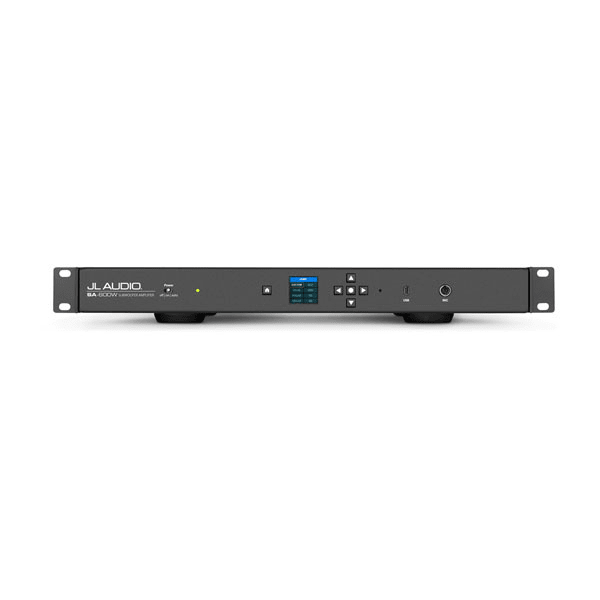

JL Audio Fathom Home Amplifier
$1,350.00
Equipped with versatile features and a robust power amplifier section, this amplifier is an ideal choice to drive a custom subwoofer system in home theater and home audio systems.
Description
Features
Specifications
Description
| 12 V TRIGGER OUTPUT CAPACITY | 150 mA (1/8″ (3.5 mm) mini jack) |
|---|---|
| RECOMMENDED AMPLIFIER POWER (RMS) | 600 W x 1 at 3 Ω 450 W x 1 at 4 Ω 300 W x 1 at 6 Ω 225 W x 1 at 8 Ω |
| POWER MODES | off, on or automatic (signal-sensing or 12V trigger) |
| WARRANTY | 3 years |
Signal Processing |
|
| UNBALANCED INPUTS | Stereo or mono (two RCA jacks – Input Impedance of 50k Ohms) |
|---|---|
| SPEAKER/HIGH-LEVEL INPUTS | Stereo or mono (removable plug – Input Impedance of 4.4k Ohms) |
| INPUT GROUNDING | Isolated or grounded |
| INPUT MODES | None |
| LEVEL CONTROL | Reference (fixed gain) or Variable from -50dB to +15dB over reference gain (0.5 dB increments) |
| FILTER MODE(S) | Low-pass, with tracking High-pass Outputs |
| FILTER SLOPE(S) | 12/24 dB/octave |
| FILTER FREQUENCY RANGE | 30 Hz-130.1 Hz |
| FILTER DEFEAT FUNCTION | |
| POLARITY | 0 or 180º |
| DELAY (PHASE) | Variable from 0-25 ms (0.1 ms increments, Sub and HP outputs) |
| EXTREME LOW FREQUENCY (E.L.F.) TRIM | Variable, -12 dB to +3 dB at 25 Hz (0.5 dB increments) |
| LINE OUTPUTS | Stereo or mono (two RCA jacks – Pass-through or High-pass) |
| SUBWOOFER OUTPUTS | Neutrik speakOn® 2-Pole Connectors (uses Neutrik part: NL2FX) |
| CALIBRATION MODE | Digital Automatic Room Optimization (D.A.R.O.), requires microphone (sold separately) |
| EQUALIZER BANDS | 3 |
| EQUALIZER FREQUENCY RANGE | 20 to 160 Hz (1 Hz increments) |
| EQUALIZER GAIN RANGE | -12 dB to +12 dB (0.2 dB increments) |
| EQUALIZER Q RANGE | 0.7 to 5.0 (0.1 increments) |
Amplifier Specifications |
|
| WIDTH (W) | 16.84″ (428 mm) |
|---|---|
| HEIGHT (H) | 1.75″ (44 mm) |
| DEPTH (D) | 13.63″ (346 mm) |
| NET WEIGHT (EACH) | 13.5 lbs (6.12 kg) |
