JL Audio Fathom Custom Theater Subwoofer
$2,600.00
Born from our revolutionary Fathom in-wall subwoofer system, these subwoofers are designed to deliver uncompromising bass performance for virtually any custom-integrated application.

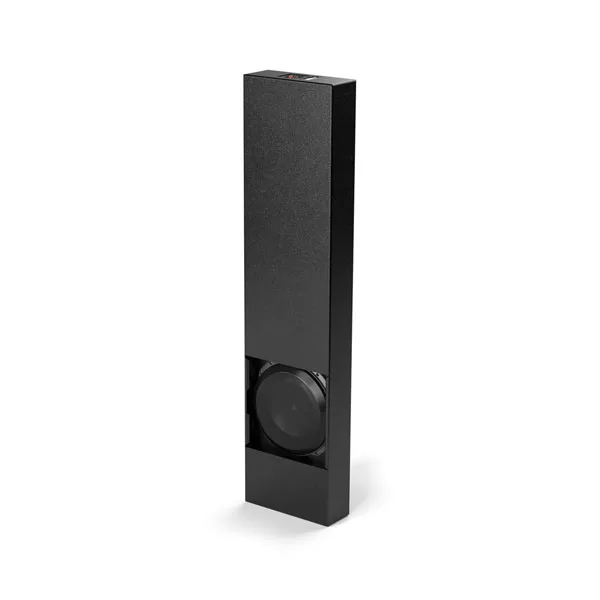

Shown is a single driver and 5.25 enclosure depth
Description
| SIZES | 13.5″/Dual 13.5″ (driver) 5.25″/5.75″/9″/14″ (enclosure depth) |
|---|---|
| PHYSICAL DIMENSIONS (HEIGHT) | 13.5″ (5.25″ depth): 58.75″ (1,492 mm) 13.5″ (5.75″ depth): 23.94″ (608 mm) 13.5″ (9″ depth): 30.69″ (780 mm) Dual 13.5″ (9″ depth): 59.20″ (1,504 mm) 13.5″ (14″ depth): 19.56″ (497 mm) |
| PHYSICAL DIMENSIONS (WIDTH) | 13.5″ (5.25″ depth): 14″ (356 mm) 13.5″ (5.75″ depth): 23.94″ (608 mm) 13.5″ (9″ depth): 14″ (356 mm) Dual 13.5″ (9″ depth): 14″ (356 mm) 13.5″ (14″ depth): 14″ (356 mm) |
| PHYSICAL DIMENSIONS (DEPTH) | 13.5″ (5.25″ depth): 5.25″ (133 mm) 13.5″ (5.75″ depth): 5.75″ (146 mm) 13.5″ (9″ depth): 9″ (229 mm) Dual 13.5″ (9″ depth): 9″ (229 mm) 13.5″ (14″ depth): 14″ (356 mm) |
| CONTINUOUS POWER HANDLING (RMS) | 13.5″: 1000 W Dual 13.5″: 2000 W |
| FREQUENCY RESPONSE (ANECHOIC) | 28 Hz-117 Hz (± 1.5 dB) |
| FREQUENCY RESPONSE (ANECHOIC, -3DB) | 25 Hz/123 Hz |
| FREQUENCY RESPONSE (ANECHOIC, -10DB) | 22 Hz/150 Hz |
| ENCLOSURE TYPE | Sealed |
| ENCLOSURE FINISH | Black texture-coated |
| GRILLE(S) INCLUDED | yes |
| WARRANTY | 3 years |
Parameters |
|
| EFFECTIVE PISTON AREA (SD) | 13.5″: 98.26 in² (0.0634 m²) Dual 13.5″: 196.51 in² (0.1268 m²) |
|---|---|
| EFFECTIVE DISPLACEMENT | 13.5″: 147.3 cu in (2.41 L) Dual 13.5″: 294.6 cu in (4.82 L) |
