JL Audio E-Sub Powered Subwoofer
$2,700.00
E-Sub powered subwoofers deliver exceptional sound quality, power and value in a wide range of applications.

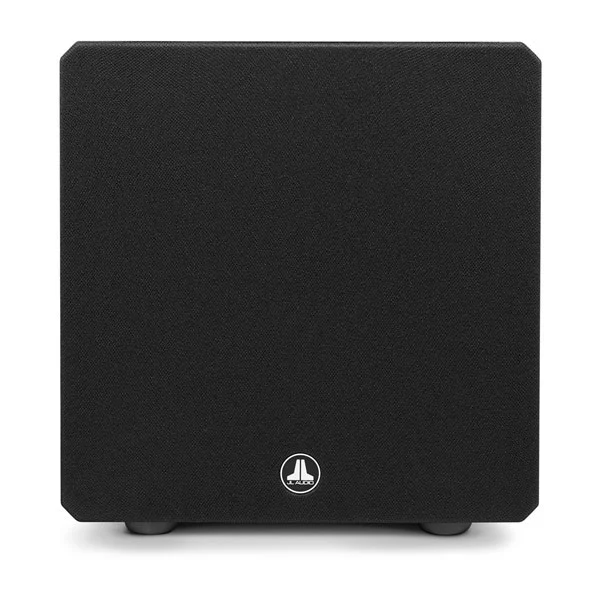

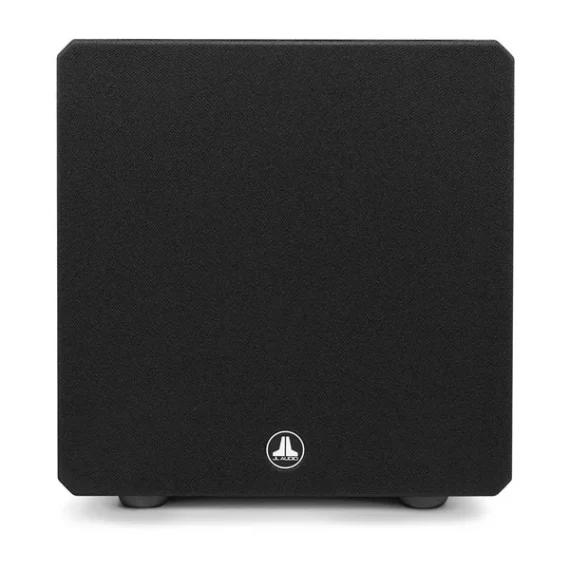

Shown here is the 12inch Gloss Black
10- OR 12-INCH SUBWOOFER SIZES
STUDIO-GRADE SIGNAL PROCESSING
UP TO 1500 WATTS OF POWER
COMPACT SEALED ENCLOSURE
REMOVABLE FABRIC GRILLE
AVAILABLE IN BLACK ASH OR GLOSS BLACK FINISHES
Description
| SIZES | 10″/12″ |
|---|---|
| PHYSICAL DIMENSIONS (HEIGHT) | 10″: 14.24″ (362 mm) 12″: 16.23″ (412 mm) |
| PHYSICAL DIMENSIONS (WIDTH) | 10″: 13.5″ (343 mm) 12″: 15.5″ (394 mm) |
| PHYSICAL DIMENSIONS (DEPTH) | 10″: 16.51″ (419 mm) 12″: 18.39″ (467 mm) |
| WEIGHT | 10″: 52.7 lbs (23.9 kg)
12″: 73.5 lbs (33.3 kg) |
| RECOMMENDED AMPLIFIER POWER (RMS) | 10″: 1200 W short-term 12″: 1500 W short-term |
| FREQUENCY RESPONSE (ANECHOIC) | 10″: 25-116 Hz (±1.5dB) 12″: 22-118 Hz (±1.5dB) |
| FREQUENCY RESPONSE (ANECHOIC, -3DB) | 10″: 23 Hz/120 Hz 12″: 21 Hz/120 Hz |
| FREQUENCY RESPONSE (ANECHOIC, -10DB) | 10″: 18 Hz/165 Hz 12″: 17 Hz/153 Hz |
| ENCLOSURE TYPE | Sealed |
| ENCLOSURE FINISH | Black ash or Black gloss |
| GRILLE(S) INCLUDED | yes |
| POWER MODES | off, on or automatic (signal-sensing) |
| WARRANTY | 3 years |
Signal Processing |
|
| UNBALANCED INPUTS | Stereo or mono (two RCA jacks) |
|---|---|
| SPEAKER/HIGH-LEVEL INPUTS | Stereo or mono (removeable plug) |
| INPUT GROUNDING | Isolated or grounded |
| LEVEL CONTROL | Variable, from full mute to +15dB over reference gain |
| FILTER MODE(S) | Low-pass |
| FILTER SLOPE(S) | 24 dB/octave |
| FILTER FREQUENCY RANGE | 25 Hz-130 Hz |
| FILTER DEFEAT FUNCTION | yes |
| POLARITY | 0 or 180º |
| PHASE | Variable, 0-280º, referenced to 80 Hz |
| LINE OUTPUTS | Stereo or mono (two RCA jacks), High-pass or Pass-through |
Parameters |
|
| EFFECTIVE PISTON AREA (SD) | 10″: 58.78 in² (0.0379 m²) 12″: 84.4 in² (0.0545 m²) |
|---|---|
| EFFECTIVE DISPLACEMENT | 10″: 131 cu in (2.1 L) 12″: 235 cu in (3.9 L) |
