JL Audio Dominion Powered Subwoofer

JL Audio Dominion Powered Subwoofer

$1,199.00

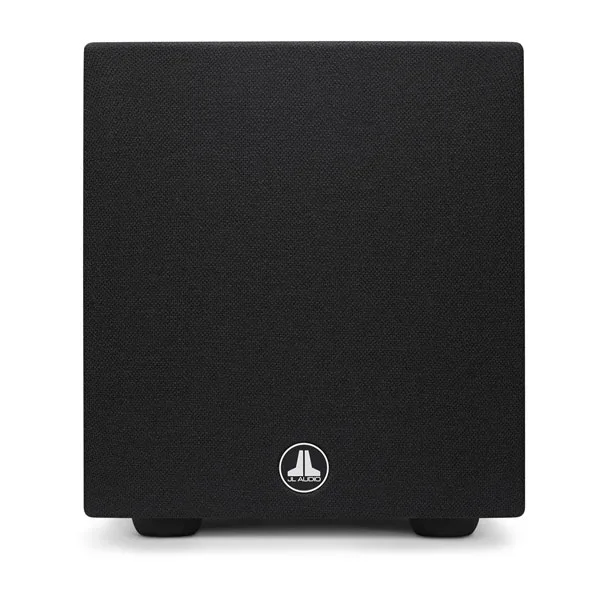

10inch Black Gloss shown

These powered subwoofers combine a state-of-the-art subwoofer and advanced Class-D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

8- OR 10-INCH SUBWOOFER SIZES

STUDIO-GRADE SIGNAL PROCESSING

500 TO 750 WATTS OF POWER

COMPACT SEALED ENCLOSURE

REMOVABLE FABRIC GRILLE

AVAILABLE IN BLACK ASH OR GLOSS BLACK FINISHES

Description

SIZES 8″/10″
PHYSICAL DIMENSIONS (HEIGHT) 8″: 11.37″ (289 mm)
10″: 13.4″ (340 mm)
PHYSICAL DIMENSIONS (WIDTH) 8″: 12″ (305 mm)
10″: 10″ (254 mm)
PHYSICAL DIMENSIONS (DEPTH) 8″: 13.23″ (336 mm)
10″: 15.86″ (403 mm)
WEIGHT 8″: 26.4 lbs (12 kg)
10″: 38.2 lbs (17.3 kg)
RECOMMENDED AMPLIFIER POWER (RMS) 8″: 500 W short-term
10″: 750 W short-term
FREQUENCY RESPONSE (ANECHOIC) 8″: 31-112 Hz (±1.5dB)
10″: 27-111 Hz (±1.5dB)
FREQUENCY RESPONSE (ANECHOIC, -3DB) 8″: 29 Hz/119 Hz
10″: 25 Hz/118 Hz
FREQUENCY RESPONSE (ANECHOIC, -10DB) 8″: 21 Hz/143 Hz
10″: 21 Hz/143 Hz
ENCLOSURE TYPE Sealed
ENCLOSURE FINISH Black ash or Black gloss
GRILLE(S) INCLUDED yes
POWER MODES Automatic (signal-sensing)
WARRANTY 3 years

Signal Processing
UNBALANCED INPUTS Stereo or mono (two RCA jacks)
SPEAKER/HIGH-LEVEL INPUTS Stereo or mono (removeable plug)
INPUT GROUNDING Isolated or grounded
LEVEL CONTROL Variable, from full mute to +15dB over reference gain
FILTER MODE(S) Low-pass
FILTER SLOPE(S) 24 dB/octave
FILTER FREQUENCY RANGE 25 Hz-130 Hz
FILTER DEFEAT FUNCTION yes
POLARITY 0 or 180º
PHASE Variable, 0 – 280º, referenced to 80 Hz

Parameters
EFFECTIVE PISTON AREA (SD) 8″: 32.18 in² (0.0208 m²)
10″: 48.71 in² (0.0314 m²)
EFFECTIVE DISPLACEMENT 8″: 80 cu in (1.3 L)
10″: 127 cu in (2.08 L)
